Briggs & Stratton 020213-0 - 2,550 PSI Troy-Bilt

Model: 020213-0 - 2,550 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

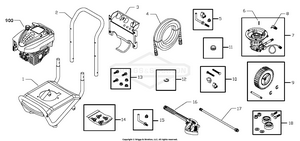

Main Unit

...
...
1
ASSY, Base BS-201177GS
...
2
HANDLE BS-P195428GS
...
3
KIT, Billboard with Clips BS-201176GS
...
Clips, Tree BS-195964GS
...
4
HOSE ASSEMBLY BS-84006753
...
5
KIT, Hook, Handle BS-194264GS
...
6
KEY BS-23139GS
...
7
PUMP (see "Pump") BS-207365GS
...
8
VALVE, Thermal Relief BS-208673GS
...
9
KIT, Wheel BS-200730GS
...
10
KIT, Handle Connector BS-B2203GS
...
11
GROMMET BS-30809GS
...
12
RETAINER, RING, 1/2 BS-703976
...
13
KIT, Pump Mounting Hardware BS-192645GS
...
14
KIT, Nozzles BS-200557GS
...
Nozzle, QC, Red BS-195983AEGS
...
Nozzle, QC, White BS-195983RGS
...
NOZZLE-QC YELLOW BS-195983XGS
...
Nozzle, Soap BS-198841GS
...
15
KIT, Hook, Base BS-192309GS
...
16
GUN BS-84003228
...
17
ASSY, Extnsn, QC BS-190779GS
...
18
KIT, Vibration Mount BS-192310GS
...
MANUAL, Operator's Not Illustrated BS-201019GS
...
MANUAL, Engine Not Illustrated BS-MS6847
...
TAG-WARNING Not Illustrated BS-705752
...
AXLE Not Illustrated BS-192006GS
...
BOTTLE, Oil Not Illustrated BS-100005
...
GOGGLES Not Illustrated BS-87815GS
...
Front Draw Bar w/Spindles-RH Side Optional Accessories BS-100126
...
KIT, O-Ring Optional Accessories BS-100516GS
...
PUMP SAVER Optional Accessories BS-6039

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
A
KIT, UNLOADER STEM Service kits include all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kits include all parts shown within the box. BS-190632GS
...
C
FITTING Service kits include all parts shown within the box. BS-201497GS
...
D
KIT, HEAD ALUMINIUM Service kits include all parts shown within the box. BS-203631GS
...
E
KIT, CHECK VALVES Service kits include all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kits include all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kits include all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kits include all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kits include all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kits include all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kits include all parts shown within the box. BS-193972GS
...
FILTER, Inlet Not Illustrated BS-B2384GS
...
OIL BOTTLE Optional Accessories BS-190586GS
...
FILTER, Inlet, Bag of 10 Optional Accessories BS-186452GS
...
...
...
