Briggs & Stratton 020207-1 - 2,450 PSI Troy-Bilt

Model: 020207-1 - 2,450 PSI Troy-Bilt

Save
 Part Not Listed?Part Not Listed?
product name

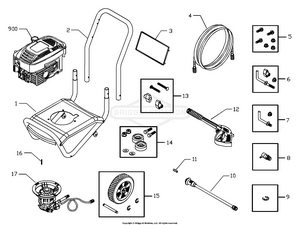

Main Unit

...
...
1
BASE BS-192419GS
...
2
HANDLE BS-P191874GS
...
3
ASSY, Billboard BS-194613GS
...
4
HOSE BS-190249GS
...
5
KIT, Pump Mounting Hardware BS-192645GS
...
6
KIT, Hook, Handle BS-194264GS
...
7
KIT, Hook, Base BS-192309GS
...
8
VALVE, Thermal Relief BS-208673GS
...
9
RETAINER, RING, 1/2 BS-703976
...
10
WAND-ADJUSTABLE BS-205015CGS
...
11
ORIFICE BS-21760GS
...
12
GUN BS-B1862BGS
...
13
KIT, Handle Connector BS-B2203GS
...
14
KIT,Vibration Mount BS-192310GS
...
15
KIT,Wheel BS-194255GS
...
16
KEY BS-23139GS
...
17
PUMP (see "Pump") BS-207365GS
...
900
ENGINE BS-~NSP
...
MANUAL, Owner's Not Illustrated BS-194620GS
...
MANUAL, Engine Not Illustrated BS-MS6847
...
TAG-WARNING Not Illustrated BS-705752
...
BOTTLE, Oil Not Illustrated BS-100005

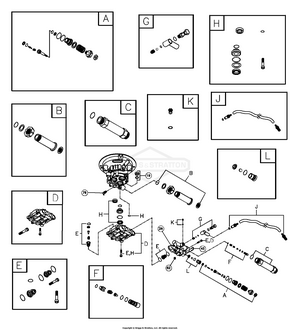

Pump

...
...
19
CAP, Oil, 5.5 - 6.5 NM BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP, 1/8 BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190586GS
...
A
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190594GS
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
D
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit includes all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit includes all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit includes all parts shown within the box. BS-193972GS
...
...
...
