Briggs & Stratton 020201-0 - 2,500 PSI Craftsman

Model: 020201-0 - 2,500 PSI

Save
 Part Not Listed?Part Not Listed?
product name

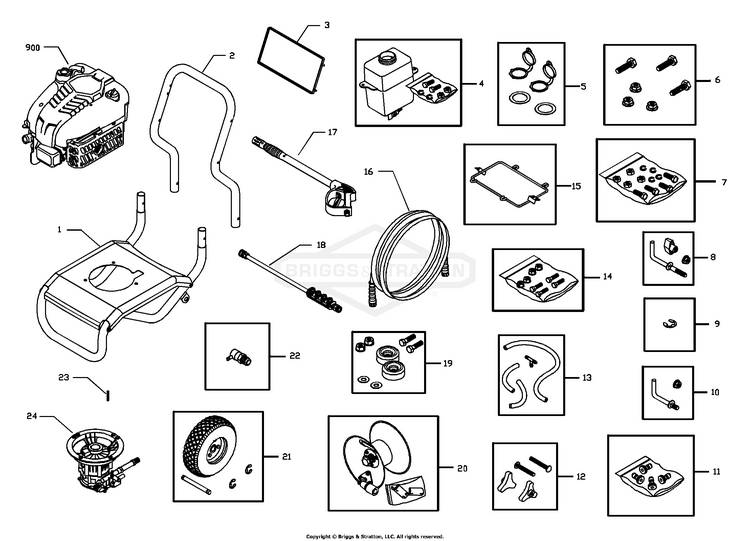

Main Unit

...
...
1
BASE BS-194667GS
...
2
HANDLE BS-M194719GS
...
3
ASSY, Billboard BS-194316GS
...
4
KIT, Chemical Tank BS-194662GS
...
5
KIT, Chem Caps with Tags BS-194663GS
...
6
KIT, Engine/Pump Mounting Hardware BS-192645GS
...
7
KIT, Chem Tank Hardware BS-194664GS
...
8
KIT, Hook, Handle BS-194264GS
...
9
E-RING BS-703977
...
10
KIT, Hook, Base BS-192309GS
...
11
KIT, Spray Tips BS-B5646GS
...
12
KIT, Handle Connector BS-B2203GS
...
13
KIT-CHEMICAL HOSE BS-707412
...
14
KIT, Wireform Hardware BS-194627GS
...
15
WIREFORM BS-194328GS
...
16
HOSE BS-190246GS
...
17
GUN BS-190049GS
...
18
ASSY, Extension BS-192199GS
...
19
KIT, Vibration Mount BS-192310GS
...
20
KIT, Hose Reel BS-192648GS
...
21
KIT, Wheel BS-192317GS
...
22
VALVE, Thermal Relief BS-208673GS
...
23
KEY BS-23139GS
...
24
PUMP (see "Pump") BS-207365GS
...
900
ENGINE BS-~NSP
...
BOTTLE, Oil Not Illustrated BS-AB3061BGS
...
MANUAL, Owners Not Illustrated BS-194320GS
...
TAG-WARNING Not Illustrated BS-705752
...
Garden Hose Quick Connect Optional Accessory Not Illustrated BS-7175187GS
...
KIT,QC,METRIC Optional Accessory Not Illustrated BS-312981GS
...
Rotating Brush Kit Optional Accessory Not Illustrated BS-7175199GS
...
25' Replacement Hose Optional Accessory Not Illustrated BS-190249GS
...
O Ring Repair Kit Optional Accessory Not Illustrated BS-7175116GS
...
Turbo Nozzle Optional Accessory Not Illustrated BS-7174400GS
...
HOSE-PRESSURE Optional Accessory Not Illustrated BS-206192GS
...
ACC, KIT, PUMP SAVER, 10.7-OZ B&S, EN/FR Optional Accessory Not Illustrated BS-6151
...
Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner Optional Accessory Not Illustrated BS-6159
...
CHEM-WASH DECK Optional Accessory Not Illustrated BS-100524GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160
...
CHEM, WASH, DEGREASER, HD, 32 OZ Optional Accessory Not Illustrated BS-100526GS
...
Project Pro® PerfectMix Concrete, Brick, And Tile Cleaner Optional Accessory Not Illustrated BS-6160

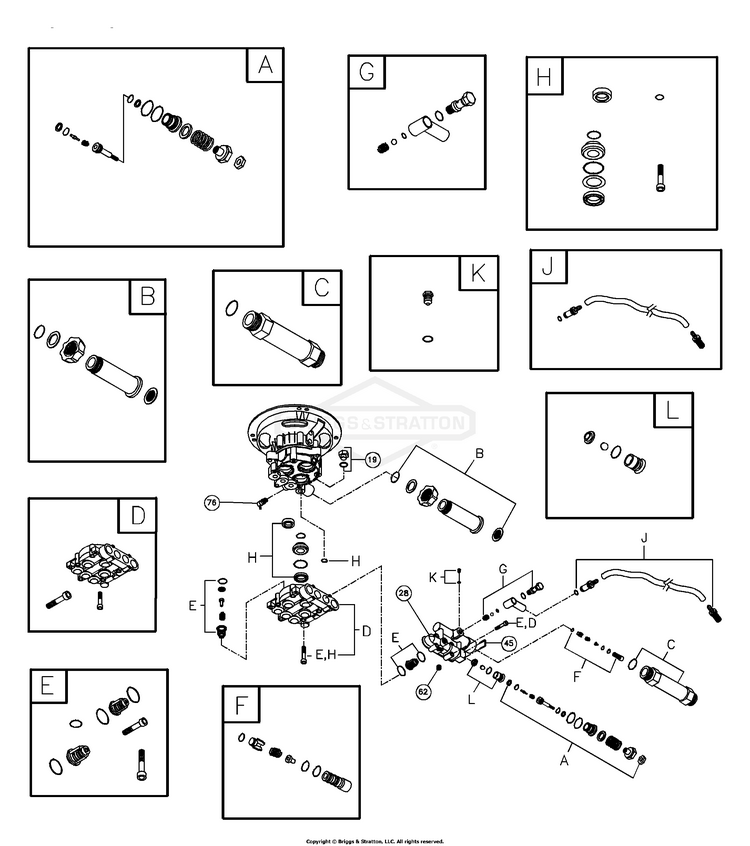

Pump

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190586GS
...
A
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190594GS
...
B
KIT, WATER INLET, ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
D
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-193808GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-193806GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, SEAL SET Service kit includes all parts shown within the box. BS-193807GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, PIPE FITTING Service kit includes all parts shown within the box. BS-193971GS
...
L
KIT, UNLOADER SEAT Service kit includes all parts shown within the box. BS-193972GS
...
...
...
