9880-1 Briggs and Stratton Portable Generator 3,250 XE

Model: 9880-1

Save
 Part Not Listed?Part Not Listed?
product name

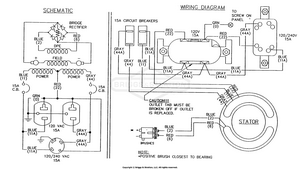

Electrical Data

...

No Parts Available for this Schematic

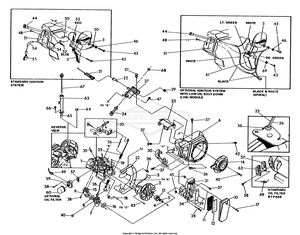

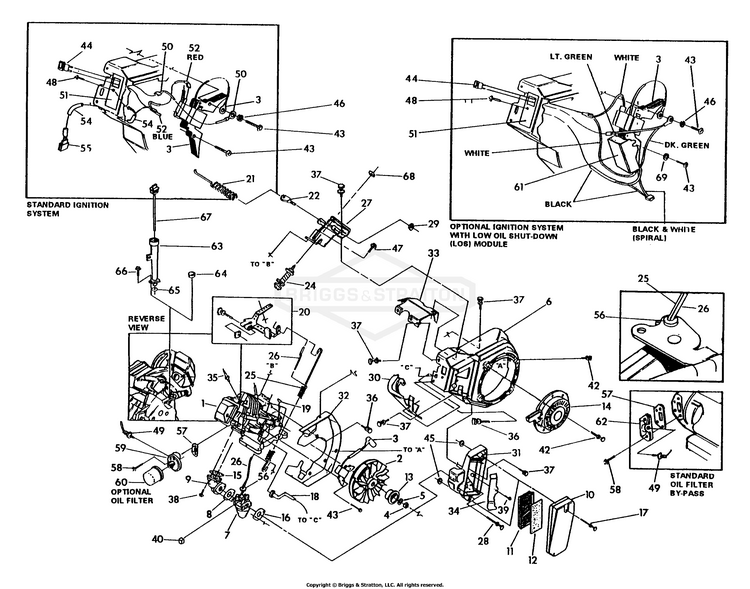

Engine Trim Parts

...
...
1
Straight Shaft BS-90507
...
2
Flywheel Assembly BS-77182T
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Complete Blower Housing BS-90695A
...
7
Carburetor Assembly BS-92966
...
8
Carburetor/Manifold Gasket BS-78631
...
9
HS Intake Manifold BS-90948
...
10
Air Cleaner Cover BS-78608
...
11
FILTER,Air BS-78601GS
...
12
Air Filter Pre-Cleaner BS-78602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-90051
...
16
Carburetor/Air Cleaner Gasket BS-91846
...
17
Bolt - Air Cleaner Cover BS-78609
...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Assembly BS-86962
...
21
Governor Spring - 50 Hz BS-86643
...
22
Governor Adjusting Screw BS-83502
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extension Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Governor Adjust Bracket BS-83781
...
28
Carburetor Mounting Bolt BS-78643
...
29
M5-0.8 Mounting Lock Nut BS-83503
...
30
Bottom Wrapper BS-89739
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
SCREW BS-691061
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Taptite Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
42
M6-1.0 x 10mm Capscrew with lock washer BS-81668
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
45
NUT, M6 BS-49813GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil Indicator LED BS-85272
...
49
4 psi Oil Pressure Switch BS-77667
...
50
Ground Wire Assembly BS-00285271
...
51
LOS Engine Decal BS-84195
...
52
Ignition Wire Assembly BS-00185271
...
54
No. 3, 145mm Sleeving BS-85620
...
55
3-pin, Male Housing BS-84329
...
56
Carburetor Wear Washer BS-85953
...
57
FITTING 3/8 NPT MALE BS-7091848YP
...
58
M6-1.0 x 20mm Screw BS-92978
...
59
Oil Filter Adaptor (MC series) BS-84982
...
60
FILTER, Oil (Optional) BS-70185GS
...
61
ASSY, MDLTR/HRNSS, LOS (Optional) BS-87221AGS
...
62
By-pass Adaptor (Optional) BS-88758
...
63
Oil Fill Tube (Optional) BS-91041
...
64
Expansion Plug BS-94820
...
65
CLEVIS PIN BS-7079831YP
...
66
T-NUT 5/16C BS-7090388YP
...
67
Oil Fill Dipstick (Optional) BS-91475
...
68
JAM-M8-1.25 Hex Nut BS-66311
...
69
WASHER BS-49811GS

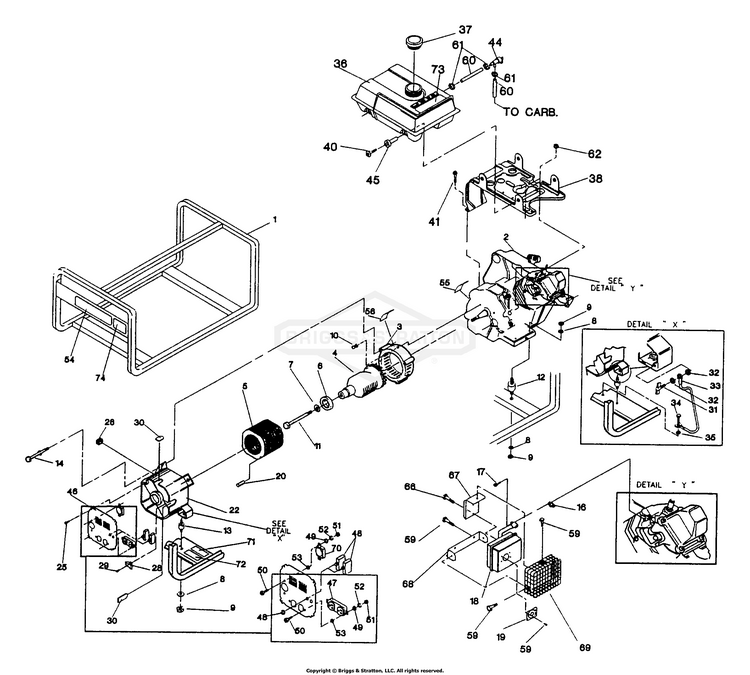

Generator

...
...
1
3250 XL Cradle BS-93643
...
2
6.5 HP XL Engine BS-94441
...
3
HOUSING, Engine Adapter BS-66365GS
...
4
ASSY, RTR, 3250DPE80 BS-94997GGS
...
5
ASSY, STATOR, 3250DPE80 BS-94996GGS
...
6
BEARING BS-65791GS
...
7
M8 Special Flat Washer BS-67451
...
8
WASHER, Lock BS-22129GS
...
9
SKID PLATE BS-5045771B
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
HHCS, 5/16-24 x 6-1/2 BS-53122GS
...
12
MOUNT,Vibration BS-85651GS
...
13
MOUNT-VIBRATION BS-194153GS
...
14
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
16
GASKET, Exhaust BS-89476GS
...
17
M8-1.25 x 20mm Capscrew BS-40976
...
18
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
19
SCREEN, Spark Arrest BS-83083GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
Rear Bearing Carrier BS-66825B
...
25
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
26
GROMMET, RUBBER BS-67022GS
...
28
Brush Holder Assembly BS-91825
...
29
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
30
GROMMET, Plastic RBC BS-84242GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
33
WIRE, Ground BS-195373GS
...
34
SCREW BS-313085GS
...
35
#10 Shakeproof Washer BS-23672
...
36
Fuel Tank BS-94994A
...
37
CAP, Fuel Tank BS-846987
...
38
Fuel Tank Bracket BS-95214
...
40
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
41
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
44
VALVE-FUEL SHUT OFF BS-698180
...
45
BSHNG, TANK BS-96002GS
...
46
COVER, Control Panel BS-95600GS
...
47
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
48
Circuit Breaker, 15amp BS-94396AGS
...
49
WASHER BS-38150GS
...
50
M4-0.7 x 10mm Screw BS-75475
...
51
NUT, M4-0.7 Hex BS-51715GS
...
52
No. 8 Lock Washer BS-22264
...
53
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
54
SCREW BS-690341
...
55
DECAL, DATA, GNRC GEN BS-78817GS
...
56
DECAL, STA-BIL BS-81886GS
...
59
M5 x 10mm Screw BS-90299
...
60
Fuel Hose BS-30340
...
61
1/4" Hose Clamp BS-48031C
...
66
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
67
Muffler Support Bracket BS-92535
...
68
BRCKT, MFFLR, GN160 BS-90300GS
...
69
Muffler Guard BS-89712
...
70
OUTLET, 120/240V Locking, 20A BS-68867GS
...
71
DECAL, Neutral Ground BS-74728GS
...
72
DECAL, Ground, French BS-76247GS
...
73
DECAL, DANGER, FRENCH BS-96686GS
...
74
Decal - CSA BS-25717
...
...
...
