9717-2 Briggs and Stratton Portable Generator SV4200, 4,200 Watt

Model: 9717-2

Save
 Part Not Listed?Part Not Listed?
product name

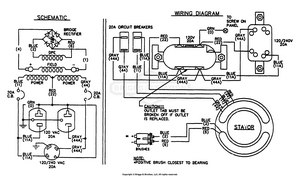

Electrical Data No. 92349

...

No Parts Available for this Schematic

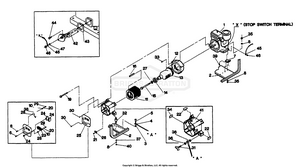

SV-4200 AC Generator No. 92459

...
...
1
BOLT, Carriage, 3/8-16 x 2-1/2 BS-7091008YP
...
2
Cradle assembly BS-91019
...
3
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
4
WIRE, Ground BS-195373GS
...
5
SCREW BS-313085GS
...
6
M4-0.7 x 10mm Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
10
WASHER BS-38150GS
...
11
ELBOW-EXHAUST BS-690291
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
Rotor Assembly BS-91836
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
16
PIN, ROLL 4MM x 10 BS-81917GS
...
19
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
20
No. 8 Lock Washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
22
GROMMET, Plastic RBC BS-84242GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
Sheet Metal - Control Panel BS-83589
...
26
Brush Holder Assembly and Bridge Rectifier BS-91825
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
32
MOUNT, VIBRATION BS-82857GS
...
33
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
NUT, 5/16-18 HEX BS-25244GS
...
41
CARRIER, Rear Bearing BS-SRV66825DGS
...
42
Low Oil Shutdown BS-88977
...
43
Low Oil Shutdown Gasket BS-91841
...
44
TAPTITE, #10-32 X 5/8 BS-32713GS
...
45
WIRE-A, 18AWG, BLK, 445MM BS-91842AGS
...
46
NUT, #8-32 BS-22471GS
...
47
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
...
...
