9717-0 Briggs and Stratton Portable Generator SV4200, 4,200 Watt

Model: 9717-0

Save
 Part Not Listed?Part Not Listed?
product name

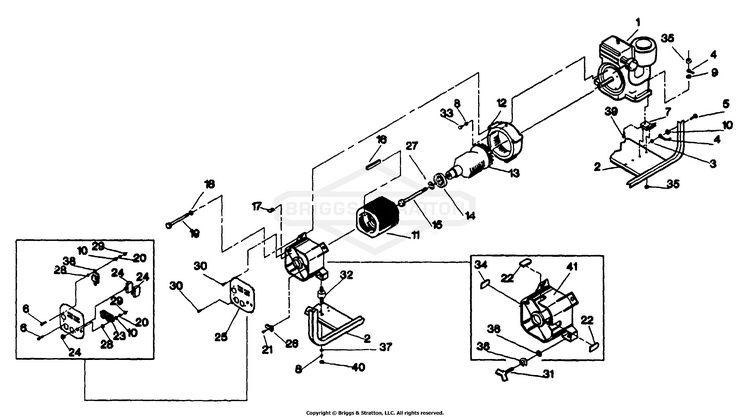

B&S SV-4200 AC Engine With LOS & Cradle Assy No. 91326

...
...
1
Briggs & Stratton engine with Low Oil Shutdown BS-76516
...
2
Cradle assembly BS-75987
...
3
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
4
Ground wire BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
M4-0.7 x 10mm Screw BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
Stator Assembly BS-77259
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
Rotor Assembly BS-74715
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
16
PIN, ROLL 4MM x 10 BS-81917GS
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
M6-1.00 x 130mm Stator Bolt BS-66449E
...
20
No. 8 Lock Washer BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
22
GROMMET, Plastic RBC BS-84242GS
...
23
OUTLET, 20A,120V BS-68759GS
...
24
BRKR, CRCT, 20A, 2P BS-77247GS
...
25
Control Panel, sheet metal BS-83859
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Flat Washer (special) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
32
MOUNT, VIBRATION BS-82857GS
...
33
5/16"-24 x 3/4" Screw BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
NUT, 5/16-18 HEX BS-25244GS
...
41
CARRIER, Rear Bearing BS-SRV66825DGS

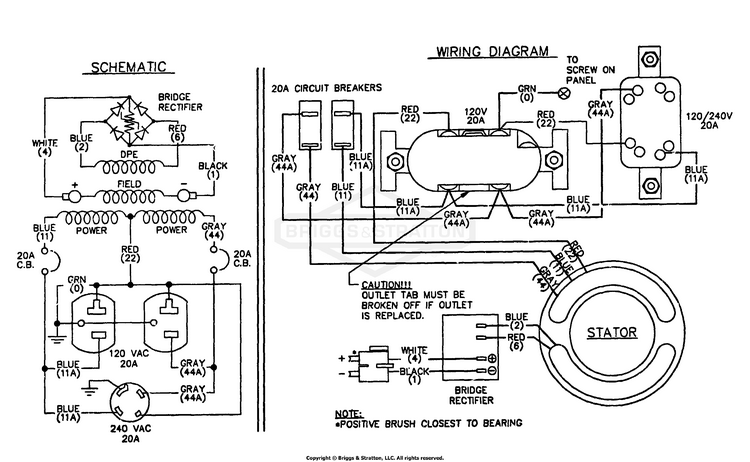

Electrical Data No. 91376

...

No Parts Available for this Schematic

...
...
...
