9582-0 Briggs and Stratton Pressure Washer 2,900 CP

Model: 9582-0

Save
 Part Not Listed?Part Not Listed?

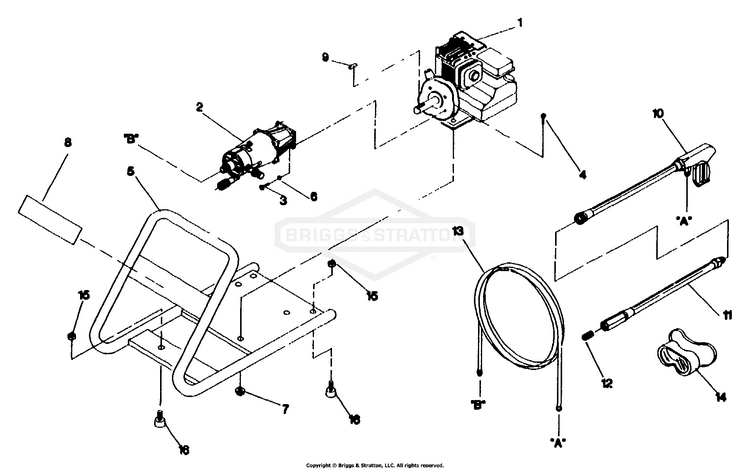

product name

Cradle No. 88190

...
...
1
Briggs & Stratton 3.5 HP Engine BS-87610
...
2
PUMP, ANNOVI, [email protected] BS-87627GS
...
3
BOLT, HEX, 5/16-24X1 BS-703301
...
4
HHCS, M8 - 1.25 x 35 BS-39414GS
...
5
CRDL, PW BS-87810GS
...
6
WASHER, Lock BS-22129GS
...
7
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
8
Decal - 2900CP BS-88188
...
9
KEY, 3/16 SQ 1-7/8 BS-89314GS
...
10
GUN, 2200PSI, 1/4, M22, ARL BS-88253GS
...
11
WAND, FIXED HI, M22, ARL BS-87823GS
...
12
Nozzle Fitting BS-88167
...
13
1/4" Hose Assembly BS-87833
...
14
GOGGLES BS-87815GS
...
15
NUT, NYLOK HX 5/16-18 BS-27028GS
...
16
MNT, VIBR, PRS WSHR BS-87812GS

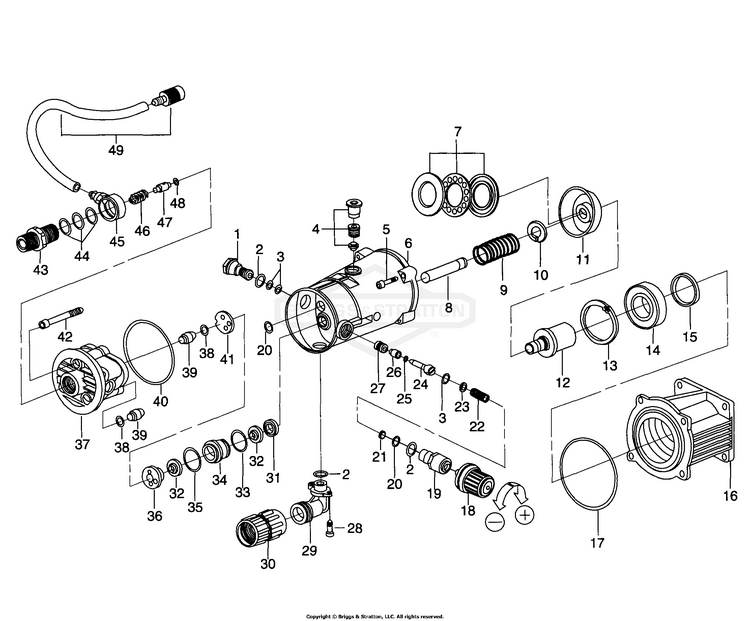

Pump #87627 (1500PSI) 2.0GPM

...
...
PUMP, ANNOVI, [email protected] BS-87627GS
...
1
FTG BS-14287627PGS
...
2
O-Ring BS-134B2327GS
...
3
O-RING BS-10987627PGS
...
4
VLV, CHCK, BRTHR, AIR BS-14087627PGS
...
5
SCREW BS-13987627PGS
...
6
HSNG, PUMP BS-13387627PGS
...
7
ASSY, BRNG/WOBBLE PLATE BS-13687627PGS
...
8
PSTN BS-13487627PGS
...
9
SPRING BS-13587627PGS
...
10
CLIP BS-13787627PGS
...
18
KNOB, ADJUSTMENT BS-11687627PGS
...
19
BODY, VLV BS-11787627PGS
...
20
O-RING BS-194434GS
...
21
SPRING, CONTACTOR BS-11387627PGS
...
22
SPRING BS-11487627PGS
...
23
SPACER, VLV BS-11587627PGS
...
24
STEM, VLV BS-11887627PGS
...
25
O-RING BS-11987627PGS
...
26
VLV, REGULATOR BS-12087627PGS
...
27
SEAT, VLV, REGULATOR BS-12187627PGS
...
28
SCREW, INLET FTG BS-13887627PGS
...
29
NECK, PLSTC, XB SPPRT BS-90065GS
...
30
FTG, GARDEN HOSE, THREAD BS-14187627PGS
...
31
SEAL BS-11287627PGS
...
32
SEAL BS-10587627PGS
...
33
O-Ring BS-11087627P
...
34
GUIDE, PLUNGER BS-10787627PGS
...
35
SEAL BS-10687627PGS
...
36
CAP, GUIDE, PLUNGER BS-10487627PGS
...
37
HEAD, PUMP BS-12387627PGS
...
38
O-RING BS-10387627PGS
...
39
VLV, INLET/OUTLET BS-10287627PGS
...
40
O-RING BS-10187627PGS
...
41
PLATE, PLUNGER BS-12287627PGS
...
42
SHCS BS-10087627PGS
...
43
FTG, OUTLET BS-12587627PGS
...
44
O-RING BS-13287627PGS
...
45
ASSY, INJ, CHEM, XB BS-94110GS
...
46
SPRING, VLV, OUTLET BS-12787627PGS
...
47
VLV, OUTLET BS-12887627PGS
...
48
O-RING, XB SEAT BS-12687627PGS
...
49
ASSY, FILTER/TUBE BS-89800GS
...
KIT, VLV Includes item No.(s) 38, 39 BS-50087627PGS
...
KIT, O-RING Includes item No.(s) 44, 48, 40, 2, 3, 20, 31, 23, 25 BS-50187627PGS
...
KIT, SEAL, WATER Includes item No.(s) 32, 35, 33 BS-50287627PGS
...
...
...
