9495-0 Briggs and Stratton Portable Generator ET2100, 2,100 Watt

Model: 9495-0

Save
 Part Not Listed?Part Not Listed?
product name

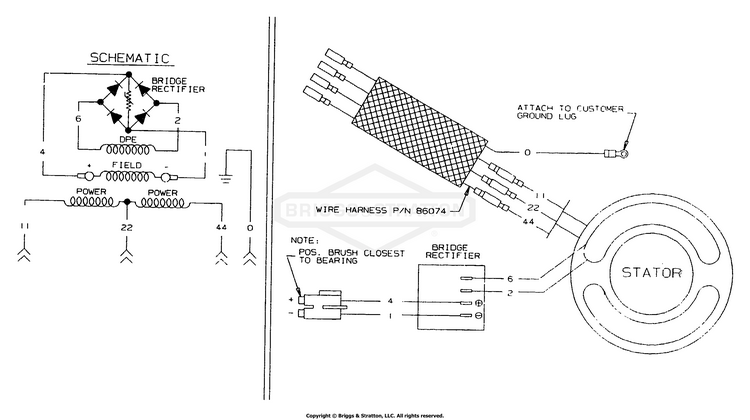

Electrical Data

...

No Parts Available for this Schematic

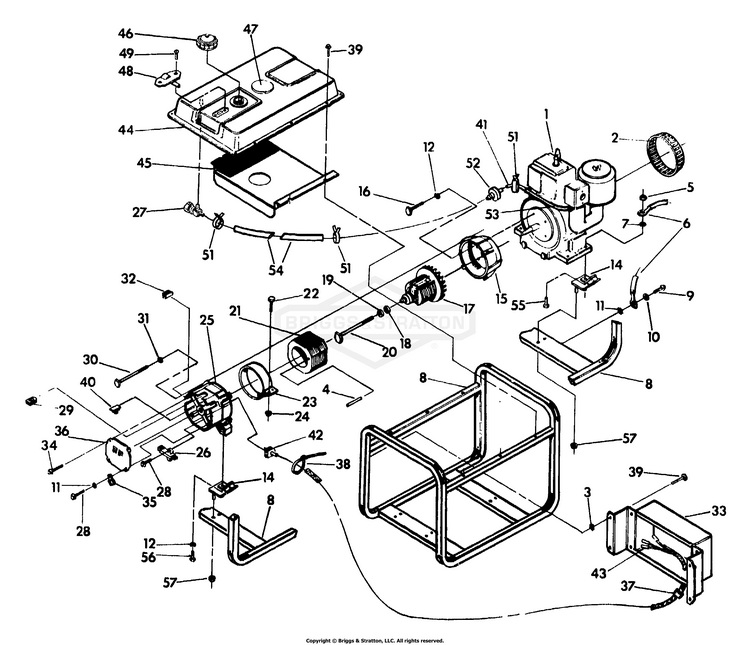

Generator

...
...
1
Briggs & Stratton 5 Hp Engine BS-80253
...
2
Recoil Starter Guard BS-82341
...
3
WHEEL, 12 X 8.5 BS-5023364YP
...
4
PIN, ROLL 4MM x 10 BS-81917GS
...
5
SKID PLATE BS-5045771B
...
6
Ground Wire BS-10953621
...
7
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
8
Cradle BS-78821
...
9
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
10
WASHER BS-38150GS
...
11
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
12
WASHER, Lock BS-22129GS
...
14
MOUNT, Vibration 45°. BS-70642GS
...
15
HSNG, ENG, FML BS-66365FGS
...
16
5/16-24 x 3/4" Capscrew BS-22336
...
17
Rotor Assembly BS-80023G
...
18
BEARING BS-65791GS
...
19
Flat Washer (special) BS-67451
...
20
5/16-24 x 6-5/16" Rotor Bolt BS-58885A
...
21
Stator Assembly BS-84292
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
Stator Wrapper BS-81887F
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
Rear Bearing Carrier BS-66825
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Shut-off Valve BS-71384
...
28
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
29
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
30
M6-1.0 x 90mm Stator Bolt BS-66449B
...
31
CAP BS-5022097SM
...
32
GROMMET, RUBBER BS-67022GS
...
33
Panel Back Box BS-85999
...
34
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
35
Grounding Lug BS-25433
...
36
Bearing Carrier Cover BS-67025
...
37
Strain Relief BS-84313
...
38
TIE WRAP, 4" Black BS-28739AGS
...
39
No. 10-24 Self-drilling Screw BS-75494
...
40
GROMMET, Plastic RBC BS-84242GS
...
41
1/4" dia. x 10-1/4" Fuel Tubing BS-44249J
...
42
GROMMET, Rubber BS-84135GS
...
43
Wire Harness BS-86074
...
44
(C) BEARING PNEUMAT BS-7077353YP
...
45
Heat Shield BS-78956
...
46
CAP, TANK, FUEL, KELCH BS-76280GS
...
47
CVR, ACC, SPARKPLUG BS-64680BGS
...
48
Fuel Level Gauge BS-66391B
...
49
M5 x 12mm Screw BS-52749
...
51
Hose Clamp Band BS-48031C
...
52
FILTER, FUEL, 150 MICRN BS-68740GS
...
53
Foam Insulation Tubing BS-79474A
...
54
1/4" dia. x 5" Fuel Tubing BS-44249C
...
55
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
56
SCREW BS-70644GS
...
57
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
...
...
