9478-0 Briggs and Stratton Portable Generator ET2100, 2,100 Watt

Model: 9478-0

Save
 Part Not Listed?Part Not Listed?
product name

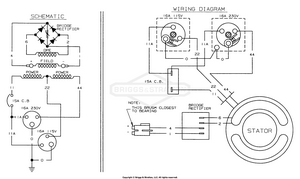

Electrical Data

...

No Parts Available for this Schematic

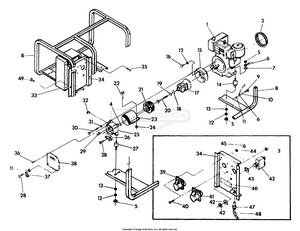

Generator

...
...
1
5 H.P. Briggs & Stratton Engine BS-80279
...
2
Recoil Starter Guard BS-82341
...
3
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
5
SKID PLATE BS-5045771B
...
6
Ground Wire BS-10953621
...
7
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
8
Cradle BS-83990
...
9
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
10
WASHER BS-38150GS
...
11
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
12
WASHER, Lock BS-22129GS
...
14
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
15
HSNG, ENG, FML BS-66365FGS
...
16
5/16" -24 x 3/4" Hex Capscrew BS-22336
...
17
Rotor Assembly BS-80023G
...
18
BEARING BS-65791GS
...
19
Flat Washer (special) BS-67451
...
20
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
21
Stator Assembly BS-84292
...
22
SCREW, M5 x 0.8 x 12 BS-52618GS
...
23
Stator Wrapper BS-81887F
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
Rear Bearing Carrier BS-66825
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
Vibration Mount BS-66443A
...
28
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
29
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
30
M6-1.0 x 90mm Stator Bolt BS-66449B
...
31
CAP BS-5022097SM
...
32
GROMMET, RUBBER BS-67022GS
...
33
Back Panel Cover BS-84277
...
34
Control Panel BS-84276
...
35
CRIMPTITE, #8-18X1/4L BS-63036GS
...
36
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
37
Grounding Lug BS-25433
...
38
Bearing Carrier Cover BS-67025
...
39
OUTLET, 230V 16A, BLUE BS-83706GS
...
40
SCREW BS-76040GS
...
41
130 volts, 16 amp Receptacle BS-83707
...
42
BREAKER, Circuit BS-75207DGS
...
43
WASHER, 7/16" Int Lock BS-82881GS
...
44
WASHER, M5 Lock BS-49226GS
...
45
NUT, M5 x 0.8 BS-51716GS
...
46
Generac Decal BS-84302
...
47
Strain Relief BS-84313
...
48
20" long Sleeving BS-84409
...
49
No. 10-24 Self-drilling Screw BS-75494
...
...
...
