9423-1 Briggs and Stratton Portable Generator C4000, 4,000 Watt

Model: 9423-1

Save
 Part Not Listed?Part Not Listed?
product name

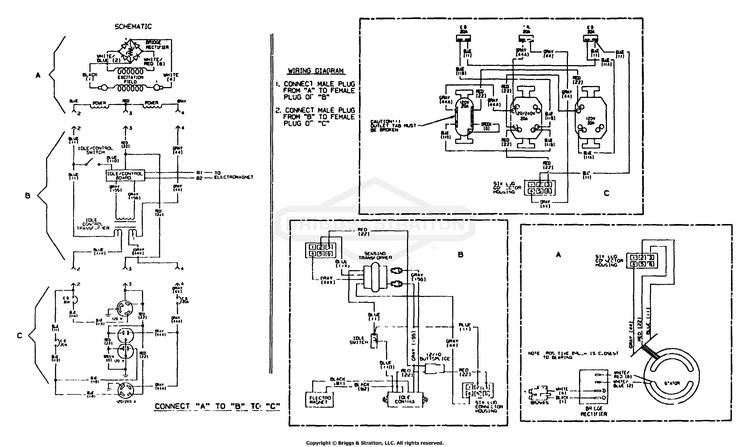

Electrical Data

...

No Parts Available for this Schematic

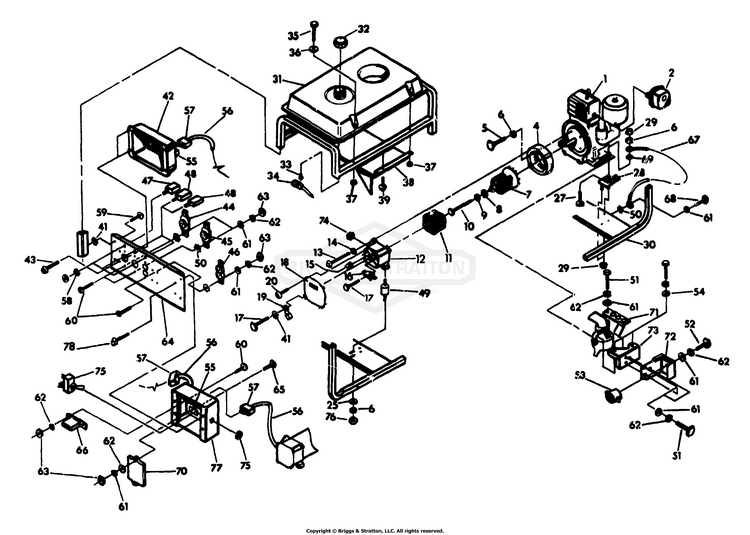

Generator

...
...
1
CAPSCREW-HEX BS-1960346SM
...
2
Briggs & Stratton Muffler BS-82876
...
4
HOUSING, Engine Adapter BS-66365GGS
...
5
5/16"-24 x 3/4" Screw BS-22336
...
6
WASHER, Lock BS-22129GS
...
7
Rotor Assembly BS-74716
...
8
BEARING BS-65791GS
...
9
Special Washer BS-67451
...
10
CAPSCREW, Hex Head BS-75431GS
...
11
Stator Assembly BS-79636
...
12
Rear Bearing Carrier BS-66825A
...
13
M6-1.0 x 130mm Bolt BS-66449D
...
14
CAP BS-5022097SM
...
15
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
16
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
17
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
18
Bearing Carrier Cover BS-67025
...
19
Grounding Lug BS-25433
...
20
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
28
MOUNT, Vibration 45°. BS-70642GS
...
29
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
30
Cradle Assembly BS-77840
...
31
Fuel Tank BS-77374
...
32
Fuel Tank Cap BS-78824
...
33
Kit, Valve BS-192980GS
...
34
PULLEY CATCHER HZT/ BS-7078298YP
...
35
M6-1.0 x 55 Hex Screw BS-78831
...
36
WSHR, SPCL, BLK BS-78830GS
...
37
NUT, FLANGE LOCK - M6 BS-77395GS
...
38
Heat Shield BS-78951A
...
39
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
41
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
42
PANEL, Control, Back, Plastic BS-81919GS
...
43
SCREW, Self Tapping, STC 3 x 18 BS-82308GS
...
44
120 V, 30 A Twistlock BS-68868T
...
45
120/240 V, 20 A Twistlock BS-68867T
...
46
OUTLET, 20A,120V BS-68759GS
...
47
BREAKER-CIRCUIT 30A BS-706178
...
48
BREAKER-CIRCUIT 20A BS-209872GS
...
49
MOUNT, VIBRATION BS-82857GS
...
50
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
51
SCREW, #8-32 X 3/8 BS-23965GS
...
52
MOUNT BS-5022153FS
...
53
Idle Control Coil BS-76220
...
54
WASHER, #10 M5 Flat BS-23897GS
...
55
HOUSING, Receptacle BS-22694GS
...
56
Black Sleeving BS-82860
...
57
FASTEN, On Tab Housing 6P BS-22695GS
...
58
WASHER, 7/16" Int Lock BS-82881GS
...
59
Self-drilling Screw BS-75494
...
60
M4-0.7 x 10mm Screw BS-75475
...
61
WASHER BS-38150GS
...
62
No. 8 Lock Washer BS-22264
...
63
NUT, M4-0.7 Hex BS-51715GS
...
64
Control Panel BS-81897
...
65
SCREW BS-80077GS
...
66
Idle Assembly Transformer BS-77278E
...
67
Ground Wire BS-10953621
...
68
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
69
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
70
ASSY, PCB, IDLE CNTRL BS-67632DGS
...
71
Throttle Plate BS-78503A
...
72
Bracket Adjustment BS-78502A
...
73
Bracket Mounting BS-73720A
...
74
GROMMET, RUBBER BS-67022GS
...
75
Toggle Switch BS-55869
...
76
NUT, 5/16-18 HEX BS-25244GS
...
77
Wire Box BS-82856
...
78
CRIMPTITE, #8-18X1/4L BS-63036GS
...
...
...
