9332-0 Briggs and Stratton Portable Generator 4,000 Watt (Revised) Mastercraft

Model: 9332-0

Save
 Part Not Listed?Part Not Listed?
product name

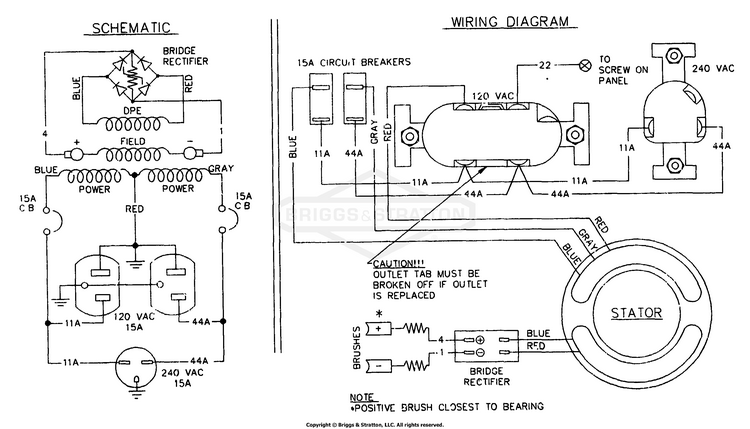

Electrical Schematic And Wiring Diagram

...

No Parts Available for this Schematic

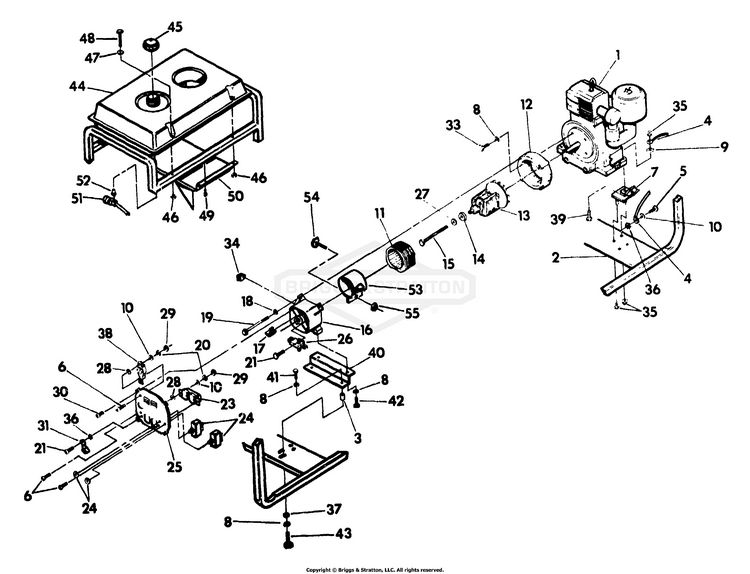

M-4000 Generator

...
...
1
ENGINE-BRIGGS & STRATTON BS-76516
...
HARNESS WINCH DASH BS-7078261YP
...
2
CRADLE ASSEMBLY BS-75987
...
CRADLE ASSEMBLY BS-77840
...
3
VIBRATION MOUNT BS-44624
...
4
GROUND WIRE BS-10953621
...
5
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
6
SCREW, PAN HD. MACH.-M4-0.7 x 10 BS-75475
...
7
MOUNT, Vibration 45°. BS-70642GS
...
8
WASHER, Lock BS-22129GS
...
9
WASHER, 5/16" Ext. Shakeproof BS-27482GS
...
10
WASHER BS-38150GS
...
11
STATOR ASSEMBLY BS-82337
...
12
HOUSING, Engine Adapter BS-66365GGS
...
13
ROTOR ASSEMBLY BS-74715
...
14
BEARING BS-65791GS
...
15
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
16
CARRIER, REAR BEARING BS-66825
...
17
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
18
CAP BS-5022097SM
...
19
BOLT, STATOR M6-1.00 x 115MM BS-66449E
...
20
LOCK WASHER-NO.8 BS-22264
...
21
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
23
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
24
BRKR, CRCT, 15A, 2P BS-66848GS
...
25
CONTROL PANEL, SHEET METAL BS-72098
...
26
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
27
FLAT WASHER-(SPECIAL) BS-67451
...
28
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
29
NUT, M4-0.7 Hex BS-51715GS
...
30
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
31
LUG, GROUNDING BS-25433
...
33
SCREW, HEX HD.-5/16"-24 x 3/4" BS-22336
...
34
GROMMET, RUBBER BS-67022GS
...
35
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
36
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
38
240 VOLT -15AMP. OUTLET BS-58889
...
39
PPHMS, M8 - 1.25 x 40 BS-76222GS
...
40
SUPPORT, ALTERNATOR BS-73078
...
41
SCREW, HEX-5/16-18, 1/2" BS-36223
...
42
HHCS, M8 x 20 BS-39253GS
...
43
SCREW, HEX-5/16-18 x 3/4 BS-30332
...
44
FUEL TANK BS-77374
...
45
CAP, FUEL TANK BS-78824
...
46
NUT, FLANGE LOCK - M6 BS-77395GS
...
47
WSHR, SPCL, BLK BS-78830GS
...
48
SCREW, HEX M6-1.0 x 55 BS-78831
...
49
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
50
HEAT SHIELD BS-78951
...
51
VALVE, PLASTIC TANK BS-78296
...
52
Kit, Valve BS-192980GS
...
53
ALT. WRAP BS-81887B
...
54
SCREW, M5 x 0.8 x 12 BS-52618GS
...
55
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
...
...
