9101-0 Briggs and Stratton Portable Generator 8,000 Watt

Model: 9101-0

Save
 Part Not Listed?Part Not Listed?
product name

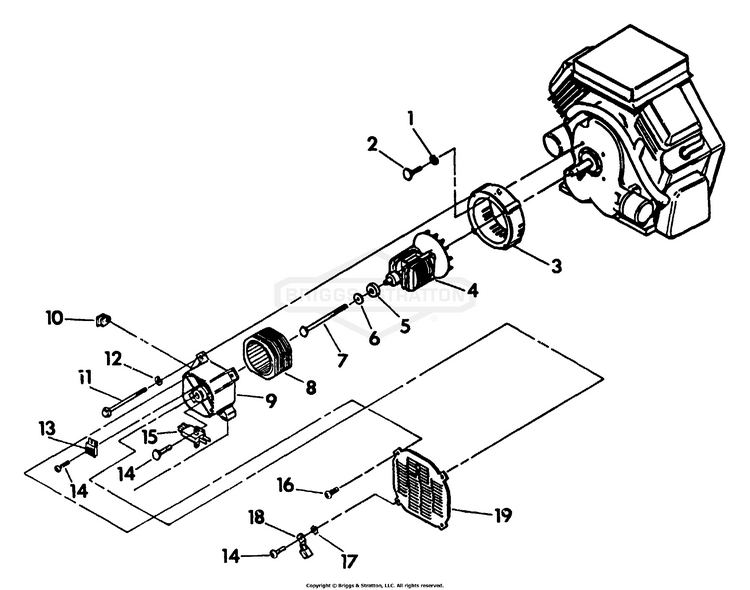

A-C Generator

...
...
1
WASHER, Lock BS-22129GS
...
2
5/16-24 x 3/4" Hex Head Capscrew BS-22336
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
Rotor Assembly BS-77308
...
5
BEARING BS-65791GS
...
6
Flat Washer (special) BS-67451
...
7
5/16"-24 x 11-1/4" Rotor Bolt BS-29092
...
8
Stator Assembly BS-77260
...
9
Rear Bearing Carrier BS-66825
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
15
Brush Holder Assembly BS-80812
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
17
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
18
Grounding Lug BS-25433
...
19
COVER, Bearing Carrier BS-B4871GS

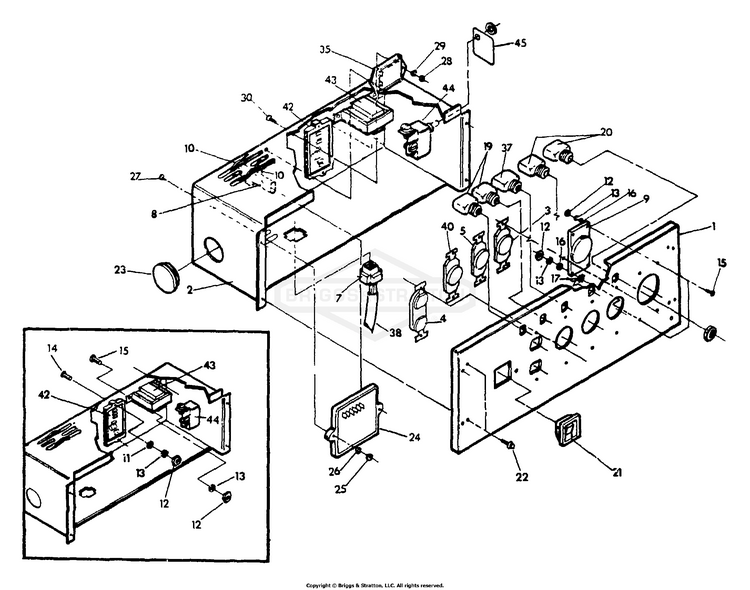

Control Panel No. 80842

...
...
1
8 kW Panel Silkscreen BS-78373
...
2
Control Panel Cover BS-77315
...
3
120/240 V. 30 amp Twistlock Outlet BS-43437
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
7
Connector BS-63993
...
8
Field Boost Assembly BS-77244
...
9
OUTLET, 50A, 240V BS-74191GS
...
10
TIEWRAP, 7 LG BLK BS-29333AGS
...
11
Thumb Control Lever BS-5043180B
...
12
NUT, M4-0.7 Hex BS-51715GS
...
13
No. 8 Lock Washer BS-22264
...
14
SCREW BS-80077GS
...
15
M4-0.7 x 10mm Screw BS-75475
...
16
WASHER BS-38150GS
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
CRIMPTITE, #8-18X1/4L BS-63036GS
...
23
1-3/4" dia. Hole Plug BS-58221
...
24
A-c Voltage Regulator BS-74074
...
25
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
27
No. 10-32 x 1-1/8" Screw BS-33534
...
28
No. 6-32 Hex Nut BS-22188
...
29
PULLEY, PUMP DRIVE BS-5022155SM
...
30
SCREW BS-36902GS
...
35
Thermal Relay BS-77314
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
38
650mm Sleeving BS-22661Y
...
40
120 V., 20 amp Twistlock Outlet BS-74190
...
42
Idle Control Circuit Board BS-67632C
...
43
Idle Control Transformer BS-74769
...
44
Toggle Switch BS-55869
...
45
Idle Control Decal BS-76255

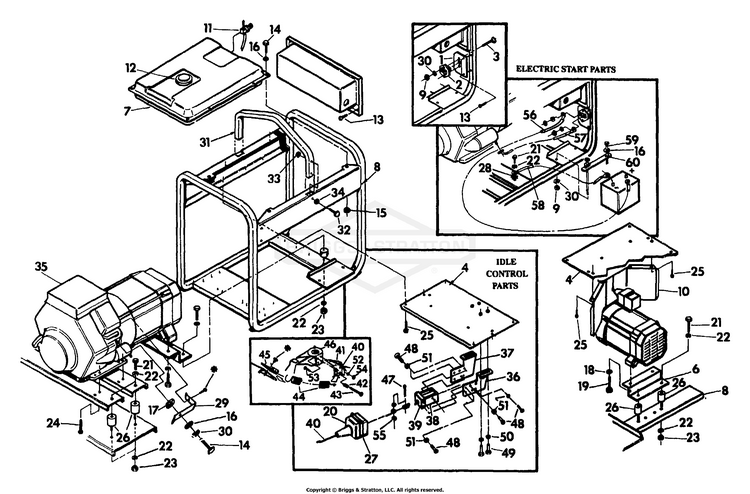

Cradle No. 80841

...
...
1
BRACKET, STARTER SWITCH BS-78289GS
...
2
Starter Switch BS-77282
...
3
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
4
Gas Tank Heat Shield BS-78518
...
5
Engine Support BS-77304
...
6
SPPRT, ALT BS-78512GS
...
7
Fuel Tank BS-79568
...
8
Manual Start Cradle BS-78508
...
Electric Start Cradle BS-78508A
...
9
1/4"-20 Hex Nut BS-22127
...
10
Heat Delflecting Shield BS-78513
...
11
Fuel Shut-Off Valve BS-75938
...
12
CAP, TANK, FUEL, KELCH BS-76280GS
...
13
No. 10-24 x 5/8" Screw BS-75494
...
No. 10-24 x 5/8" Screw BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
5/16"-24 Hex Nut BS-24114
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M8 x 20 BS-39253GS
...
20
Vinyl Boot BS-80898
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
TAPTITE BS-75246GS
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
27
11" Tie Wrap BS-69665
...
28
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
29
Wire Shield BS-78807
...
30
CAP BS-5022097SM
...
CAP BS-5022097SM
...
31
Lifting Bar BS-80809
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
35
Manual Start 15 HP Engine BS-78282
...
Electric Start 15 HP Engine BS-78283
...
36
Solenoid Mounting Bracket BS-78504
...
37
Solenoid Mounting Bracket BS-78504A
...
38
D-4HD Solenoid BS-78520
...
39
Solenoid Cover BS-78524
...
40
Solenoid Linkage BS-78507
...
41
Linkage Mounting Bracket BS-78516
...
42
Linkage Mtg. Bracket Spring BS-78529
...
43
HHCS, M4-0.7 X 50 BS-78530GS
...
44
Idle Control Spring BS-78519
...
45
Spring Mounting Bracket BS-78505
...
46
Governor Control Bracket Rework BS-78527
...
47
PIN, COTTER, 3/32-1 BS-22268GS
...
48
SCREW BS-797483
...
49
M4-0.7 x 10mm Capscrew BS-51718
...
50
WASHER BS-38150GS
...
51
No. 8 Lock Washer BS-22264
...
52
HANDLE ASSEMBLY BS-84008897
...
53
M4-0.7 x 6mm Capscrew BS-49819
...
54
NUT, M4-0.7 Hex BS-51715GS
...
55
WSHR, NYLON, .14 X .37 X .06 BS-25909GS
...
56
WIRE-A, 6AWG, RED, #13, 330MM BS-11553621GS
...
57
Starter Cable to Sw. Assm. BS-11453621
...
58
WIRE-A, 8AWG, BLK, #0, 279MM BS-11653621GS
...
59
HHCS, 1/4-20 X 7 BS-45000GS
...
60
CONTROL, Hydro, Right BS-5044951B

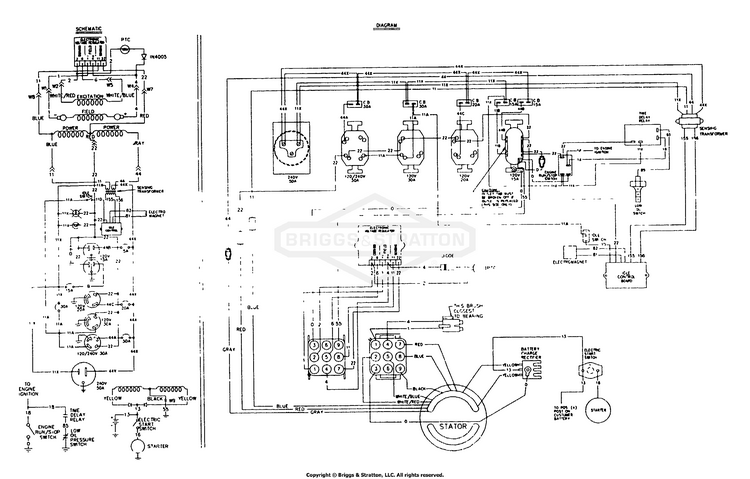

Electrical Schematic & Wiring Diagram No. 80805

...
