8973-2 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8973-2

Save
 Part Not Listed?Part Not Listed?
product name

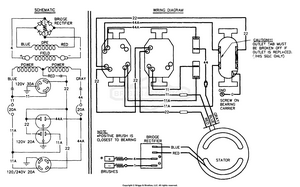

Electrical Schematic & Wiring Diagram

...

No Parts Available for this Schematic

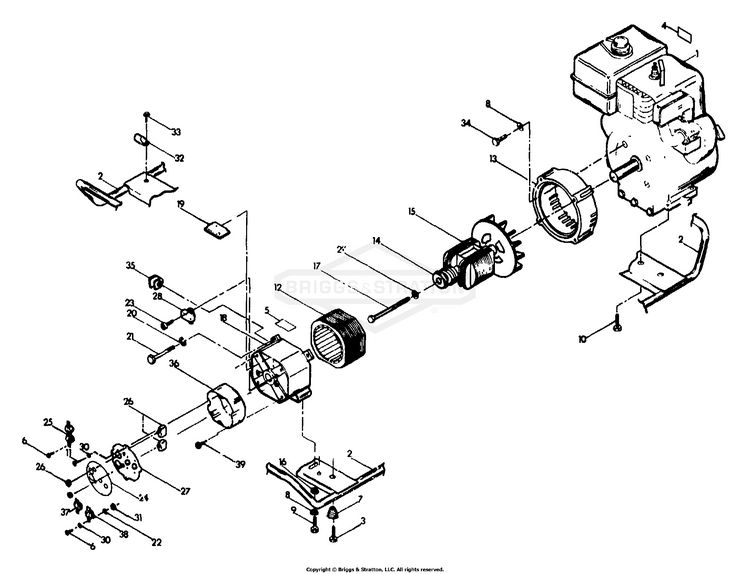

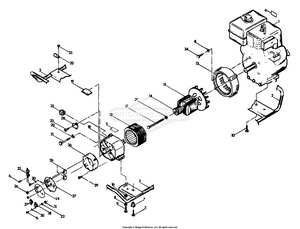

Generator

...
...
1
ENGINE- Tecumseh HUB-80 BS-69649
...
2
CRADLE ASSY BS-74766
...
3
SCREW (Taptite) 5/16"-18 x 1/2" BS-24910
...
4
DECAL- Caution BS-39178
...
5
DECAL- Warning BS-72079
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
HHCS, M8 x 20 BS-39253GS
...
10
SCREW (Taptite) 3/8"-16 x 3/4" BS-59637
...
11
SCREW. Pan Head No. 10-32 x 1/4" BS-33528
...
12
STATOR ASSY BS-74709
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
BEARING BS-65791GS
...
15
ROTOR ASSY BS-74716
...
17
BOLT. Rotor 5/16-24" x 8.25" BS-73067
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator M6-1.00 x 130mm BS-66449H
...
22
CAP BS-5022097SM
...
23
SCREW (Taptite) M5-0.80 x 15mm BS-66449H
...
24
SHAFT, Hex (3/8-24 thread, one end) BS-7072284YP
...
25
OUTLET, 20A,120V BS-68759GS
...
26
BREAKER, Circuit- 20 amp BS-66819
...
27
WELD UPPER SHIFTER BS-7058295YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLATWASHER (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
LUG, Grounding BS-25433
...
33
Screw (Taptite) No. 10-24 x 1/2" BS-24489
...
34
SCREW. Hex- 5/16"-24 x 3/4" BS-22336
...
35
GROMMET, RUBBER BS-67022GS
...
36
BRKT, TRACTION CABLE BS-7072280YP
...
37
OUTLET-120V TL30A BS-705932
...
38
OUTLET, 120/240V Locking, 20A BS-68867GS
...
39
SCREW, Pan Head MS-0.80 x 25mm BS-73540
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG-120/240V TL20A BS-100522GS
...
...
...
