8973-0 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8973-0

Save
 Part Not Listed?Part Not Listed?
product name

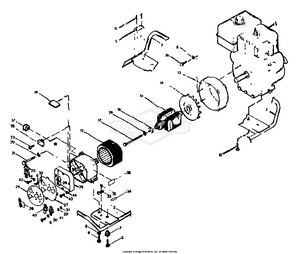

Generator

...
...
1
ENGINE-Tecumseh HM-80 BS-69649
...
2
CRADLE BS-72097
...
3
SCREW (Taptite)-5/16"-18 x 1/2" BS-24910
...
5
PLATE-Serial BS-67430J
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
SCREW, Pan Head Machine-M8-1.25 x 20mm BS-39283
...
10
SCREW (Taptite)-3/8"-16 x 3/4" BS-59637
...
11
RIVET-Stainless Steel BS-36261
...
12
ASSY, STATOR, S4002 BS-70422GS
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
FAN, Cooling BS-66389
...
15
ROTOR BS-72067
...
16
BEARING BS-65791GS
...
17
BOLT, Rotor-5/16"-24 x 8" BS-46958
...
18
CARRIER, Flear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator-M6-1.00 x 140mm BS-66449F
...
22
WASHER, Lock-M6 BS-22264
...
23
SCREW (Taptite)-M5-0.80 x 15mm BS-66649
...
24
SHAFT, Hex (3/8-24 thread, one end) BS-7072284YP
...
25
RECEPTACLE-120 volts a-c BS-69759
...
26
BREAKER, Circuit-20 amp BS-66819
...
27
WELD UPPER SHIFTER BS-7058295YP
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLAT WASHER-(SPECIAL) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
33
LUG, GROUNDING BS-25433
...
34
DECAL, GRD LUG BS-67210AGS
...
35
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
36
SCREW, Hex Head-5/16"-24 x 3/4" BS-22336
...
37
GROMMET, RUBBER BS-67022GS
...
38
BAFFLE LH BS-7072296YP
...
39
BRKT, TRACTION CABLE BS-7072280YP
...
40
OUTLET-120V TL30A BS-705932
...
41
OUTLET, 120/240V Locking, 20A BS-68867GS
...
42
SCREW, Pan Head-No. 10.32 x 1/4" BS-33528
...
43
SCREW, Pan Head-M5-0.80 x 1" BS-73540
...
44
VALVE, FUEL SHUT OFF BS-84010414
...
MANUAL-OPERATOR BS-73729GS

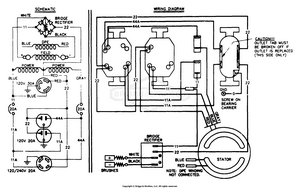

Wiring Diagram/Electrical Schematic

...

No Parts Available for this Schematic

...
...
...
