8972-3 Briggs and Stratton Portable Generator S4001, 4,000 Watt

Model: 8972-3

Save
 Part Not Listed?Part Not Listed?
product name

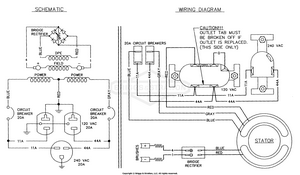

Electrical Schematic & Diagram

...

No Parts Available for this Schematic

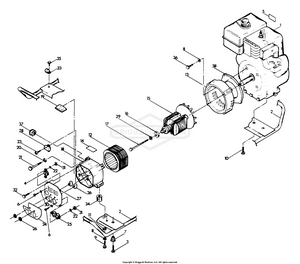

Generator

...
...
1
ENGINE-Briggs & Stratton BS-68701
...
2
CRADLE BS-74766
...
3
SCREW (Taptite) 5/16"-18 x 1/2" BS-24910
...
4
RECEPTACLE 240 volts, 20 amp BS-68735
...
5
DECAL BS-39178
...
6
SCREW BS-797483
...
7
MOUNT, Vibration BS-23594
...
8
WASHER, Lock BS-22129GS
...
9
SCREW BS-39287GS
...
10
SCREW (Taptite) 3/8"-16 x 3/4" BS-59637
...
12
STATOR ASSY BS-74708
...
13
ADPTR, HSNG, 8 HP BS-66365DGS
...
14
DECAL BS-72079
...
15
ROTOR ASSY BS-74715
...
16
BEARING BS-65791GS
...
17
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
18
CARRIER, Rear Bearing BS-66825
...
19
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
20
CAP BS-5022097SM
...
21
BOLT, Stator-M6-1.00 x 115mm BS-66449E
...
22
LOCKWASHER-M8 BS-22264
...
23
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
24
DECAL-Receptacle Panel BS-72278
...
25
OUTLET, 20A,120V BS-68759GS
...
26
BREAKER, Circuit-20 amp BS-66819
...
27
PANEL, Receptacle BS-72098
...
28
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
29
FLATWASHER (Special) BS-67451
...
30
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
31
NUT, #8-32 BS-22471GS
...
32
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
33
LUG, Grounding BS-25433
...
34
DRIVE DISC, Steel (Includes Bushing) BS-7073528YP
...
35
SCREW (Crimptite) No. 10-24 x 1/2" BS-24489
...
36
SCREW, Hex Head 5/16"-24 x 2-1/2" BS-23541
...
37
GROMMET, RUBBER BS-67022GS
...
38
SPACER, Engine BS-68342
...
...
...
