8969-2 Briggs and Stratton Portable Generator A4000, 3,600 Watt

Model: 8969-2

Save
 Part Not Listed?Part Not Listed?
product name

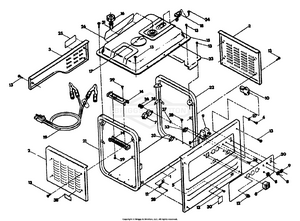

Cradle No. 75454

...
...
1
BASE, Engine Cradle BS-73018
...
2
ROD END FEM 1/2- BS-7073012YP
...
3
(C) BRKT DIFF LOCK H BS-7073009YP
...
4
SCREW, Machine-No. 6-32 x 3/8" BS-36901
...
5
PANEL, Receptacle BS-73002
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, 20A,120V BS-68759GS
...
8
BREAKER, Circuit-20 amp BS-66819
...
9
BREAKER, Circuit-10 d-c amps BS-66820
...
10
RECEPTACLE, Battery Charge- 10 amp BS-6720730
...
11
(TT) SEAL OIL 16220 BS-7073745YP
...
12
BOSS IDLER YELLOW BS-7073129YP
...
13
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
14
COVER, Handle BS-66450
...
15
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
16
CAP, Fuel Tank Filler BS-69658
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL, Receptacle Panel BS-73006
...
21
BAFFLE RH BS-7072297YP
...
22
CRADLE, Generator End BS-72298
...
23
PULLEY D BS-1732918SM
...
24
SCREW BS-797483
...
25
DECAL- Caution! Hot! BS-66824
...
26
DECAL- Starting Data BS-73036
...
27
PULLEY, PUMP DRIVE BS-5022155SM
...
28
SCREW BS-58443GS
...
29
RIVET, Black Anodized-4mm BS-66831
...
30
DECAL-USDA BS-29084
...
31
FILTER, Fuel BS-70630
...
32
OUTLET-120V TL30A BS-705932
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
33
OUTLET, 120/240V Locking, 20A BS-68867GS
...
PLUG-120/240V TL20A BS-100522GS
...
34
SCREW, Machine-M5-0.80 x 12mm BS-52749
...
35
LOCKWASHER-No.8 BS-22264
...
36
NUT, #8-32 BS-22471GS
...
37
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
38
DECAL-Fuel Shutoff BS-73054

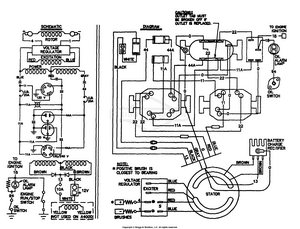

Electrical Schematic & Wiring Diagram No. 74118

...

No Parts Available for this Schematic

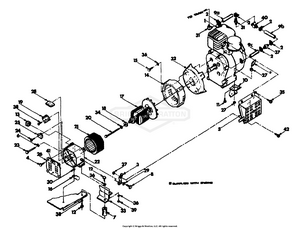

Generator No. 75453

...
...
1
ENGINE-8 HP Briggs & Stratton BS-71392
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET, Exhaust Muffler Support BS-75456
...
4
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
5
MUFFLER, Exhaust-Spark Arrestor Type BS-72279
...
6
CAP BS-5022097SM
...
7
MOUNT, Vibration BS-44624
...
8
CAPSCREW, Hex Head-M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel-20" long BS-47662F
...
9B
HOSE, Fuel-17" long BS-47662AN
...
9C
HOSE, Fuel-3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
MODULE BS-84009650
...
13
GROMMET, RUBBER BS-67022GS
...
14
ADPTR, HSNG, 8 HP BS-66365DGS
...
15
CAPSCREW, Hex Head-5/16"-18 x 2-1/2" BS-23541
...
16
LUG, Ground BS-25433
...
17
ROTOR ASSY BS-74714
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
CAPSCREW, Hex Head BS-75431GS
...
21
BEARING CUP BS-5020883SM
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449D
...
24
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
REGULATOR, VOLT BS-67107GS
...
29
LOCKWASHER-M10 BS-46526
...
30
SCREW (Taptite)-No. 10 x 3/8" BS-24489
...
31
ELBOW-1/8" NPT x 1/4" Barbed BS-28740
...
32
SPACER, Engine BS-68342
...
33
SUPPORT, Generator BS-73078
...
34
FLATWASHER (Special)-M8 BS-67451
...
35
CAPSCREW, Socket Head-1/4"-20 x 1/2" BS-39974
...
36
WASHER, Lock BS-22129GS
...
37
FILTER, FUEL, 150 MICRN BS-68740GS
...
38
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
39
SCREW BS-70644GS
...
40
VALVE, Fuel Shutoff BS-71384
...
41
DECAL, Neutral Ground BS-74728GS
...
42
HHCS, M8 - 1.25 x 12 BS-51754GS
...
...
...
