8967-0 Briggs and Stratton Portable Generator A1400, 1,350 Watt

Model: 8967-0

Save
 Part Not Listed?Part Not Listed?
product name

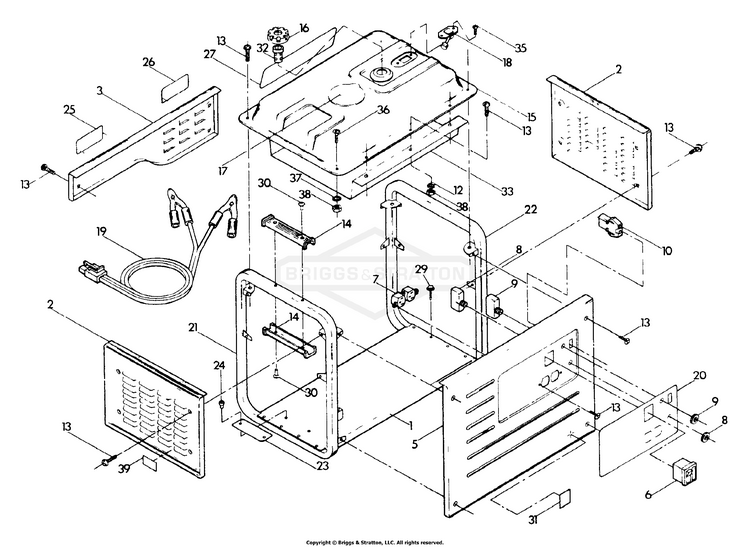

Cradle (10/95)

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
END PANEL BS-73010
...
3
SEAL 1.181 ID 1.850 BS-7073008YP
...
5
(C) ROD CVT SHIFT BS-7073001YP
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
8
BREAKER, Circuit - 15 amp BS-66861
...
9
BREAKER, Circuit - 10 amp BS-66820
...
10
RECEPTACLE - 12 volts d-c BS-6720730
...
12
VALVE, FUEL SHUT OFF BS-84010414
...
13
SCREW - No. 10-32 x 1/2" BS-23964
...
14
HANDLE COVER BS-66450
...
15
FUEL TANK BS-69661
...
16
FUEL FILLER CAP BS-69658
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL - Panel BS-73007A
...
21
CRADLE, Engine End BS-72273
...
22
CRADLE, Generator End BS-72274
...
23
PLATE, Serial BS-67430D
...
24
RIVET, Serial Plate BS-25832
...
26
DECAL - "Caution - Hot" BS-66824
...
27
DECAL - Data BS-73036A
...
29
SCREW - 1/4" - 20 x 3/8" BS-58441
...
30
RIVET - Black Anodized BS-66831
...
31
DECAL - Spark Arrestor BS-29084
...
32
FILTER, Fuel BS-70630
...
33
HEAT SHIELD - Fuel Tank BS-74743
...
35
SCREW - M5-0.80 x 12mm BS-52749
...
36
ROD-GOVERNOR CONTROL BS-593696
...
37
WASHER, #10 Ext. Shakeproof BS-23762GS
...
38
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
39
DECAL - Fuel Shutoff BS-73054

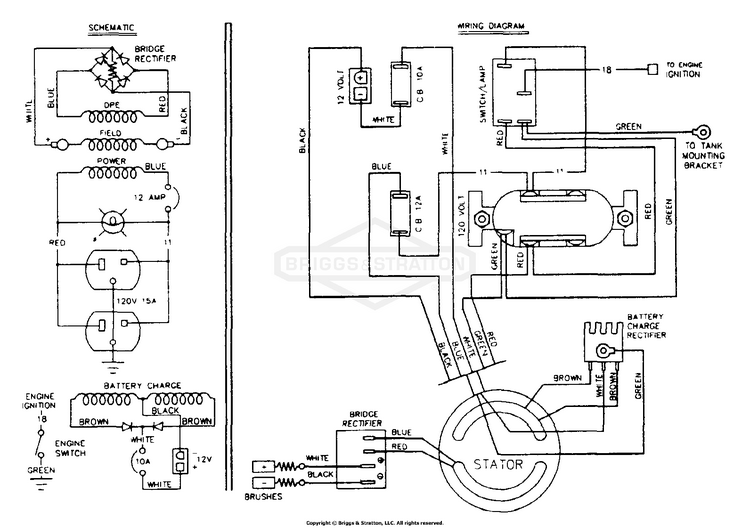

Electrical Schematic & Wiring Diagram (10/95)

...

No Parts Available for this Schematic

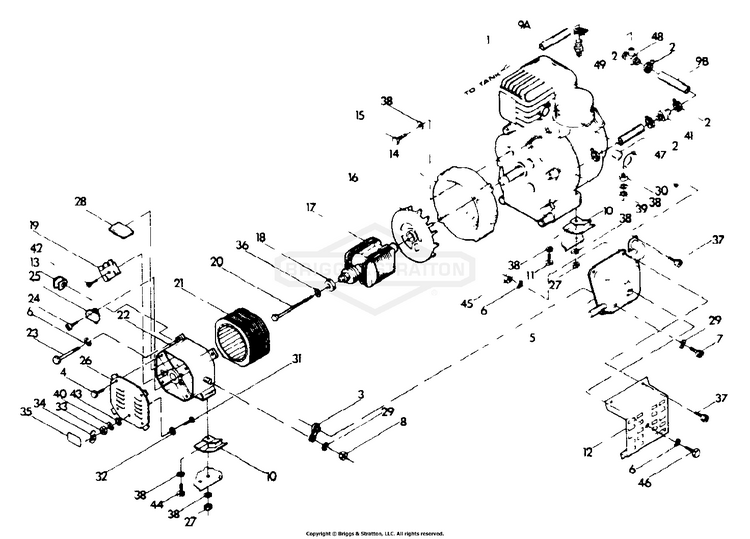

Generator And Stator (10/95)

...
...
1
(C) BRACE DRAWBAR BS-7072270YP
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET, Exhaust Muffler Support BS-73019
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
5
MUFFLER, Exhaust - Spark Arrestor Type BS-72281
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Socket Head 3/8" - 16 x 1/2" BS-73032
...
8
CAPSCREW, Hex Head - M10 - 1.50 x 16mm BS-51755
...
9A
HOSE, Fuel 17" long BS-47662AN
...
9B
HOSE, Fuel 17" long BS-47662AN
...
9C
HOSE, Fuel 3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
SCREW, Pan Head - 5/16" - 18 x 1-3/4" BS-71752
...
12
HTSHLD, MFFLR BS-72292GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
HOUSING, Engine Adapter BS-66365GS
...
15
CAPSCREW, Hex Head - 5/16" - 18 x 3/4" BS-22336
...
16
FAN, Cooling BS-66389
...
17
ROTOR, BS-72063
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
BOLT, Rotor - 5/16" - 24 x 5-3/4" BS-73024
...
21
STATOR, BS-72060
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449A
...
24
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
WASHER, Lock - M10 BS-46526
...
30
DECAL, ProCut Z Text BS-5022241
...
31
HHCS, M5-0.8 X 20 BS-52619GS
...
32
WASHER, Serrated M5 BS-67444
...
33
NUT, M5 x 0.8 BS-51716GS
...
34
NUT, Wing - M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat (Special) - M8 BS-67451
...
37
CAPSCREW, Socket Head - 1/4" - 20 x 1/2" BS-39974
...
38
WASHER, Lock BS-22129GS
...
39
WASHER, Flat - M8 BS-49610
...
40
WASHER, M5 Lock BS-49226GS
...
41
FILTER, FUEL, 150 MICRN BS-68740GS
...
42
SCREW BS-66849AGS
...
43
WASHER, #10 M5 Flat BS-23897GS
...
44
SCREW BS-70644GS
...
45
NUT, Hex - 1/4" - 20 BS-22127
...
46
SCREW BS-43146GS
...
47
LINER, Port BS-73049
...
48
VALVE, Fuel Shutoff BS-71384
...
49
FITTING, Barbed - 1/4" BS-28414
...
...
...
