8905-0 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8905-0

Save
 Part Not Listed?Part Not Listed?
product name

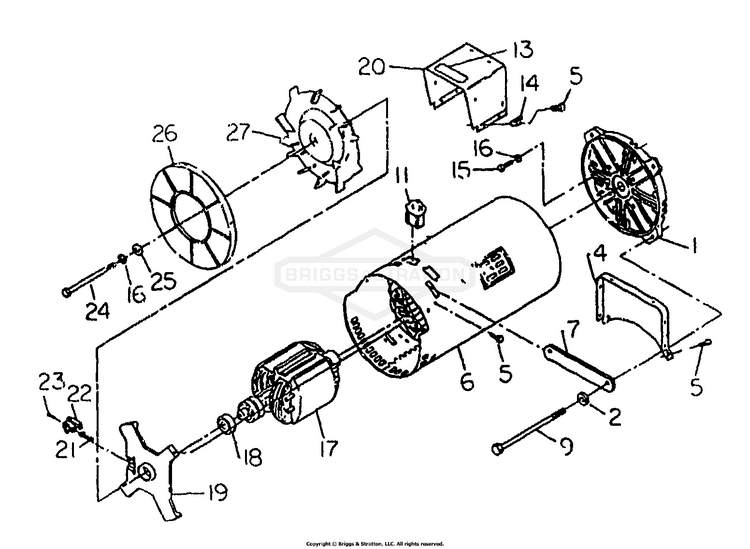

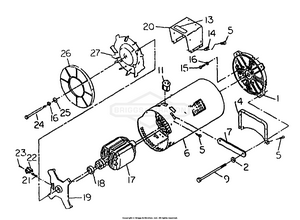

AC Generator No. 69910-A

...
...
1
HOUSING, Engine Adapter BS-60220F
...
2
CAP BS-5022097SM
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR BS-69903A
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395H
...
11
RECTIFIER, Bridge BS-28293
...
13
DECAL - Data BS-68720C
...
14
LUG, Grounding BS-25433
...
15
CAPSCREW, Hex Head - 5/16"-24 X 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR BS-68397A
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
SCREW BS-24421GS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331

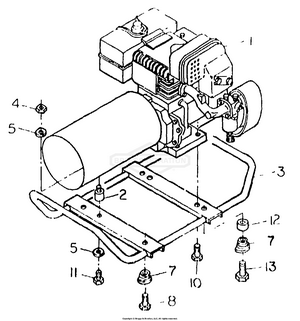

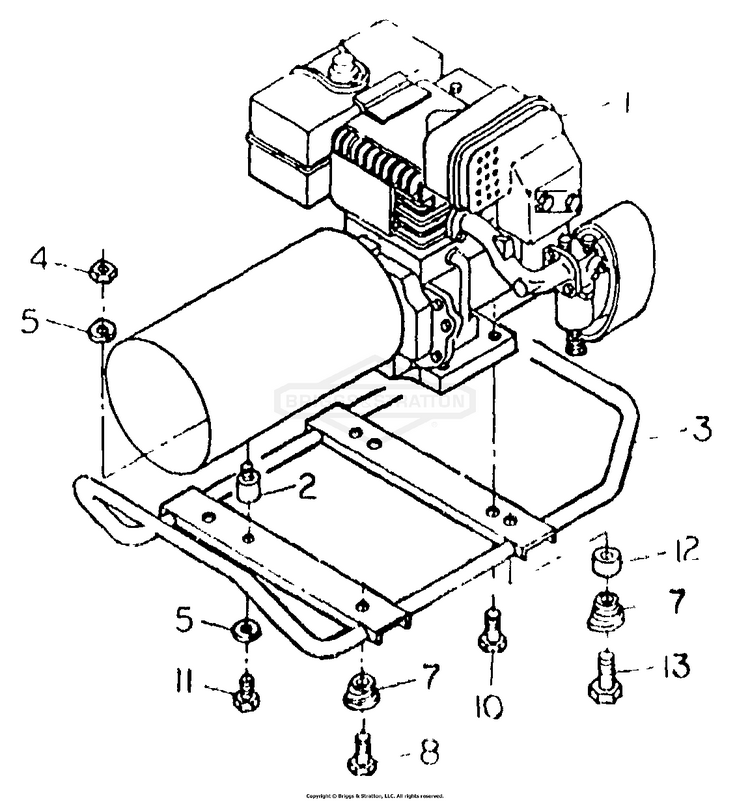

Cradle No. 68722-A

...
...
1
ENGINE- Tecumseh HM-80 BS-69649
...
2
DAMPENER, Vibration BS-40479
...
3
CRADLE ASSY BS-68395E
...
4
NUT, Hex - 1/4"-20 BS-22127
...
5
CAP BS-5022097SM
...
7
SPRING (Plain) BS-23594
...
8
SCREW- 5/16"-18 x 1/2" BS-24910
...
10
SCREW- 3/16"-18 x 3/4" BS-59637
...
11
SCREW- 1/4"-20 x 3/8" BS-36949
...
12
SPACER- 1/2" long BS-22550J
...
13
SCREW- 5/16"-18 x 1" BS-24490

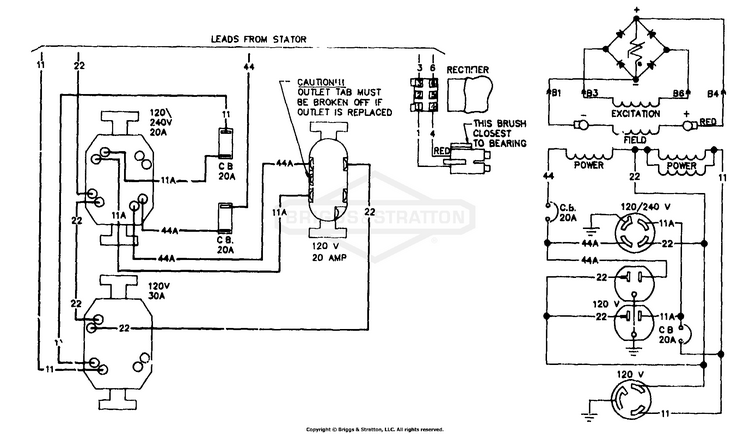

Electrical Schematic & Wiring Diagram No. 69905

...

No Parts Available for this Schematic

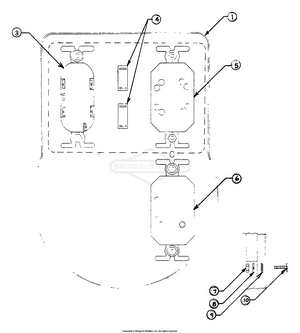

Receptacle Panel No. 69909

...
...
1
PANEL, Control (Silkscreened) BS-69901
...
3
OUTLET, 20A,120V BS-68759GS
...
4
BREAKER, Circuit- 120 Volts, 20 Ampere BS-66819
...
5
OUTLET, 120/240V Locking, 20A BS-68867GS
...
6
OUTLET-120V TL30A BS-705932
...
7
NUT, #8-32 BS-22471GS
...
8
WASHER, Lock- No.8 BS-22264
...
9
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
10
SCREW BS-797483
...
PLUG, 250V, 30A (optional) - for use with item 5 BS-43438GS
...
PLUG, 125V 30A 3-Prong (optional) - for use with item 6 BS-100523GS
...
...
...
