5565-2 Briggs and Stratton Portable Generator C8000, 8,000 Watt

Model: 5565-2

Save
 Part Not Listed?Part Not Listed?
product name

Control Panel No. 80998

...
...
1
Control Panel BS-79720
...
2
Control Panel Cover BS-79223
...
3
120/240 volt, 30 amp Twistlock BS-43437
...
4
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
5
OUTLET-120V TL30A BS-705932
...
7
Connector BS-63933
...
8
Field Boost Assembly BS-77244
...
9
OUTLET, 50A, 240V BS-74191GS
...
12
NUT, M4-0.7 Hex BS-51715GS
...
NUT, M4-0.7 Hex BS-51715GS
...
13
M6 Lock Washer BS-22264
...
M6 Lock Washer BS-22264
...
14
SCREW BS-80077GS
...
15
M4-0.7 x 10mm Screw BS-75475
...
M4-0.7 x 10mm Screw BS-75475
...
16
Thumb Control Lever BS-5043180B
...
Thumb Control Lever BS-5043180B
...
17
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
19
BREAKER, Circuit BS-75207DGS
...
20
BREAKER-CIRCUIT 30A BS-706178
...
21
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
22
CRIMPTITE, #8-18X1/4L BS-63036GS
...
24
AC Voltage Regulator BS-81918
...
25
NUT, M5 x 0.8 BS-51716GS
...
26
WASHER, M5 Lock BS-49226GS
...
27
M5-0.8 x 30mm Screw BS-79224
...
35
Thermal Relay BS-77314
...
36
BRKR, CRCT, 10A BS-75207BGS
...
37
BREAKER-CIRCUIT 20A BS-209872GS
...
40
120 volt, 20 amp Twistlock BS-74190
...
42
ASSY, PCB, IDLE CNTRL BS-67632DGS
...
43
ASSY, TRNSFRMR BS-77278CGS
...
44
Toggle Switch BS-55869
...
45
Idle Control Decal BS-76255

Cradle No. 86436

...
...
1
Battery Tray BS-80750
...
2
Starter Switch BS-77282
...
3
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
4
Gas Tank Heat Shield (I/C models) BS-78518
...
Gas Tank Heat Shield (models without I/C) BS-77316
...
5
Engine Support BS-77304
...
6
SPPRT, ALT BS-78512GS
...
7
HARNESS, Ignition Wiring (Briggs Engines) BS-7073715YP
...
8
Manual Start Cradle BS-80943
...
Electric Start Cradle BS-80943A
...
9
1/4"-20 Hex Nut BS-22127
...
10
Heat Deflecting Shield BS-78513
...
11
Fuel Shutoff Valve BS-86357
...
12
Fuel Cap Gauge BS-76272
...
13
No. 10-24 x 5/8" Self-drilling Screw BS-75494
...
14
SCREW-M8 x 16 BS-42568GS
...
15
NUT-M6 FLANGE BS-52857GS
...
17
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
18
WASHER, Lock BS-22129GS
...
19
HHCS, M8 x 20 BS-39253GS
...
21
WHEEL ASSEMBLY BS-84010756
...
22
LOCKWASHER, SPLIT 3/8 BS-703454
...
23
DECAL, ProCut Z Text BS-5022241
...
24
TAPTITE BS-75246GS
...
25
CRIMPTITE, #8-18X1/4L BS-63036GS
...
26
MNT, VBRTN, 30 DURO BS-35097GS
...
28
WSHR, SHKPRF, INT 3/8 BS-22261GS
...
30
CAP BS-5022097SM
...
31
Lifting Bar BS-80949
...
32
SCREW BS-39287GS
...
33
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
34
Washer, .34 x 1 x 10 BS-50190GS
...
35
15 HP V-Twin Engine (manual start) BS-85109
...
15 HP V-Twin Engine (electric start) BS-85110
...
56
Battery-(+)-to-Switch Assembly Cable BS-53621123
...
57
Starter-to-Switch Assembly Cable BS-53621122
...
58
Ground-to-Battery Cable BS-53621124
...
59
HHCS, 1/4-20 X 7 BS-45000GS
...
60
CONTROL, Hydro, Right BS-5044951B
...
61
HANDLE BS-84010594
...
62
M8-1.25 x 70mm Hex Head Capscrew BS-52203
...
63
M8-1.25 x 40mm Hex Head Capscrew BS-57821
...
64
Engine Mount BS-80946
...
65
Alternator Mount BS-80947
...
66
Cradle Sides BS-80944
...
67
Cradle Support BS-80943
...
68
Left Cradle Side BS-64768

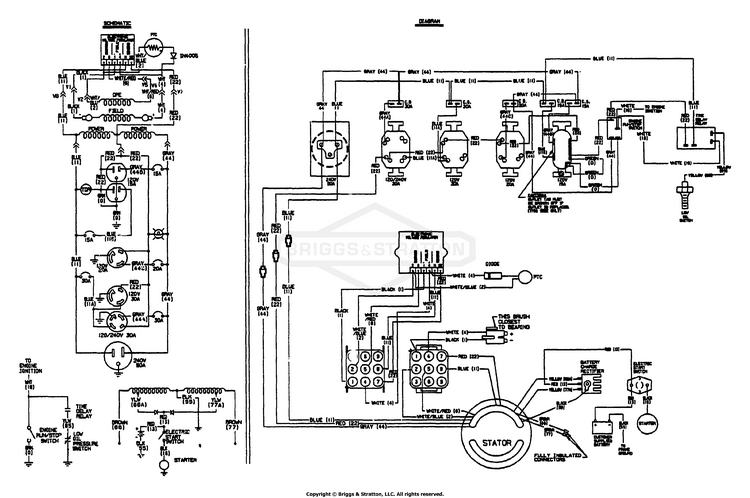

Electrical Schematic & Wiring Diagram No. 80266

...

No Parts Available for this Schematic

Generator No. 86435

...
...
1
WASHER, Lock BS-22129GS
...
2
5/16-24 x 3/4" Capscrew BS-22336
...
3
HOUSING, Engine Adapter BS-66365GGS
...
4
Rotor Assembly BS-77308
...
5
BEARING BS-65791GS
...
6
Flat Washer (special) BS-67451
...
7
HHCS, 5/16-24 X 11 BS-51810GS
...
8
Stator Assembly BS-77260
...
9
Rear Bearing Carrier BS-66825
...
10
GROMMET, RUBBER BS-67022GS
...
11
BOLT BS-66449LGS
...
12
CAP BS-5022097SM
...
13
RECTIFIER, BATTERY CHARGE BS-65795GS
...
14
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
15
Brush Holder Assembly BS-80812
...
16
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
18
Grounding Lug BS-25433
...
19
COVER, Bearing Carrier BS-B4871GS
...
20
WIRE-A, 12AWG, BLK, #0, 133MM BS-11853621GS
...
21
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
21
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
22
Alternator Wrapper BS-81887D
...
23
SCREW, M5 x 0.8 x 12 BS-52618GS
...
24
NUT, LOCKING-M5 BS-52856GS
...
25
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
26
WASHER, #10 M5 Flat BS-23897GS
...
...
...
