5501-1 Briggs and Stratton Portable Generator T2411, 2,400 Watt

Model: 5501-1

Save
 Part Not Listed?Part Not Listed?
product name

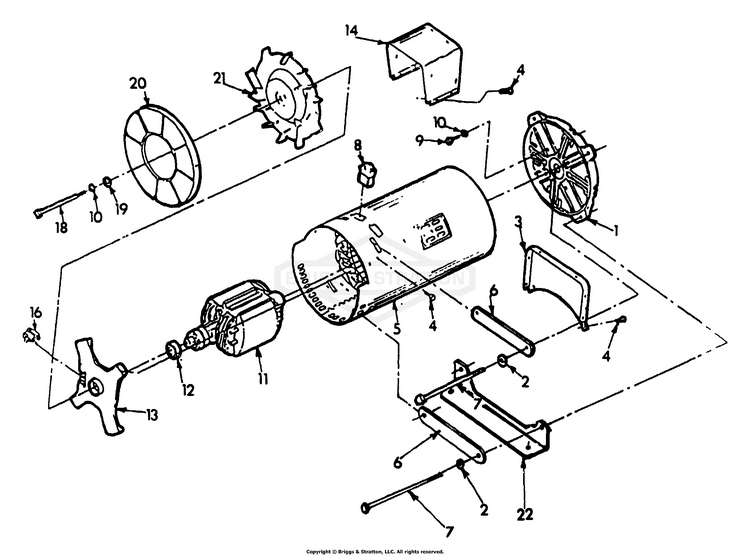

A-C Generator No. 78969

...
...
1
Engine adapter housing BS-60220D
...
2
CAP BS-5022097SM
...
3
(C) WELD PIVOT ARM BS-7043874YP
...
4
No. 10-32 x 3/8" Screw BS-24489
...
5
Stator assembly BS-75970
...
6
Stator bolt bar BS-44338
...
7
Stator bolt BS-75980
...
8
Bridge rectifier assembly BS-28293
...
9
5/16"-24 x 3/4" Hex head capscrew BS-22336
...
10
WASHER, Lock BS-22129GS
...
11
Rotor assembly BS-75975
...
12
Rotor bearing BS-24049
...
13
Bearing carrier BS-44943
...
14
Panel shroud BS-75971
...
16
HLDR, BRUSH, UNIV BS-23877DGS
...
18
5/16"-24 x 6-3/4" long Rotor bolt BS-75976
...
19
Washer, .34 x 1 x 10 BS-50190GS
...
20
CVR, FAN, PLSTC BS-44357GS
...
21
Cooling fan BS-44331
...
22
Generator support BS-77701

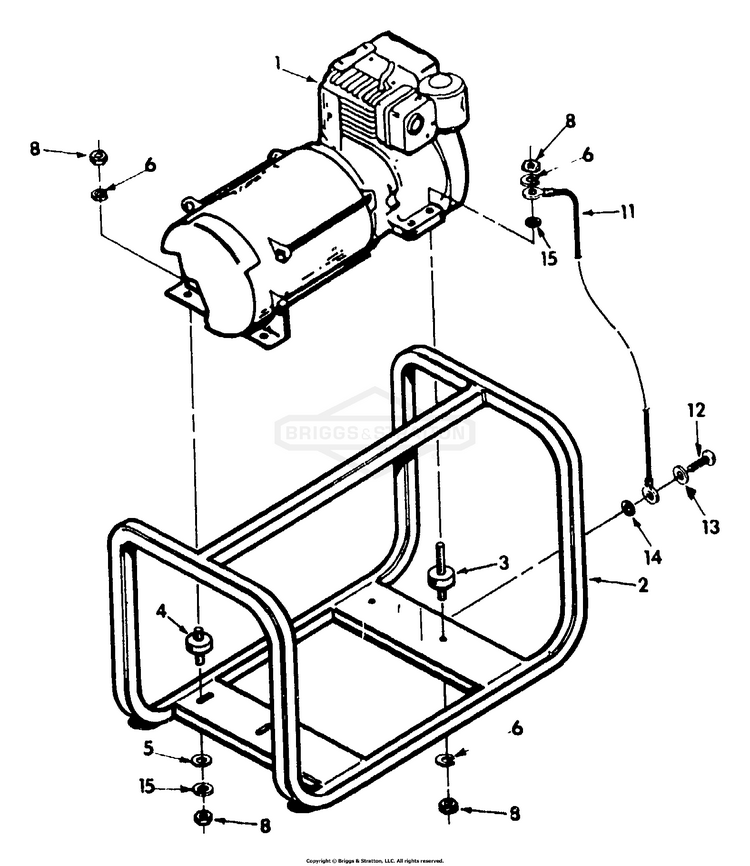

Cradle Assembly No. 79558

...
...
1
BEARING, STRAIGHT (Model 5500-0 Only) BS-7076515YP
...
HRN TACH MAIN (Model 5501-0 Only) BS-7078257YP
...
2
Cradle assembly BS-75967
...
3
Engine vibration mount BS-66443A
...
4
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
6
WASHER, Lock BS-22129GS
...
8
SKID PLATE BS-5045771B
...
11
4 Inch long Wire assembly BS-10953621
...
12
TRILOBLAR, 8-32 x 3/8 BS-24911GS
...
13
WASHER BS-38150GS
...
14
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
15
WASHER, 5/16" Ext. Shakeproof BS-27482GS

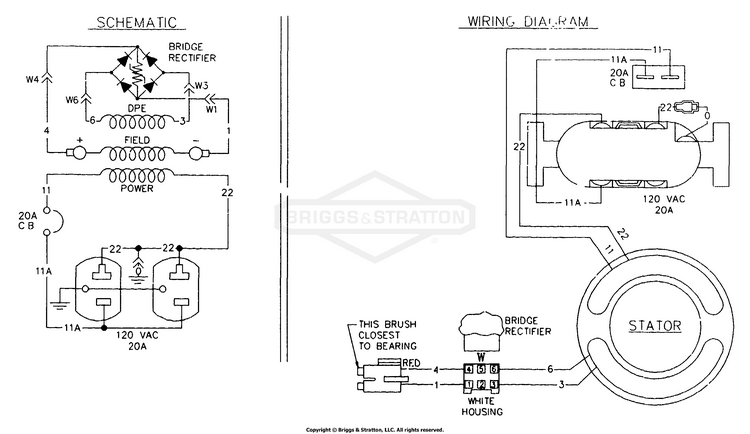

Electrical Schematic & Wiring Diagram No. 74193

...

No Parts Available for this Schematic

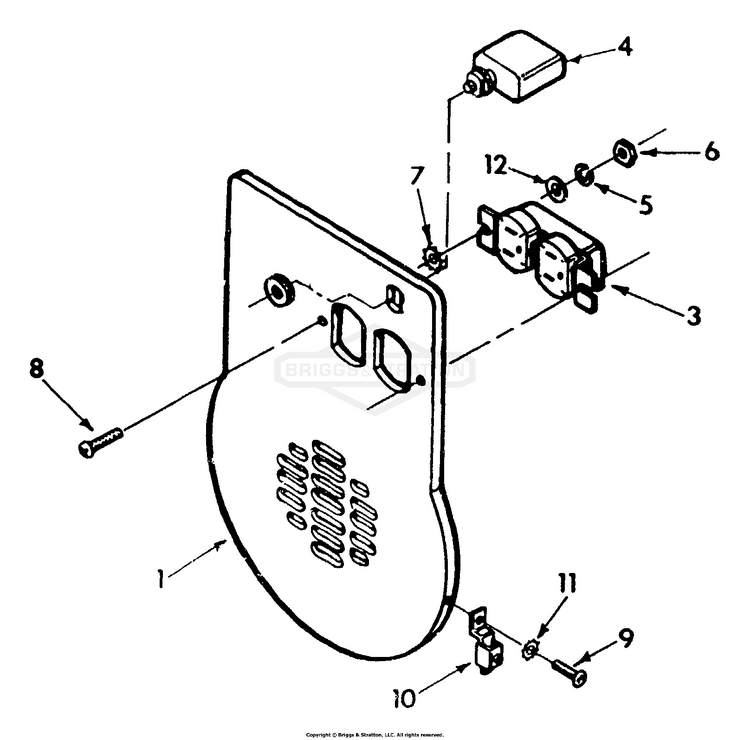

Receptacle Panel No. 79559

...
...
1
Receptacle Panel BS-75968
...
3
OUTLET, 20A,120V BS-68759GS
...
4
BREAKER-CIRCUIT 20A BS-209872GS
...
5
M4 Lockwasher BS-22264
...
6
NUT, M4-0.7 Hex BS-51715GS
...
7
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
8
M4-0.70 x 10mm Pan head machine screw BS-75475
...
9
No. 10-32 x 3/8" Screw BS-24489
...
10
Grounding Lug BS-25433
...
11
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
12
WASHER BS-38150GS
...
...
...
