1887-0 Briggs and Stratton Portable Generator ProPlus 2200

Model: 1887-0

Save
 Part Not Listed?Part Not Listed?
product name

Alternator & Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102059GS
...
4
FAN ROTOR SINCRO R80 BS-102046GS
...
5
ROTOR SINCRO R80 BS-102056GS
...
6
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
7
ROTOR BOLT 195MM BS-102057GS
...
10
BEARING ROTOR BS-102063GS
...
11
STATOR SINCRO R80 AUSTRALIAN BS-102479GS
...
13
COWLING ALTERNATOR R80 BS-102060GS
...
15
BOLT STATOR M5*204MM BS-102088GS
...
16
END COVER ALTERNATOR R80 BS-102061GS
...
18
SCREW SELF TAPPPHD #8*5/8" BZP BS-102023GS
...
19
CAPACITOR CLIP R80 BS-102082GS
...
20
CAPACITOR 16UF BS-102053GS
...
21
OUTLET AUSTRALIAN 10A/240V BS-102481GS
...
22
CIRCUIT BREAKER 10A BS-102132GS
...
23
OUTLET PANEL BLANK R80 AUSTRALIA BS-102476GS
...
24
ALTERNATOR SINCRO R80 AUSTRALIAN 240V/50HZ BS-102697GS
...
26
OUTLET PANEL COMPLETE R80 AUSTRALIAN OUTLETS BS-102694GS

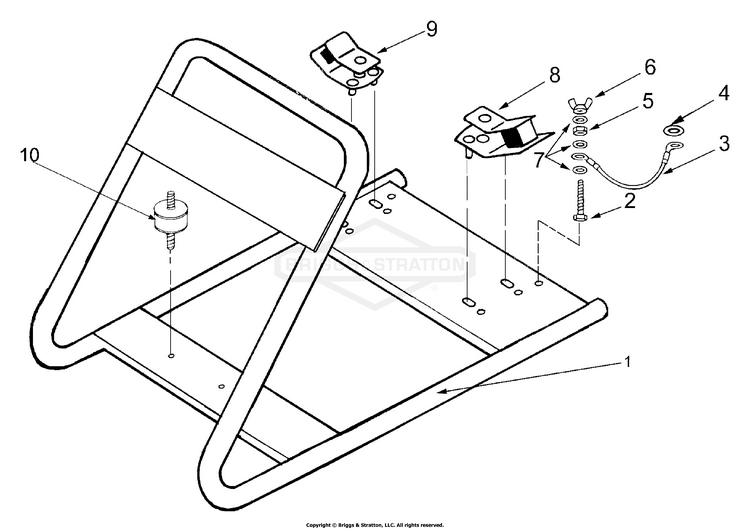

Frame And Fittings

...
...
1
FRAME CARRY HANDLE FRAME BS-102767GS
...
3
LEAD EARTH ASSY 145MM BS-102050GS
...
6
NUT WING M6-1.0 BS-102036GS
...
8
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
9
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
10
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL PRO PLUS 2200 (Not Illustrated) BS-102766GS
...
--
MANUAL OWNERS BS2012 (Not Illustrated) BS-102065GS
...
--
LEAFLET B&S AUSTRALIAN SERVICE DIRECTORY (Not Illustrated) BS-102701GS

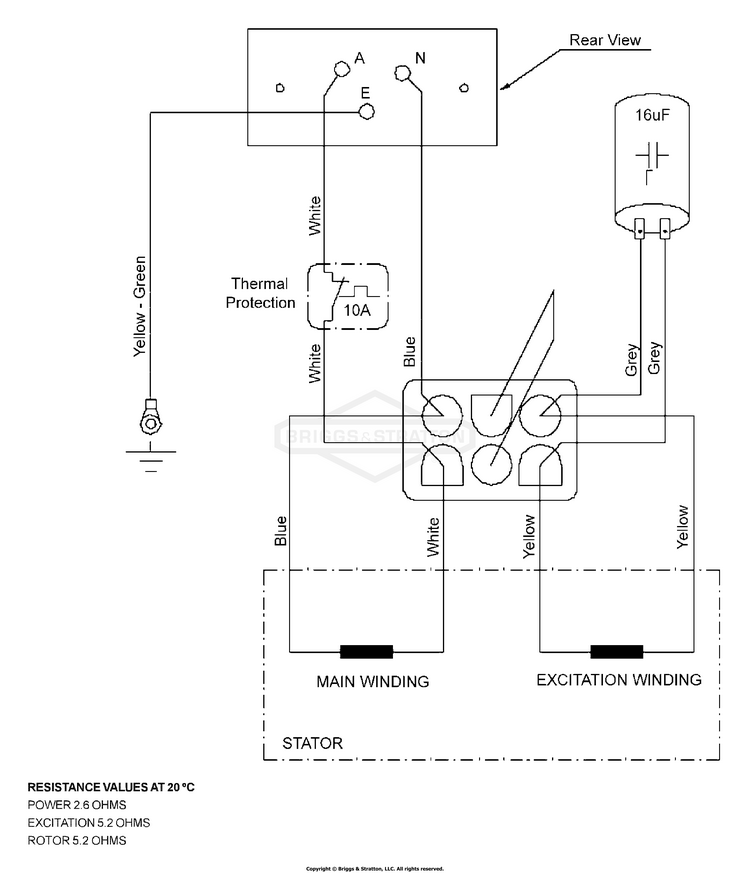

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
