1742-0 Briggs and Stratton Portable Generator G-Force 3200

Model: 1742-0

Save
 Part Not Listed?Part Not Listed?
product name

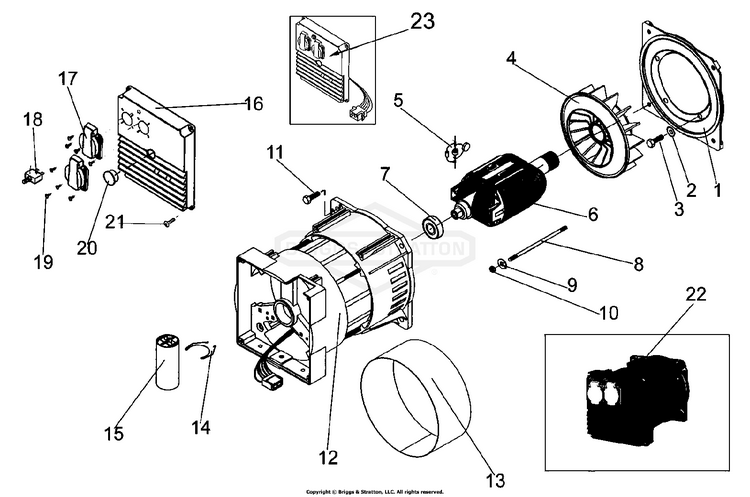

Alternator Outlet Panel

...
...
1
FLANGE PLATE BS-102051GS
...
2
WASHER SPRING M8 & 5/16" BS-~NSP
...
3
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
4
ROTOR FAN SINCRO BS-102073GS
...
5
DIODE AND VARISTOR SET BS-102054GS
...
6
ROTOR ASSY SINCRO EP3.0 BS-102080GS
...
7
ROTOR BEARING BS-102038GS
...
8
ROTOR BOLT BS-102074GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
SCREW SET 5/16"UNF X 3/4" BS-~NSP
...
12
STATOR ASSY SINCRO EP3.0 BS-102078GS
...
13
STATOR COVER BAND EP3.0 BS-~NSP
...
14
CAPACITOR CLIP BS-~NSP
...
15
CAPACITOR 20UF BS-102277GS
...
16
OUTLET PANEL BLANK BS-102075GS
...
17
SOCKET OUTLET G/S BS-102030GS
...
18
CIRCUIT BREAKER 12A BS-102049GS
...
19
SCREW PLASTITE PPHD NO6 * 3/8" BS-~NSP
...
20
END CAP PLASTIC PLUG BS-102085GS
...
21
SCREW MC PPHD M5*10MM BS-~NSP
...
22
ALTERNATOR SINCRO EP3.0 G/S BS-102064GS
...
23
OUTLET PANEL COMPLETE EP3.0 BS-102093GS

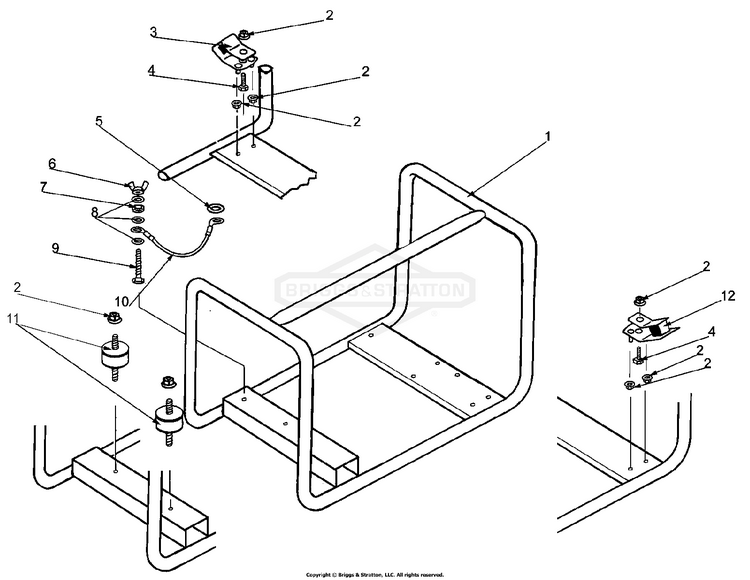

Frame And Fittings

...
...
1
CRADLE YELLOW BS-102632GS
...
2
NUT FLANGE M8-1.25 BS-~NSP
...
3
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
4
SCREW SET M8-1.25*35MM BS-~NSP
...
5
WASHER SHAKEPROOF M8 INT BS-~NSP
...
6
NUT WING M6-1.0 BS-102036GS
...
7
NUT FULL M6-1.0 BS-~NSP
...
8
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
9
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
10
LEAD EARTH ASSY 145MM BS-102050GS
...
11
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
12
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL G-FORCE 3200 (Not Illustrated) BS-102633GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS

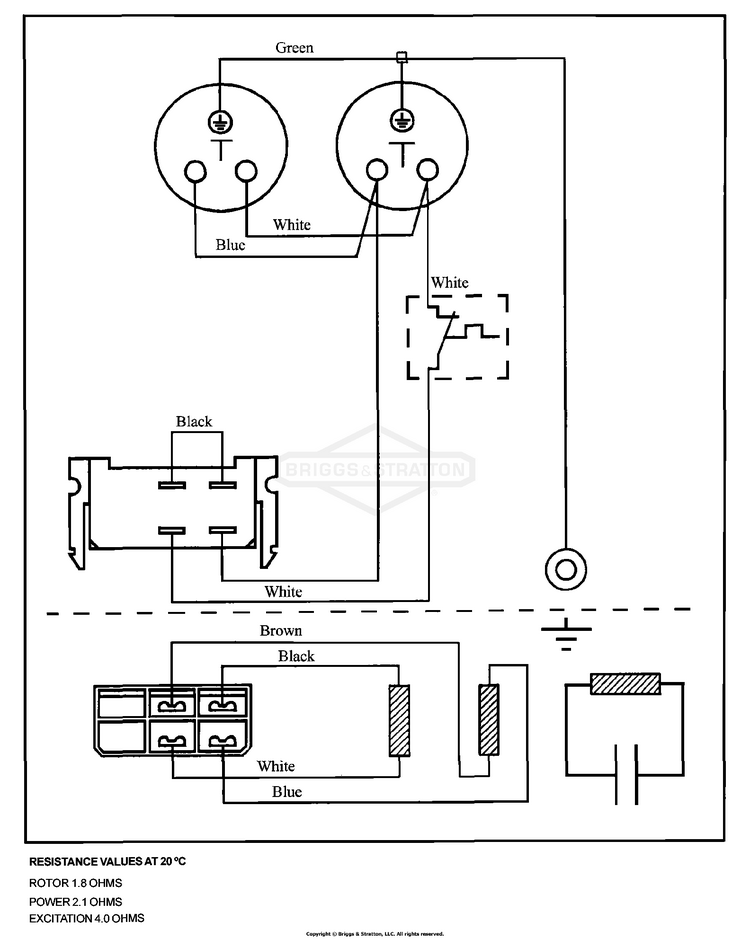

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
