1676-1 Briggs and Stratton Pressure Washer 2,700 PSI

Model: 1676-1

Save
 Part Not Listed?Part Not Listed?
product name

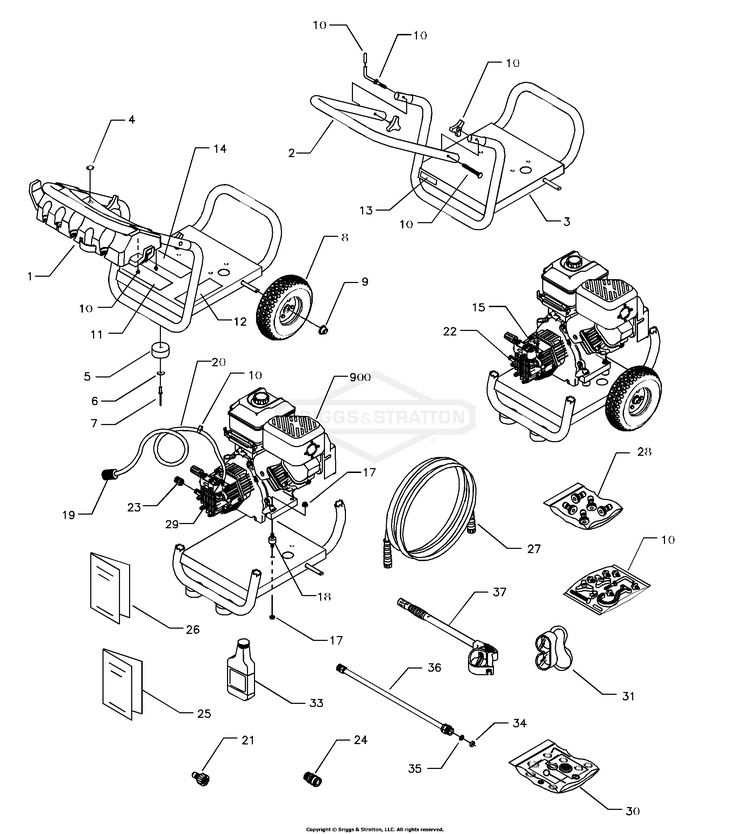

Main Unit

...
...
1
DECALS/BILLBOARD, 1676-0 BS-190185GS
...
2
HANDLE, Powder Coat Red BS-A187602GS
...
3
BASE BS-P190156GS
...
4
GROMMET BS-30809GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
6
WASHER, Flat BS-71693GS
...
7
BLIND RIVET BS-188194GS
...
8
WHEEL BS-209636GS
...
9
PUSHNUT BS-194062GS
...
10
KIT, HNDL, FSTNNG, SRV BS-191429GS
...
11
DECAL, Quick Reference BS-187918GS
...
12
DECAL, Start Instructions BS-187916GS
...
13
DECAL, Cool Down System BS-187952GS
...
14
DECAL, Warning/Danger BS-187915GS
...
15
TAG, Breather Cap BS-B1288GS
...
17
NUT, Flange Serrated BS-67989GS
...
18
MOUNT, Rubber Shock BS-21217GS
...
19
FILTER-CHEM HOSE BS-709496
...
20
HOSE-CHEMICAL BS-705076
...
21
KIT,QC,METRIC BS-312981GS
...
22
ASSEMBLY, Pump (See "Pump" illustration and parts list.) BS-B4148EGS
...
23
CONNECTOR, Garden Hose BS-21424GS
...
24
KIT,QC,METRIC BS-312981GS
...
25
MANUAL, Owners BS-191295GS
...
26
MANUAL, Engine BS-B3297GS
...
27
HOSE-PRESSURE BS-206192GS
...
28
KIT, NZZL, QC, SRV BS-191430GS
...
29
CLAMP, Hose BS-48031GGS
...
30
KIT, Maintenance, O-Ring BS-191922GS
...
31
GOGGLES, Safety BS-87815GS
...
33
BOTTLE, Oil BS-100005
...
34
O-RING, Hi Pressure BS-97837GS
...
35
SCREEN, Gun Inlet BS-B4224GS
...
36
EXTENSION BS-B3858GS
...
37
GUN, High Pressure BS-190049GS
...
900
ENGINE BS-~NSP

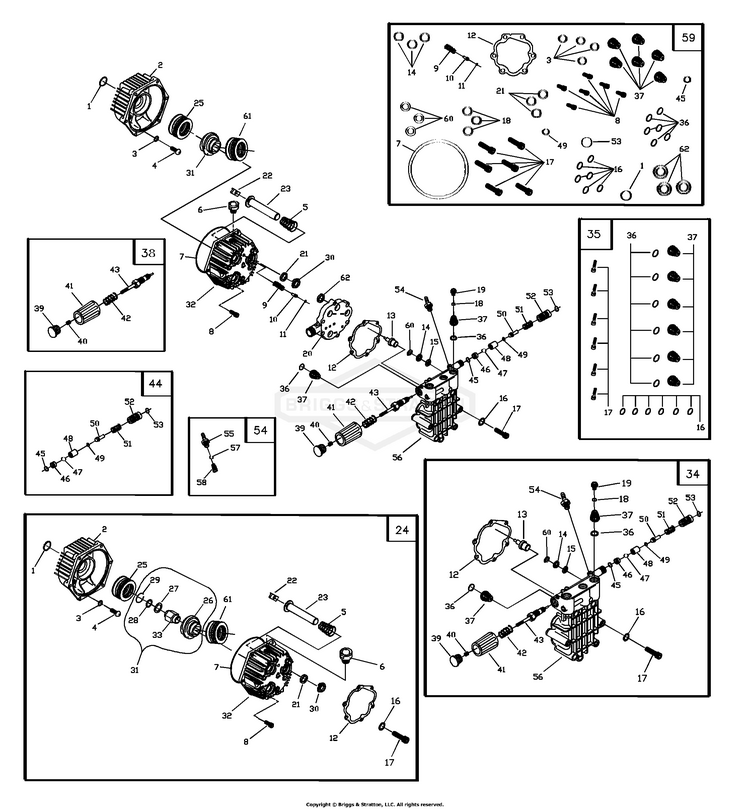

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW, Button Hd BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
CAPSCREW, Socket Head BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
O-RING, Thermal By-Pass BS-93876GS
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT, Head BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-93680GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSEMBLY, Ceramic Piston & Cap BS-99427GS
...
24
KIT, Crankcase Service kit includes all parts shown within the box. BS-191315GS
...
34
KIT, Complete Head Service kit includes all parts shown within the box. BS-185752GS
...
35
KIT, Check Valve Service kit includes all parts shown within the box. BS-185933GS
...
38
KIT, Unloader Spindle Service kit includes all parts shown within the box. BS-B3479GS
...
44
KIT, High Pressure Outlet Service kit includes all parts shown within the box. BS-B3510GS
...
54
KIT, Chemical Injector Service kit includes all parts shown within the box. BS-185943GS
...
59
KIT, O-Ring Sea Is Service kit includes all parts shown within the box. BS-185926GS
...
...
...
