product name

1674-0 Briggs and Stratton Pressure Washer 2,300 PSI

Model: 1674-0

Save
 Part Not Listed?Part Not Listed?
product name

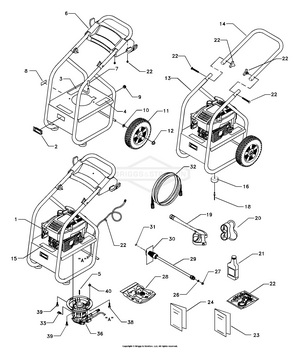

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
HANDLE, Lift BS-187878GS
...
3
DECAL,Warning/Decal BS-187915GS
...
4
DECAL, Start Instructions BS-187916GS
...
5
KEY BS-23139GS
...
6
DECALS/BILLBOARD BS-190143GS
...
7
CAP,Vinyl, Black BS-B2516GS
...
8
DECAL, Cool Down BS-187952GS
...
9
GROMMET BS-30809GS
...
10
WASHER BS-49808GS
...
11
TIRE BS-B2142GS
...
12
NUT, Push BS-190146GS
...
13
BASE BS-A187619GS
...
14
HANDLE BS-A187602GS
...
15
DECAL, Quick Reference BS-187918GS
...
16
MOUNT,Vibe BS-191413GS
...
18
RIVET, Blind BS-188194GS
...
19
GUN, High Pressure BS-B3263GS
...
20
GOGGLES, Safety BS-87815GS
...
21
BOTTLE, Oil BS-100005
...
22
KIT, Handle Hardware BS-187623GS
...
23
MANUAL, Owners BS-190134GS
...
24
MANUAL, Engine BS-191457GS
...
26
SCREEN, Inlet BS-B4224GS
...
27
O-RING, Hi - Pressure BS-97837GS
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
WAND,Adjustable Nozzle BS-B3335GGS
...
30
HANG TAG, Nozzle BS-97566GS
...
31
NOZZLE BS-190605GS
...
32
HOSE BS-B5642GS
...
33
VALVE, Thermal Relief BS-208673GS
...
36
ASSY, Pump (See "Pump" illustration and parts list.) BS-189970GS
...
38
SCREW BS-A2013GS
...
39
SCREW BS-190750GS
...
40
NUT BS-52858GS

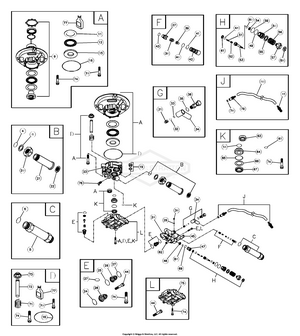

Pump

...
...
19
CAP, Oil BS-190571GS
...
23
CARTER BS-190626GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190586GS
...
A
KIT,WOBBLE PLATE BEARING Service kit includes all parts shown within the box. BS-190709GS
...
B
KIT,WATER INLET,ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
D
KIT, PISTON Service kit includes all parts shown within the box. BS-190710GS
...
E
KIT,CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-190596GS
...
...
...
