1596-0 Briggs and Stratton Portable Generator G-Force 2800

Model: 1596-0

Save
 Part Not Listed?Part Not Listed?
product name

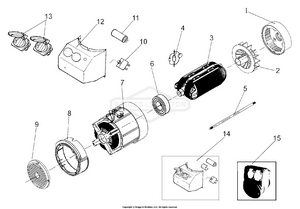

Alternator Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102059GS
...
2
FAN ROTOR SINCRO R80 BS-102046GS
...
3
ROTOR SINCRO R80 BS-102056GS
...
4
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
5
ROTOR BOLT SINCRO R80 BS-102057GS
...
6
BEARING ROTOR BS-102063GS
...
7
STATOR SINCRO R80 BS-102058GS
...
8
COWLING ALTERNATOR R80 BS-102060GS
...
9
END COVER ALTERNATOR R80 BS-102061GS
...
10
CIRCUIT BREAKER 10A BS-102132GS
...
11
CAPACITOR 16UF BS-102053GS
...
12
OUTLET BOX BLANK (NO FITTINGS) BS-102469GS
...
13
SOCKET OUTLET BS-102030GS
...
14
OUTLET BOX SINCRO VERTICAL G/S BS-102470GS
...
15
ALTERNATOR SINCRO R80 VERTICAL BS-102484GS

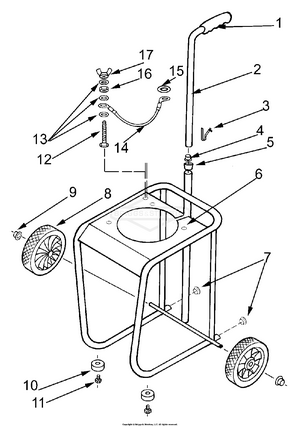

Frame And Fittings

...
...
1
GRIP BLACK (HANDLE GRIP) BS-102625GS
...
2
HANDLE (VT FRAME) BS-102622GS
...
3
SPRING CLIP 7/8" TUBE BS-102584GS
...
4
PLUG BLACK 7/8" / 18SWG TUBE BS-102623GS
...
5
ANTI RATTLE RING BS-102624GS
...
6
CRADLE YELLOW BS-102621GS
...
7
PLUG BLACK 7/8" / 18SWG TUBE BS-102623GS
...
8
WHEEL 7" BS-102461GS
...
9
PUSHNUT BS-102462GS
...
10
VIBRATION MOUNT EG SERIES BS-102463GS
...
11
SCREW MACHINE HHD M8-1.25*16MM BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
14
LEAD EARTH ASSY 125MM BS-102378GS
...
15
WASHER SHAKEPROOF M8 INT BS-~NSP
...
16
NUT FULL M6-1.0 BS-~NSP
...
17
NUT WING M6-1.0 BS-102036GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL G-FORCE 2800 (Not Illustrated) BS-102628GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS

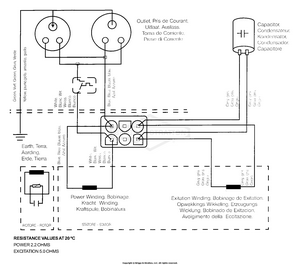

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
