1575-0 Briggs and Stratton Portable Generator 3,100 Watt

Model: 1575-0

Save
 Part Not Listed?Part Not Listed?
product name

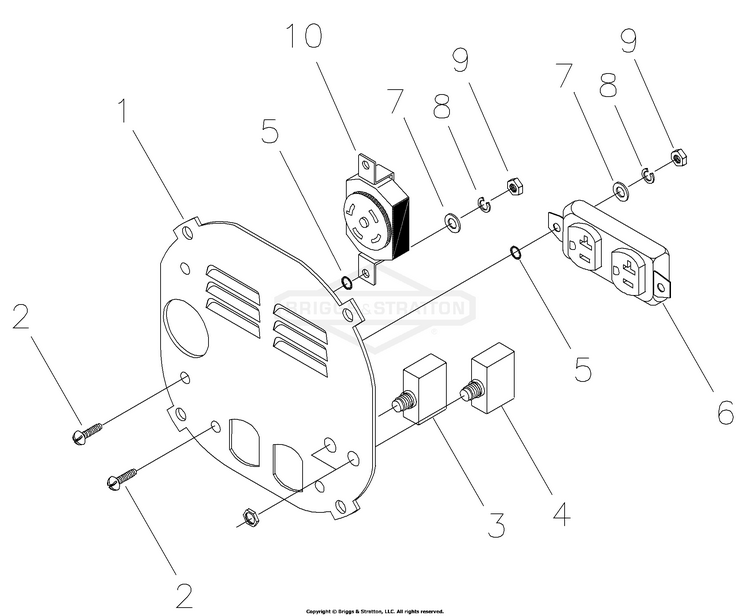

Control Panel

...
...
1
COVER, Control Panel BS-B95600
...
2
PPHMS, M4 0.7 x 10 BS-75475
...
3
BREAKER, Circuit BS-94396BGS
...
4
Circuit Breaker, 15amp BS-94396AGS
...
5
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
6
OUTLET, 20A,120V BS-68759GS
...
7
WASHER BS-38150GS
...
8
WASHER, Lock #8 BS-22264
...
9
NUT, M4-0.7 Hex BS-51715GS
...
10
OUTLET, 120/240V Locking, 20A BS-68867GS

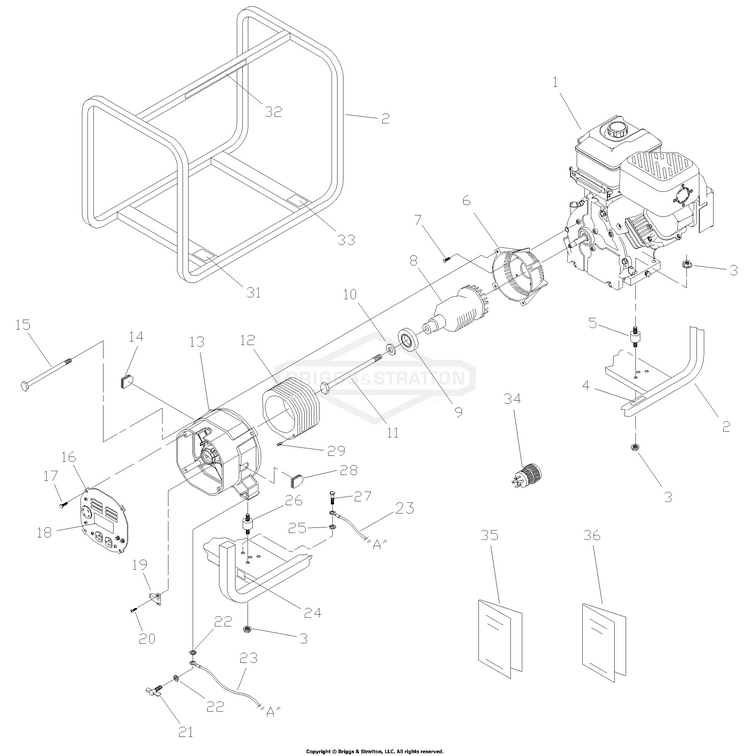

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
ASSEMBLY, Cradle BS-A188299
...
3
NUT, Hex Locking Flange M8 BS-67989GS
...
4
DECAL, Hot Muffler BS-77816GS
...
5
MOUNT,Vibration BS-85651GS
...
6
HOUSING, Engine Adapter BS-66365GS
...
7
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
8
ASSY, Rotor BS-188075GS
...
9
BEARING BS-65791GS
...
10
WASHER, M8 Flat BS-96796GS
...
11
HHCS, 5/16" - 24 x 7-7/8" BS-24823GS
...
12
ASSY, STATOR, 4000DPE90 BS-91838JGS
...
13
CARRIER, Rear Bearing BS-66825B
...
14
GROMMET, RUBBER BS-67022GS
...
15
HHCS, M6 - 1.0 x 115 SEMS BS-86308GS
...
16
Assy., Control Panel BS-95003AGS
...
17
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
18
DECAL, PNL, CNTRL, 3100 BS-188554GS
...
19
RECTIFIER, Brush & Bridge BS-91825
...
20
TAPTITE, M6-0.8 x 16 LG. BS-66849GS
...
21
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
23
WIRE, Ground BS-195373GS
...
24
DECAL, Ground BS-B4986GS
...
25
WASHER, #10 Ext. Shakeproof BS-23762GS
...
26
MOUNT-VIBRATION BS-194153GS
...
27
SCREW, 12-14 x 7/8 Self Drilling BS-B2153GS
...
28
GROMMET, Plastic RBC BS-84242GS
...
29
PIN, ROLL 4MM x 10 BS-81917GS
...
31
DECAL, Danger (English) BS-93639
...
32
DECAL, UNIT, GEN, 3100 BS-188555GS
...
33
DECAL, Start Instructions BS-99541
...
34
PLUG-120/240V TL20A BS-100522GS
...
35
MANUAL, Owners BS-188385
...
36
MANUAL, Engine BS-188637GS

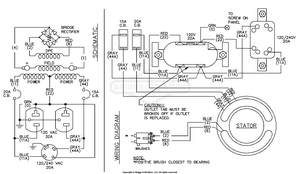

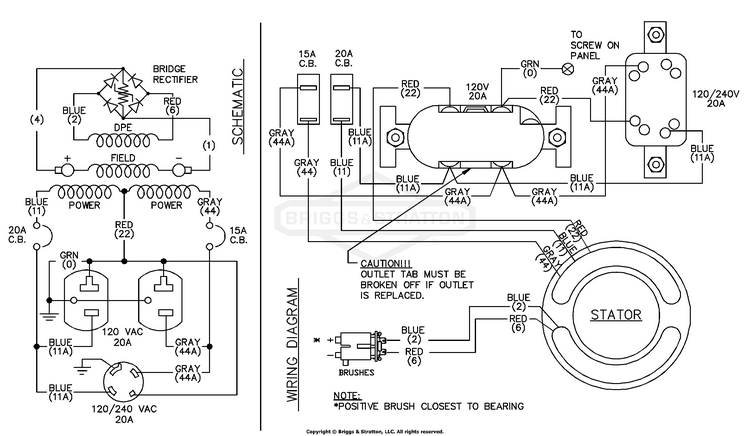

Wiring Diagram & Schematic

...
