1538-1 Briggs and Stratton Pressure Washer 2,500 PSI

Model: 1538-1

Save
 Part Not Listed?Part Not Listed?
product name

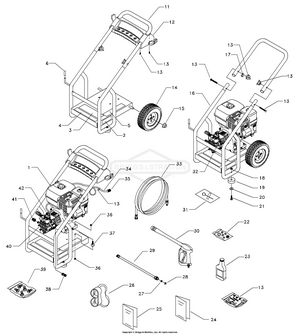

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
DECAL, Cool Down System BS-187952GS
...
3
DECAL, Start Instructions BS-187916GS
...
4
DECAL, Quick Reference BS-187918GS
...
5
DECAL, Warning/Danger BS-187915GS
...
6
CAP, Vinyl, Black BS-B2516GS
...
11
HANDLE, PW, Black BS-B187602
...
12
ASSY, BILLBOARD, 01538-1 BS-187753GS
...
13
KIT, Handle Hardware BS-187623GS
...
14
WHEEL BS-209636GS
...
15
PUSHNUT, 5/8" BS-75402CGS
...
16
BASE, HSPW, Black BS-B187616
...
17
CLAMP, Hose BS-B1232GS
...
18
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
19
VIBE MOUNT, with Washer BS-191413GS
...
20
Washer, .34 x 1 x 10 BS-50190GS
...
21
HHCS, M8 - 1.25 x 50 BS-51731
...
22
KIT, Maintenance, O-Ring BS-191922GS
...
23
BOTTLE, Oil BS-100005
...
24
MANUAL, Owners BS-187945
...
25
MANUAL, Honda Engine BS-185779
...
26
GOGGLES BS-87815GS
...
27
SCREEN, Gun Inlet BS-B4224GS
...
28
O-RING, Hi Pressure BS-97837GS
...
29
WAND, Nozzle BS-B3858
...
30
GUN, High Pressure BS-B3263AGS
...
31
KIT, Maintenance, O-Ring BS-191922GS
...
32
TAG, Breather BS-B1288GS
...
33
Hose BS-205734GS
...
34
HOSE-CHEMICAL BS-705076
...
35
FILTER-CHEM HOSE BS-709496
...
36
NUT, Hex Locking Flange M8 BS-67989GS
...
37
MOUNT, Rubber Shock BS-21217GS
...
38
QUICK CONNECT BS-185923GS
...
39
KIT, Nozzles QD BS-B4155GS
...
40
PUMP BS-317054GS
...
41
TRANSAXLE BS-84010384
...
42
CLAMP, Hose 13/32" BS-48031GGS

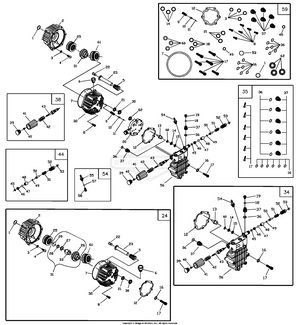

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-93680GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSY, Ceramic Piston & Cap BS-99427GS
...
24
KIT, Crankcase BS-185700GS
...
34
KIT, Complete Head BS-185752GS
...
35
KIT, Check Valve BS-185933GS
...
38
KIT, Unloader Spindle BS-B3479GS
...
44
KIT, High Pressure Outlet BS-B3510GS
...
54
KIT, Chemical Injector BS-185943GS
...
59
KIT, O-Ring Sea Is BS-185926GS
...
...
...
