1536-1 Briggs and Stratton Pressure Washer 2,100 PSI

Model: 1536-1

Save
 Part Not Listed?Part Not Listed?
product name

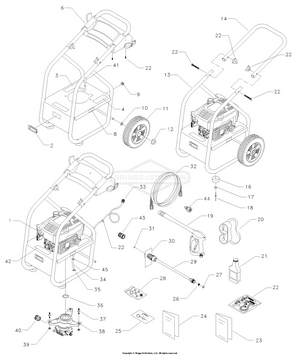

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
HANDLE, Lift BS-187878GS
...
3
DECAL, Warning/Decal BS-187915GS
...
4
DECAL, Start Instructions BS-187916GS
...
6
DECALS/BILLBOARD, 1536-1 BS-187613GS
...
8
DECAL, Cool Down BS-187952GS
...
9
GROMMET BS-30809GS
...
10
WASHER, M12 Flat BS-49808GS
...
11
TIRE, 2" X 9" Black Mag BS-B2142GS
...
12
PUSHNUT, 1/2" BS-75402GS
...
13
BASE, VSPW BS-D187619GS
...
14
HANDLE, PW BS-D187602GS
...
16
VIBE MOUNT, with Washer BS-191413GS
...
17
WASHER, Flat BS-71693GS
...
18
RIVET, Blind BS-188194GS
...
19
GUN, High Pressure BS-B3263GS
...
20
GOGGLES, Safety BS-87815GS
...
21
BOTTLE, Oil BS-100005
...
22
KIT, Handle Hardware BS-187623GS
...
23
MANUAL, Owners BS-187926GS
...
24
MANUAL, Operator's BS-380567TRI
...
25
KIT, Maintenance, O-Ring BS-191922GS
...
26
SCREEN, Gun Inlet BS-B4224GS
...
27
O-RING, Hi - Pressure BS-97837GS
...
28
KIT, O-Ring Maintenance BS-B5830GS
...
29
WAND-ADJUSTABLE BS-205015CGS
...
30
HANG TAG, Nozzle BS-97566GS
...
31
NOZZLE, 1.05 Yellow Replcmnt BS-21761GS
...
32
HOSE, 1/4" X 25' BS-B5693GS
...
33
FILTER-CHEM HOSE BS-709496
...
34
HOSE-CHEMICAL BS-705076
...
35
CLAMP, Hose Band BS-48031GGS
...
36
SEAL, Engine Donut BS-98300GS
...
37
STUD, Double Ended BS-B1735GS
...
38
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
39
NUT, M8 with Washer BS-B1880GS
...
40
CONNECTOR, Garden Hose BS-21424GS
...
41
CAP, Vinyl, Black BS-B2516GS
...
42
DECAL, Quick Reference BS-187918GS
...
43
KIT,QC,METRIC BS-312981GS
...
44
KIT,QC,METRIC BS-312981GS
...
45
CLAMP, Hose Band BS-48031BGS

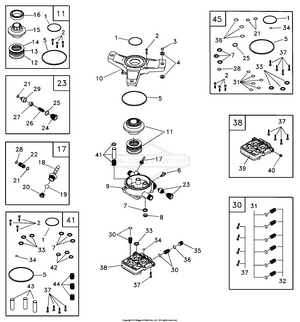

Pump

...
...
1
SEAL, Engine Donut BS-98300GS
...
2
SHCS, M6 - 1 x 25 BS-97962GS
...
3
SLEEVE, Grommet Spacer BS-96795GS
...
4
BUSHING, Rubber Mount BS-21429GS
...
5
O-RING, Housing Seal BS-97835GS
...
6
VALVE, Thermal Relief BS-208673GS
...
7
SEAL, Oil Piston 15 TC4 BS-93680GS
...
8
SPACER, Pilot BS-97831GS
...
9
HOUSING, Piston BS-B2702GS
...
10
ADAPTER, Engine BS-98227GS
...
11
KIT, AXIAL CAM SERV This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2310GS
...
17
KIT, CHEM INJECT This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185287GS
...
23
KIT, UNLOADER This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-187879GS
...
30
KIT, CHECK VALVES This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B3513GS
...
33
SEAL, Double-Lip BS-B5433GS
...
34
O-RING, Hi-Pressure Transfer BS-97837GS
...
35
CAP, Outlet Check Valve BS-97841GS
...
36
O-RING, Outlet CV Cap BS-97840GS
...
37
SHCS, M6-1.0 x 35 BS-40946GS
...
38
KIT, HEAD CASTING SFG BS-B4186GS
...
41
KIT, PISTON & SPRING This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B2312GS
...
45
KIT, O-RING/SEAL 2300 This item is a service kit and includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185714GS
...
...
...
