1509-1 Briggs and Stratton Portable Generator G-Force 1300

Model: 1509-1

Save
 Part Not Listed?Part Not Listed?
product name

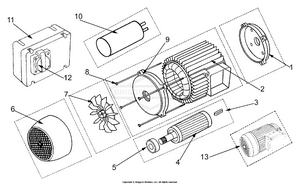

Alternator & Outlet Panel

...
...
1
FLANGE ALTERNATOR BS-102572GS
...
2
STATOR TEKEL 1KW BS-102573GS
...
3
WOODRUFF KEY NO 505 BS-102576GS
...
4
ROTOR TEKEL 1KW BS-102574GS
...
5
BEARING ROTOR TEKEL 1KW BS-102575GS
...
6
FAN GUARD TEKEL 1KW BS-102579GS
...
7
FAN TEKEL 1 KW BS-102577GS
...
8
BOLT STATOR M5*160MM BS-102591GS
...
9
BEARING CARRIER TEKEL 1KW BS-102578GS
...
10
CAPACITOR 40UF BS-102293GS
...
11
OUTLET BOX COMPLETE SOGA 1.2KW G/S BS-102581GS
...
12
SOCKET OUTLET BS-102030GS
...
13
ALTERNATOR TEKEL 1 KVA G/S (USE 102570GS) BS-102571GS
...
ALTERNATOR SOGA 1.2 KVA G/S BS-102570GS

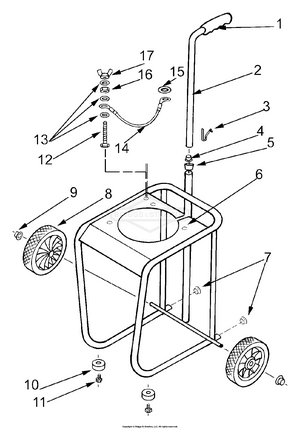

Frame And Fittings

...
...
1
GRIP 3/4" HANDLE BLACK BS-102465GS
...
2
FRAME HANDLE BS-102583GS
...
3
SPRING CLIP 7/8" TUBE BS-102584GS
...
4
FERRULE PLASTIC PLUG 3/4" TUBE BS-102467GS
...
5
ANTI-RATTLE RING BS-102582GS
...
6
FRAME CRADLE VT1400 BS-102586GS
...
7
PLUG BLACK 3/4"/16 SWG TUBE BS-102585GS
...
8
WHEEL 7" BS-102461GS
...
9
PUSHNUT BS-102462GS
...
10
VIBRATION MOUNT EG SERIES BS-102463GS
...
11
SCREW MACHINE HHD M8-1.25*16MM BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
14
LEAD EARTH ASSY 125MM BS-102378GS
...
15
WASHER SHAKEPROOF M8 INT BS-~NSP
...
16
NUT FULL M6-1.0 BS-~NSP
...
17
NUT WING M6-1.0 BS-102036GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL G-FORCE 1300 (Not Illustrated) BS-102589GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS

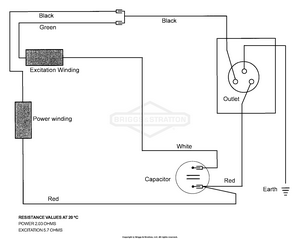

Panel Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
