1509-0 Briggs and Stratton Portable Generator G-Force 1300

Model: 1509-0

Save
 Part Not Listed?Part Not Listed?
product name

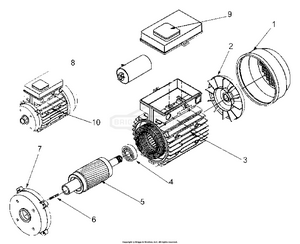

Alternator Outlet Panel

...
...
1
FAN COVER SOGA 1.2KW BS-102593GS
...
2
FAN SOGA 1.2KW BS-102594GS
...
3
STATOR ASSEMBLY SOGA 1.2KW BS-102595GS
...
4
BEARING ROTOR TEKEL 1KW BS-102575GS
...
5
ROTOR ASSEMBLY SOGA 1.2KW BS-102596GS
...
6
STUD 3/8" UNF * 1.5" BS-102597GS
...
7
FLANGE PLATE SOGA 1.2KW BS-102598GS
...
8
CAPACITOR 40UF BS-102293GS
...
9
SOCKET OUTLET BS-102030GS
...
10
ALTERNATOR SOGA 1.2KW VERTICAL BS-102570GS

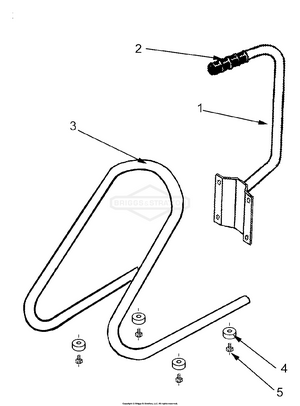

Frame And Fittings

...
...
1
HANDLE G-FORCE 1300 (SOGA ALTERNATOR) BS-102652GS
...
2
GRIP 7/8" HANDLE BS-102625GS
...
3
CRADLE G-FORCE 1300 (SOGA ALTERNATOR) BS-102653GS
...
4
VIBRATION MOUNT BS-102463GS
...
5
SCREW MACHINE HHD M8-1.25*16MM BS-10229GS
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL G-FORCE 1300 (Not Illustrated) BS-102589GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
MANUAL GENERIC-GFORCE (Not Illustrated) BS-102590GS

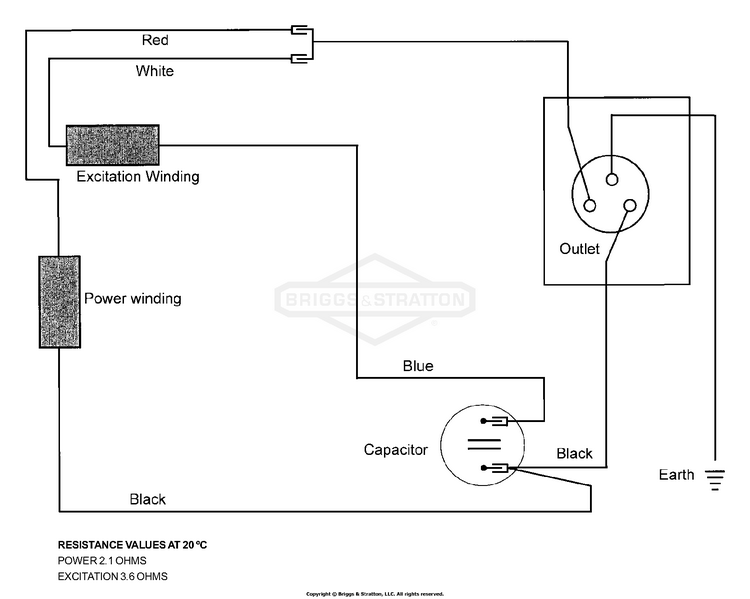

Panel Wiring Diagram

...
