product name

1456-0 Briggs and Stratton Pressure Washer 2,400 PSI

Model: 1456-0

Save
 Part Not Listed?Part Not Listed?
product name

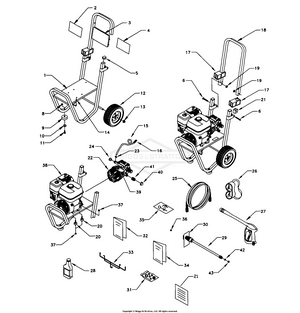

Main Unit

...
...
1
BASE, Black Powder Coat BS-BB5161
...
2
DECAL, UNIT, PW, 01456 BS-185783GS
...
3
BILLBOARD, Plastic BS-B1631AGS
...
4
DECAL, Instructions BS-B1932GS
...
5
CAP PLUG, Tubing BS-46476GS
...
6
BOLT, Carriage BS-31669GS
...
8
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
9
VIBE MOUNT, with Washer BS-191413GS
...
10
Washer, .34 x 1 x 10 BS-50190GS
...
11
SCREW BS-39287GS
...
12
WHEEL BS-209636GS
...
13
PUSHNUT, 5/8" BS-75402CGS
...
14
CAP, Vinyl Black BS-B1460GS
...
15
HOSE, Chemical Inject BS-A1040AGS
...
16
FILTER-CHEM HOSE BS-709496
...
17
COVER, Hinge BS-B1779GS
...
18
HNDL, PWDR CT, BLK BS-BB2534GS
...
19
NUT BS-194005GS
...
20
MOUNT, Rubber Shock BS-21217GS
...
21
MANUAL-OPERATOR BS-82347GS
...
2
PUMP BS-317054GS
...
23
CLAMP, Hose 13/32" BS-48031GGS
...
24
CAP, ADPTR, HP BS-97100GS
...
25
HOSE-PRESSURE BS-206192GS
...
26
GOGGLES BS-87815GS
...
27
GUN BS-704312
...
28
BOTTLE, Oil BS-100005
...
29
WAND, Adjustable Nozzle BS-188792AGS
...
30
TAG, Nozzle Instructions BS-97566GS
...
31
KIT, Maintenance, O-Ring BS-191922GS
...
32
MANUAL, Owners 1456-0 BS-185780
...
33
HANGER, Hose, Gun, Jug BS-B2168AGS
...
34
MANUAL, Engine Honda Gx BS-185779
...
35
KIT, Nozzle Cleaning BS-B2163
...
36
NOZZLE, Replacement BS-94804GS
...
37
NUT, Hex Locking Flange M8 BS-67989GS
...
38
ENGINE BS-~NSP
...
39
TAG, Breather BS-B1288GS
...
40
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
41
TRANSAXLE BS-84010384
...
42
SCREEN, Gun Inlet BS-B4224GS
...
43
O-RING, Hi Pressure BS-97837GS
...
44
CARD, Owners Registration BS-88681

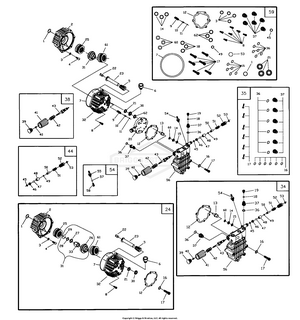

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-93680GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSY, Ceramic Piston & Cap BS-99427GS
...
24
KIT, Crankcase Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-185947
...
34
KIT, Complete Head Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-185752GS
...
35
KIT, Check Valve Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-185933GS
...
38
KIT, Unloader Spindle Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-B3479GS
...
44
KIT, High Pressure Outlet Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-B3510GS
...
54
KIT, Chemical Injector Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-185943GS
...
59
KIT, O-Ring Sea Is Service kit; Includes all parts shown within the box. Certain parts are only available as a component of a kit. BS-185926GS
...
...
...
