1441-0 Briggs and Stratton Pressure Washer 2,600 PSI

Model: 1441-0

Save
 Part Not Listed?Part Not Listed?
product name

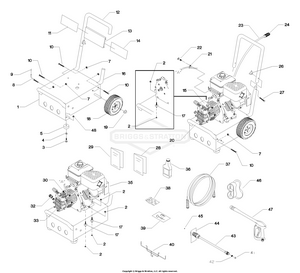

Main Unit

...
...
1
BASE BS-AB5721GS
...
2
NUT, Hex Locking Flange M8 BS-67989GS
...
3
SCREW BS-42909GS
...
4
Washer, .34 x 1 x 10 BS-50190GS
...
5
VIBE MOUNT, with Washer BS-191413GS
...
7
NUT, Lock BS-99583GS
...
8
HOOK, Gun BS-B2150GS
...
9
CAP, Vinyl, Black BS-B2516GS
...
10
BOLT, Carriage BS-B2043GS
...
11
DECAL, UNIT, PW, 01441 BS-B5810GS
...
12
HANDLE BS-B1983GS
...
13
BILLBOARD, Plastic BS-B1631AGS
...
14
DECAL, Instructions BS-B1932GS
...
15
TAG, Breather BS-B1288GS
...
16
SUPPORT, Handle BS-CB1981GS
...
17
MOUNT, Rubber Shock BS-21217GS
...
18
WHEEL BS-209636GS
...
19
PUSHNUT, 5/8" BS-75402CGS
...
20
BUMPER BS-B1982GS
...
21
CLAMP, Hose BS-B1232GS
...
22
TAPTITE, #10-32 X 5/8 BS-32713GS
...
23
HOSE-CHEMICAL BS-705076
...
24
FILTER-CHEM HOSE BS-709496
...
26
KNOB, Handle BS-97178GS
...
27
BOLT, Carriage BS-31669GS
...
28
MANUAL, Operator's BS-277040
...
29
MANUAL-OPERATOR BS-B5814GS
...
30
CLAMP, Hose 13/32" BS-48031GGS
...
32
TRANSAXLE BS-84010384
...
33
PUMP BS-317054GS
...
35
ENGINE BS-~NSP
...
36
BOTTLE, Oil BS-100005
...
37
HOSE-PRESSURE BS-206192GS
...
38
KIT, Maintenance, O-Ring BS-191922GS
...
39
KIT, Maintenance, O-Ring BS-191922GS
...
40
HANGER, Hose, Gun, Jug BS-B2168AGS
...
41
O-RING, Hi Pressure BS-97837GS
...
42
SCREEN, Gun Inlet BS-B4224GS
...
43
WAND, FG HI-LO 1.20 BS-B3264CGS
...
44
TAG, Nozzle Instructions BS-97566GS
...
45
NOZZLE, Replacement BS-92661GS
...
46
GOGGLES BS-87815GS
...
47
GUN BS-704312
...
48
NUT, Locking Hex M8 - 1.25 BS-52858GS

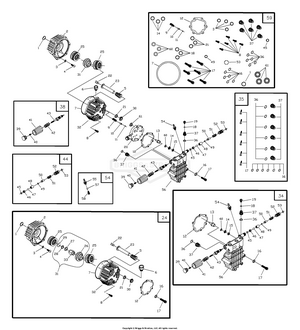

Pump

...
...
1
O-RING, 1.62 ID X 0.12W BS-B3287GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-93680GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSY, Ceramic Piston & Cap BS-99427GS
...
24
KIT, Crankcase Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185751
...
34
KIT, Complete Head Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185752GS
...
35
KIT, Check Valve Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185933GS
...
38
KIT, Unloader Spindle Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B3479GS
...
44
KIT, High Pressure Outlet Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-B3510GS
...
54
KIT, Chemical Injector Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185943GS
...
59
KIT, O-RING, SEAL, FLTHD Service kit includes all parts shown within the box. Certain parts may only be available as components of a kit. BS-185889GS
...
...
...
