1439-1 Briggs and Stratton Pressure Washer 2,100 PSI

Model: 1439-1

Save
 Part Not Listed?Part Not Listed?
product name

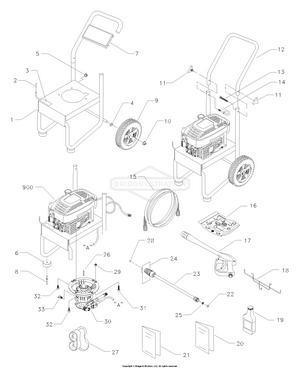

Main Unit

...
...
1
BASE BS-AB5697GS
...
2
CAP, Vinyl BS-B1460GS
...
3
DECAL, Cool Down BS-187952GS
...
4
WASHER BS-49808GS
...
5
GROMMET BS-30809GS
...
6
MOUNT, Vibe BS-191413GS
...
7
ASSY, Billboard BS-191049GS
...
8
RIVET, Blind BS-188194GS
...
9
TIRE BS-B2142GS
...
10
NUT, Push BS-190146GS
...
11
KNOB, Handle BS-97178GS
...
12
HANDLE BS-AB1945GS
...
13
BOLT, Carriage BS-31669GS
...
14
BOLT, Eye BS-B1730GS
...
15
HOSE BS-B5693GS
...
16
KIT, Maintenance, O-Ring BS-191922GS
...
17
GUN, High Pressure BS-B3263GS
...
18
WIREFORM BS-B1953AGS
...
19
BOTTLE, Oil BS-100005
...
20
MANUAL, Owners BS-B5700GS
...
21
MANUAL, Engine BS-191457GS
...
22
O-RING, Hi - Pressure BS-97837GS
...
23
WAND-ADJUSTABLE BS-205015CGS
...
24
HANG TAG, Nozzle BS-97566GS
...
25
SCREEN, Gun Inlet BS-B4224GS
...
26
KEY BS-23139GS
...
27
GOGGLES, Safety BS-87815GS
...
28
NOZZLE BS-21760GS
...
29
NUT BS-52858GS
...
30
Assy, Pump (See "Pump" illustration and parts list.) BS-206383GS
...
31
SCREW BS-A2013GS
...
32
SCREW BS-190750GS
...
33
VALVE, Thermal Relief BS-208673GS
...
900
ENGINE BS-~NSP

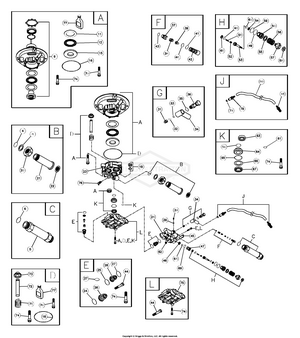

Pump

...
...
19
CAP, Oil BS-190571GS
...
23
CARTER BS-190626GS
...
28
MANIFOLD BS-190627GS
...
29
KIT, PIPE FITTING BS-193971GS
...
30
KIT, PIPE FITTING BS-193971GS
...
34
CONNECTION, Chemical Inlet BS-190577GS
...
45
PIN BS-190578GS
...
46
KIT, UNLOADER SEAT BS-193972GS
...
47
KIT, UNLOADER SEAT BS-193972GS
...
62
CAP BS-190581GS
...
68
KIT, UNLOADER SEAT BS-193972GS
...
69
KIT, UNLOADER SEAT BS-193972GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE BS-190586GS
...
A
KIT, WOBBLE PLATE BEARING Service kit includes all parts shown within the box. BS-190709GS
...
B
KIT, WATER INLET, ALUM Service kit includes all parts shown within the box. BS-190632GS
...
C
FITTING Service kit includes all parts shown within the box. BS-201497GS
...
D
KIT, PISTON Service kit includes all parts shown within the box. BS-190710GS
...
E
KIT, CHECK VALVES Service kit includes all parts shown within the box. BS-190591GS
...
F
KIT, INLET CHECK Service kit includes all parts shown within the box. BS-190592GS
...
G
KIT, CHEMICAL INJECTION Service kit includes all parts shown within the box. BS-190593GS
...
H
KIT, UNLOADER STEM Service kit includes all parts shown within the box. BS-190594GS
...
J
KIT, CHEMICAL HOSE Service kit includes all parts shown within the box. BS-189971GS
...
K
KIT, SEAL SET Service kit includes all parts shown within the box. BS-190595GS
...
L
KIT, HEAD BRASS Service kit includes all parts shown within the box. BS-190596GS
...
...
...
