product name

1418-0 Briggs and Stratton Pressure Washer 3,000 PSI

Model: 1418-0

Save
 Part Not Listed?Part Not Listed?
product name

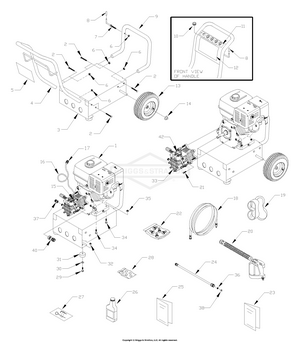

Main Unit

...
...
1
ENGINE BS-~NSP
...
2
BOLT, Carriage BS-B2043GS
...
3
BASE, HSPW, PWDR CT, BLK BS-BB2226BGS
...
4
HANDLE BS-CB3861CGS
...
5
DECAL, Operating Instructions BS-B4160GS
...
6
NUT, Lock BS-99583GS
...
7
HOOK, Gun BS-B2150GS
...
8
CAP, Vinyl, Black BS-B2516GS
...
9
BUMPER BS-CB4105GS
...
10
GROMMET BS-30809GS
...
11
DECAL, 5 QD Nozzles BS-B4159GS
...
12
DECAL, UNIT, PW, 01418 BS-B5607GS
...
13
ASSY., Wheel & Tire 10" BS-88521GS
...
14
PUSHNUT BS-194062GS
...
15
CLAMP, Hose 13/32" BS-48031GGS
...
16
HOSE-CHEMICAL BS-705076
...
17
FILTER-CHEM HOSE BS-709496
...
18
Hose BS-205734GS
...
19
GOGGLES BS-87815GS
...
20
GUN BS-704311
...
21
CAPSCREW, Socket Head BS-23707GS
...
22
KIT, Nozzles QD BS-186301GS
...
23
MANUAL-OPERATOR BS-B5606GS
...
24
ASSY., Wand Ext. with QD BS-B3858
...
25
MANUAL, Engine BS-B1464GS
...
26
BOTTLE, Oil BS-100005
...
27
KIT, Nozzle Cleaning BS-B2509
...
28
KIT, Maintenance, O-Ring BS-191922GS
...
29
SCREW BS-42909GS
...
30
Washer, .34 x 1 x 10 BS-50190GS
...
31
VIBE MOUNT, with Washer BS-191413GS
...
32
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
33
ASSEMBLY, Pump (see pages 18-19) BS-~NSP
...
34
BOLT BS-64416GS
...
35
NUT, Lock BS-52859GS
...
36
SCREEN, Gun Inlet BS-B4224GS
...
37
TRANSAXLE BS-84010384
...
38
O-RING, Hi Pressure BS-97837GS
...
40
QUICK CONNECT BS-185923GS
...
42
TAG, Breather BS-B1288GS

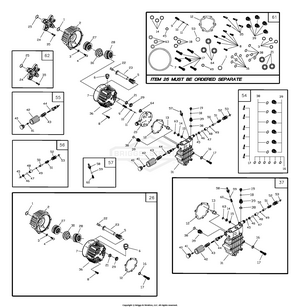

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
SPACER PLATE, Inlet BS-A1320GS
...
21
SEAL, Oil Piston BS-B3286GS
...
22
SHOE, Piston Pivot BS-94944GS
...
23
ASSY, Ceramic Piston & Cap BS-99427GS
...
24
ADAPTER, Engine, Honda 8 - 9 HP BS-B3672C
...
25
O-RING, Engine Adapter BS-185726GS
...
26
KIT, Crankcase, 7.5 Service kit includes all parts shown within the box. Certain items are only available as a part of a kit. BS-186216A
...
37
KIT, Complete Head BS-185752GS
...
54
KIT, Check Valve BS-185933GS
...
55
KIT, Unloader Spindle BS-B3479GS
...
56
KIT, High Pressure Outlet BS-B3510GS
...
57
KIT, Chemical Injector BS-185943GS
...
61
KIT, O-Ring Sea Is BS-185926GS
...
62
KIT, ENGINE ADAPTER BS-187791
...
...
...
