1294-0 Briggs and Stratton Pressure Washer 2,200 PSI

Model: 1294-0

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

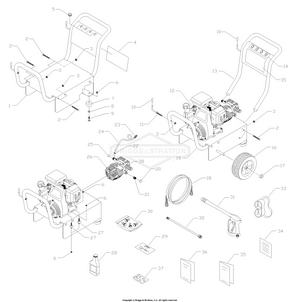

Main Unit

...
...
1
BASE, HSPW, PWDR CT, BLK BS-BB1770AGS
...
2
BOLT, Carriage BS-B2043GS
...
3
NUT, Lock BS-99583GS
...
4
DECAL, Instructions BS-B4164GS
...
5
GROMMET BS-30809GS
...
6
NUT, Hex Locking Flange M8 BS-67989GS
...
7
VIBE MOUNT, with Washer BS-191413GS
...
8
Washer, .34 x 1 x 10 BS-50190GS
...
9
SCREW BS-42909GS
...
10
CAP, Vinyl, Black BS-B2516GS
...
11
HOOK, Gun BS-B2150GS
...
12
ENGINE, 5HP BS-~NSP
...
13
HNDL, PWDR CT, WRKBLK BS-CB3861GS
...
14
DECAL, 4 QD Nozzles BS-B4163GS
...
15
DECAL, Unit 1294 BS-B4162
...
16
WHL, 3.00 X 10.00, S-PNEU, 1/2 BS-B1760GS
...
17
PUSHNUT BS-194062GS
...
18
HOSE, 1/4" x 25' BS-B3339
...
19
BUMPER BS-CB3866GS
...
20
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
21
TRANSAXLE BS-84010384
...
22
CLAMP, Hose 13/32" BS-48031GGS
...
23
FILTER-CHEM HOSE BS-709496
...
24
HOSE-CHEMICAL BS-705076
...
25
CAP, ADPTR, HP BS-97100GS
...
26
PUMP BS-317054GS
...
27
MOUNT, Rubber Shock BS-21217GS
...
28
BOTTLE, Oil BS-100005
...
29
KIT, Nozzle Cleaning BS-B2509
...
30
KIT, Nozzle BS-197291GS
...
31
GUN BS-704312
...
32
ASSY., Wand Ext. with QD BS-B3858
...
33
GOGGLES BS-87815GS
...
34
CARD, Owners Registration BS-88681
...
35
MANUAL-OPERATOR BS-B3856GS
...
36
MANUAL, Honda BS-B3294GS
...
37
KIT, Maintenance, O-Ring BS-191922GS
...
38
TAG, Breather BS-B1288GS

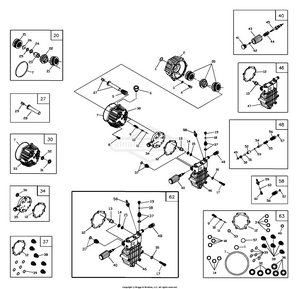

Pump

...
...
1
O-RING, Engine Adapter BS-B2218GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
KIT, CAM, AXIAL BS-B4263GS
...
27
ASSY, PSTN, SNGL SRV BS-B3478GS
...
30
ASSY, CRNKCS, SRV BS-B3508GS
...
34
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
37
KIT, CHECK VALVES BS-B3513GS
...
40
KIT, Unloader Spindle BS-B3479GS
...
46
KIT, Head BS-B3507
...
48
KIT, High Pressure Outlet BS-B3510GS
...
58
KIT, CHEM INJ, SRV BS-B3829GS
...
62
KIT, Complete Head BS-B3480
...
63
KIT, O-RING, SEALS, SRV BS-B3514GS
...
...
...
