1171-0 Briggs and Stratton Pressure Washer 1,500 PSI

Model: 1171-0

Save
 Part Not Listed?Part Not Listed?
product name

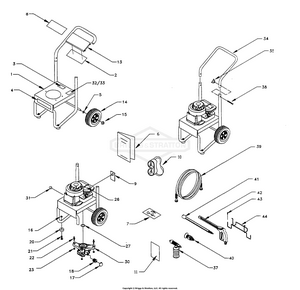

Pressure Washer

...
...
1
BASE, VSPW BS-A61938
...
2
DECAL, INSTRCTN, FR BS-B2662GS
...
3
DECAL, 1-800 Number BS-20566GS
...
4
DECAL, BASE, PW BS-B2192GS
...
5
WASHER, Flat BS-49808GS
...
6
MANUAL-OPERATOR BS-B2659GS
...
7
KIT, Nozzle Cleaning BS-B2163
...
8
DECAL, 1500PSI BS-B1913GS
...
9
TAG, INSTRCTN, START, FRENCH BS-B1210BGS
...
10
GOGGLES BS-87815GS
...
11
SHEET, INSTRCTN, KIT, CLNNG, FR BS-98906GS
...
13
BILLBOARD, Plastic BS-B1631BGS
...
14
TIRE, Black Mag BS-21206GS
...
15
PUSHNUT BS-194062GS
...
16
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
17
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
18
TRANSAXLE BS-84010384
...
20
MOUNT, Rubber Donut BS-87841GS
...
21
HHCS, M8 - 1.25 x 35 BS-39414GS
...
22
STUD, Double Ended BS-B1735GS
...
23
NUT, with Washer BS-B1880GS
...
26
ENGINE, Briggs & Stratton Sprint 4HP BS-B1925
...
27
SEAL, Engine Donut BS-98300GS
...
30
REPLACEMENT PUMP ASSEMBLY BS-209940GS
...
31
CAP, ADPTR, HP BS-97100GS
...
32
DECAL, Data BS-88056
...
33
OVER LAMINATE BS-79552
...
34
HANDLE BS-AB1945GS
...
35
KNOB, Handle BS-97178GS
...
37
FOAMER, W\HANGER HOLE BS-B1935GS
...
38
BOLT, Carriage BS-31669GS
...
39
HOSE, 1/4" X 25' BS-97810
...
40
NZZL, FIXED HI, 1.30, GF, ARL BS-21338GGS
...
41
EXTNSN, BAY, BAY BS-21337GS
...
42
GUN, High Pressure BS-21336
...
43
CAP, Vinyl Black BS-B1460GS
...
44
WIREFORM BS-B1723

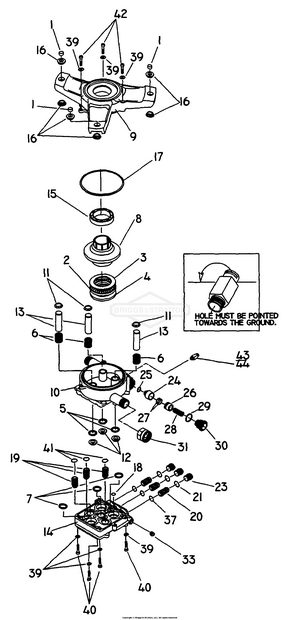

Pump

...
...
1
SLEEVE, Grommet Spacer BS-96795GS
...
2
ASSY, CAGE, BRNG, 45 X 65 BS-21640GS
...
3
WSHR, BRNG, 45X65X1 BS-21641GS
...
4
WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL] BS-21642
...
5
SEAL, Oil Piston BS-93680GS
...
6
SPRING, RTRN, PSTN, 2300 BS-97828GS
...
7
SEAL, PSTN, U-CUP BS-93667GS
...
8
CAM, SML, 7/8, 5.6, CAST, 2000 BS-98304GS
...
9
ADAPTER, Engine BS-98227GS
...
10
HOUSING, PISTON AND UNLOADER BS-B1907
...
11
RETAINER, PSTN SPRING BS-97830GS
...
12
SPACER, Pilot BS-97831GS
...
13
PSTN, 15 DIA X 65 LG BS-97832GS
...
14
HEAD, CYL, GAS PUMP BS-A1111BGS
...
15
BRNG, BALL, 35X72X17 BS-57018GS
...
16
BUSHING, Rubber Mount BS-21429GS
...
17
O-RING, Housing Seal BS-97835GS
...
18
O-RING, Hi Pressure BS-97837GS
...
19
ASS'Y, CHECK VALVE - INLET BS-97838
...
20
ASSY, VLV, CHK, OUTLET BS-97839GS
...
21
O-RING, Cap BS-97840GS
...
23
CAP, Outlet Port BS-97841GS
...
24
SEAT, UNLOADER BS-97842
...
25
O-RING, 0.364 ID X 0.070, 70 D BS-97843GS
...
26
PISTON, UNLOADER BS-B1253
...
27
SEAL, PARBAK UNLDR BS-97845GS
...
28
SPRING, UNLOADER BS-A2731
...
29
O-RING, UNLDR CAP BS-97847GS
...
30
CAP, UNLDR, PLASTIC BS-A2730GS
...
31
TRANSAXLE BS-84010384
...
33
PLUG, 1/8" - 27 BS-96137GS
...
37
O-RING, VLV, CHCK BS-97934GS
...
39
LOCK WASHER, M6 RIBBED BS-93873
...
40
Nylon Roller BS-5040946
...
41
O-RING, PISTN HOUSNG BS-97851GS
...
42
CAPSCREW, Socket Head BS-97962GS
...
43
VALVE, Thermal Relief BS-208673GS
...
44
BUSHING, .75 X 1.00 X BS-5023344SM
...
...
...
