product name

1040-3 Briggs and Stratton Pressure Washer 2,000 PSI

Model: 1040-3

Save
 Part Not Listed?Part Not Listed?
product name

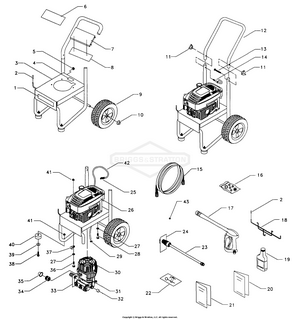

Pressure Washer

...
...
1
DECAL, BASE, PW BS-B2192GS
...
2
CAP, Vinyl Black BS-B1460GS
...
3
BASE, VSPW, PWDR CT, RED BS-AB2058GS
...
4
DECAL, 1-800 Number BS-20566GS
...
5
GROMMET BS-30809GS
...
6
DECAL, 2000PSI BS-B2060GS
...
7
BILLBOARD, Plastic BS-B1631BGS
...
8
DECAL, Instructions BS-B1932GS
...
9
TIRE, 3.5" X 10" Black Mag BS-81760
...
10
PUSHNUT BS-194062GS
...
11
KNOB, Handle BS-97178GS
...
12
HANDLE BS-AB1945GS
...
13
BOLT, Carriage BS-31669GS
...
14
HANDLE MOUNT BRACKET BS-5800101
...
15
HOSE, 1/4" X 25' BS-B3607
...
16
KIT, O-Ring Maintenance BS-B3057
...
17
GUN BS-704312
...
18
WIREFORM BS-B1953AGS
...
19
BOTTLE, Oil BS-100005
...
20
MANUAL-OPERATOR BS-B4561GS
...
21
MANUAL, Operator's BS-380567TRI
...
22
KIT, Nozzle Cleaning BS-B2163
...
23
WAND-ADJUSTABLE BS-205015CGS
...
24
TAG, Nozzle Instructions BS-97566GS
...
25
FILTER-CHEM HOSE BS-709496
...
28
HHCS, M8-1.25 X 65 BS-52265GS
...
29
CLAMP, Hose 13/32" BS-48031GGS
...
30
REPLACEMENT PUMP ASSEMBLY (Must also order 208673GS Thermal Relief Valve) BS-193461GS
...
30
VALVE, Relief, Thermal BS-208673GS
...
31
TAG, Breather BS-B1288GS
...
32
CAP, ADPTR, HP BS-97100GS
...
33
TAG, Pressure Adjust BS-97054
...
34
TRANSAXLE BS-84010384
...
35
CAP, GRDN HOSE, CNNCTR BS-A1408GS
...
36
HHCS, M8 - 1.25 x 35 BS-39414GS
...
37
CLAMP, Hose BS-B1232GS
...
38
HHCS, M8-1.25 X 45 GR10.9 BS-B1214GS
...
39
Washer, .34 x 1 x 10 BS-50190GS
...
40
VIBE MOUNT, with Washer BS-191413GS
...
41
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
42
HOSE, CHEM, 5 FT, CLR BS-A1040CGS
...
43
DECAL, Ignition BS-5021761

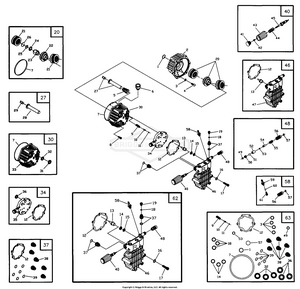

Pump

...
...
1
O-RING, 1.62 ID X 0.12W BS-B3287GS
...
2
ADAPTER, Housing, Cam BS-B2260GS
...
3
O-RING, Engine Adapter Bolt BS-B2217GS
...
4
SCREW BS-B2261BGS
...
5
SPRING, Piston Return BS-96400GS
...
6
BREATHER BS-99735GS
...
7
O-RING, Crankcase BS-93790GS
...
8
SCREW BS-40945GS
...
9
SPRING, Thermal By-Pass BS-93652GS
...
10
PISTON, Thermal By-Pass BS-95416GS
...
11
SCREW BS-690312
...
12
GASKET, Head BS-A2069GS
...
13
ACTUATOR, Thermal By-Pass BS-93644GS
...
14
SEAL, High Pressure BS-96053GS
...
15
RING, Bearing BS-96015GS
...
16
WASHER, Steel Special BS-B2665GS
...
17
BOLT BS-A2013GS
...
18
O-RING, Cap BS-97840GS
...
19
CAP, Outlet Port BS-97841GS
...
20
KIT, Axial Cam 7/8" - 6.0 Lift BS-B4229
...
27
ASSY, PSTN, SNGL SRV BS-B3478GS
...
30
ASSY, CRNKCS, SRV BS-B3508GS
...
34
ASSY, PLATE, SPACER, SRV BS-B3509GS
...
37
KIT, CHECK VALVES BS-B3513GS
...
40
KIT, Unloader Spindle BS-B3479GS
...
46
KIT, Head BS-B3507
...
48
KIT, High Pressure Outlet BS-B3510GS
...
58
KIT, CHEM INJ, SRV BS-B3829GS
...
62
KIT, Complete Head BS-B3480
...
63
KIT, O-RING, SEALS, SRV BS-B3514GS
...
...
...
