1014-1 Briggs and Stratton Pressure Washer 3,200 PSI Annov. Pump

Model: 1014-1

Save
 Part Not Listed?Part Not Listed?
product name

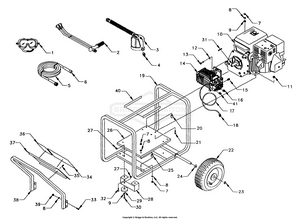

Pressure Washer

...
...
1
GOGGLES BS-87815GS
...
2
Dual Lance Extension BS-B1437
...
3
GUN BS-704311
...
4
QC, HOSE/GUN BS-95459GS
...
5
Hose 3600 PSI BS-B1411
...
6
Quick Disconnect For Hose BS-95458
...
7
NUT, 5/16 - 18 BS-22259GS
...
8
WASHER, Lock BS-22129GS
...
9
Washer, .34 x 1 x 10 BS-50190GS
...
10
Honda Engine BS-B1408
...
11
NUT, Lock BS-52859GS
...
12
LOCKWASHER, SPLIT 3/8 BS-703454
...
13
SCREW BS-23645GS
...
14
Annovi Pump BS-B1410
...
15
THERMAL RELIEF BS-195016GS
...
16
Adapter 3/8 NPT BS-B1462
...
17
HOSE, CHEM, 5 FT, CLR BS-A1040CGS
...
18
FILTER-CHEM HOSE BS-709496
...
19
Cradle 1014-0 BS-B1442
...
20
MOUNTS,Vibration BS-92609GS
...
21
BOLT BS-64416GS
...
22
ASSY., Wheel & Tire 10" BS-88521GS
...
23
PUSHNUT BS-194062GS
...
24
WASHER, Flat BS-49808GS
...
25
MOUNT, VIBRATION BS-82857GS
...
26
Engine Base BS-B1482
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
SPPRT, CRDL BS-B1444GS
...
29
VIBE MOUNT, with Washer BS-191413GS
...
30
SCREW BS-42909GS
...
31
KEYSTOCK, 1/4X2 BS-703890
...
32
HHCS, M8 x 20 BS-39253GS
...
33
Screw M8-1.25 BS-51731
...
34
logo Decal BS-B1471
...
35
SCREW BS-313085GS
...
36
Starting Instructions Decal BS-B1472
...
37
Billboard Panel BS-B1451
...
38
Handle BS-93393B
...
39
SKID PLATE BS-5045771B
...
40
M.C. Bar Decal BS-93221
...
41
Conn, Gdn Hse BS-95320GS

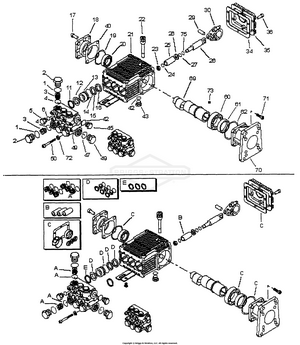

Pump #B1410

...
...
1
Screw BS-112B1410
...
2
Bearing Support BS-113B2327GS
...
3
Shim BS-132B2327GS
...
4
O-Ring BS-114B1410
...
5
BRNG BS-115B2327GS
...
6
Oil Cap BS-117B2327
...
7
Nut BS-118B2327GS
...
8
Washer BS-119B2327GS
...
9
Piston BS-120B2327GS
...
10
Spacer BS-121B2327GS
...
11
O-RING, 7.66 X 1.78 BS-11893360PGS
...
12
Piston Guide BS-123B2327GS
...
13
Piston Pin BS-124B2327GS
...
14
ROD, CNNCTNG, BRONZE BS-125B2327GS
...
15
SCREW BS-128B2327GS
...
16
CVR, COMPLETE BS-127B2327GS
...
17
GSKT BS-126B2327GS
...
18
Screw BS-155B2327GS
...
19
FLANGE, EL MOTOR BS-140B1410GS
...
19
Gas Engine Flange BS-150B2126GS
...
20
O-Ring BS-139B1410GS
...
21
Seal BS-138B1410GS
...
22
Bearing BS-137B1410GS
...
24
SHAFT, HOLLOW BS-142B1410GS
...
25
Plug BS-134B2327
...
26
O-Ring BS-134B2327
...
27
HSNG, PUMP BS-116B2327GS
...
28
Plug BS-135B2327
...
29
Plug BS-134B2126
...
30
O-Ring BS-137B2327GS
...
31
HEAD, PUMP BS-135B1410GS
...
33
Screw BS-140B2327GS
...
34
O-Ring BS-100B2327
...
35
PLUG BS-101B1410GS
...
36
Valve BS-102B2327GS
...
37
O-Ring BS-103B2327
...
38
PLUG BS-190638GS
...
39
O-Ring BS-105B1410
...
40
Support Ring BS-106B2327GS
...
41
Gasket BS-107B2327GS
...
42
Piston Guide BS-108B2327GS
...
43
O-Ring BS-109B2327GS
...
44
Gasket BS-110B2327GS
...
45
SEAL BS-111B2327GS
...
Screw Items Not Shown BS-155B2327GS
...
Washer Items Not Shown BS-159B2327GS
...
Grub Screw Items Not Shown BS-152B2126GS
...
Ring Items Not Shown BS-161B2327
...
A
VLV, KIT Includes 6 of item No(s). 36 and 37 BS-200B2327GS
...
B
KIT, SEAL, OIL Includes 3 of item No. 9 BS-201B2327GS
...
C
KIT, OIL SEALS Includes 3 of item No. 45; 1 of item No(s). 4, 17, 21, 20 BS-202B1410GS
...
D
KIT, WATER SEALS Includes 3 of item No.(s) 41, 43, 44 BS-203B2327GS
...
E
KIT, RING, SPPRT Includes 3 of item No. 40 BS-204B2327GS

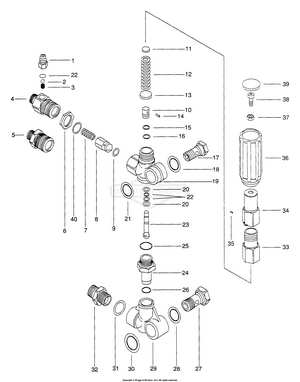

Pump #B1410 Regulating Valve

...
...
1
HOSE TAIL BS-190642GS
...
2
BALL BS-211B2327GS
...
3
Spring BS-212B2327GS
...
4
Injector Body BS-213B1410
...
6
Injector Nut BS-215B2327GS
...
7
Spring BS-216B2327GS
...
8
Plunger BS-217B2327GS
...
9
O-Ring BS-218B2327GS
...
10
Upper Piston BS-219B2327GS
...
11
Spacer Plate BS-220B2327GS
...
12
Spring BS-221B2327GS
...
13
Spring, Spacer Plate BS-222B2327GS
...
14
Pin BS-223B2327GS
...
15
Ring BS-224B2327GS
...
16
O-Ring BS-225B2327GS
...
17
Inlet Bolt BS-226B2327GS
...
18
Washer BS-227B2327GS
...
19
Valve Housing BS-228B2327GS
...
20
Ring BS-229B2327GS
...
21
Washer BS-230B2327GS
...
22
KIT, Chemical Injection BS-192914GS
...
23
Lower Piston BS-232B2327GS
...
24
Piston Guide BS-233B2327GS
...
25
O-Ring BS-234B2327GS
...
26
O-Ring BS-235B2327GS
...
27
Inlet Bolt BS-236B2327GS
...
28
Washer BS-237B2327GS
...
29
Bypass Fitting BS-238B2327GS
...
30
Washer BS-239B2327GS
...
31
O-Ring BS-240B2327GS
...
32
Suction Fitting BS-241B2327GS
...
33
Spring Guide BS-242B2327GS
...
34
Housing BS-243B2327GS
...
35
Pin BS-244B2327GS
...
36
Knob BS-245B2327GS
...
37
Nut BS-246B2327GS
...
38
Screw BS-155B2327GS
...
39
Plug BS-248B2327GS
...
40
O-Ring BS-137B2327GS
...
Service Kit Includes Qty. 1 of item no(s). 9, 15, 16, 18, 21, 25, 26, 28, 30, 31 & 40, Qty 2 of item no. 20 & Qty 3 of item no. 22. BS-250B2327GS
...
...
...
