product name

1014-0 Briggs and Stratton Pressure Washer 3,200 PSI General Pump

Model: 1014-0

Save
 Part Not Listed?Part Not Listed?

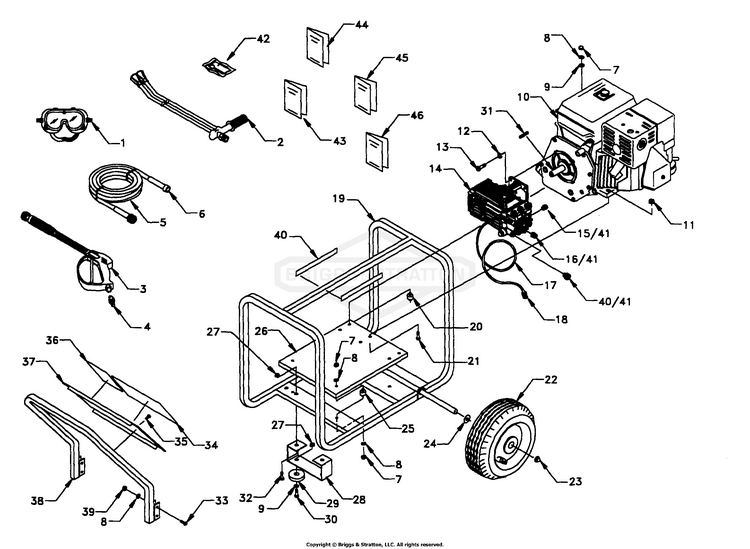

product name

Pressure Washer

...
...
1
GOGGLES BS-87815GS
...
2
WAND, DUAL, FIXED 1.30, 150 BS-B2140EGS
...
3
GUN, 3000PSI, QC, M22, ARL BS-B2500GS
...
4
QC, HOSE/GUN BS-95459GS
...
5
Hose 3600 PSI BS-B1411
...
6
Quick Disconnect For Hose BS-95458
...
7
NUT, 5/16 - 18 BS-22259GS
...
8
WASHER, Lock BS-22129GS
...
9
Washer, .34 x 1 x 10 BS-50190GS
...
10
Honda Engine BS-B1408
...
11
NUT, Lock BS-52859GS
...
12
LOCKWASHER, SPLIT 3/8 BS-703454
...
13
SCREW BS-23645GS
...
14
Pump, General BS-B1843
...
Annovi, General BS-B1410
...
15
THERMAL RELIEF BS-195016GS
...
16
Adapter 3/8 NPT BS-B1462
...
17
HOSE, CHEM, 5 FT, CLR BS-A1040CGS
...
18
FILTER-CHEM HOSE BS-709496
...
19
Cradle 1014-0 BS-B1442
...
20
MOUNTS,Vibration BS-92609GS
...
21
BOLT BS-64416GS
...
22
ASSY., Wheel & Tire 10" BS-88521GS
...
23
PUSHNUT BS-194062GS
...
24
WASHER, Flat BS-49808GS
...
25
MOUNT, VIBRATION BS-82857GS
...
26
Engine Base BS-B1482
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
SPPRT, CRDL BS-B1444GS
...
29
VIBE MOUNT, with Washer BS-191413GS
...
30
SCREW BS-42909GS
...
32
HHCS, M8 x 20 BS-39253GS
...
33
Screw M8-1.25 x 50 BS-51731
...
34
Logo Decal BS-B1471
...
35
SCREW BS-313085GS
...
36
Starting Instructions Decal BS-B1472
...
37
Billboard Panel BS-B1451
...
38
Assembly, Handle BS-B1545
...
39
SKID PLATE BS-5045771B
...
40
Conn, Gdn Hse BS-95320GS
...
41
Loctite #680 BS-96727
...
42
KIT, Maintenance, O-Ring BS-191922GS
...
43
Pump Manual BS-B2685
...
44
Unloader Manual BS-B2686
...
45
MANUAL, Engine BS-B1464GS
...
46
MANUAL-OPERATOR BS-B1405GS

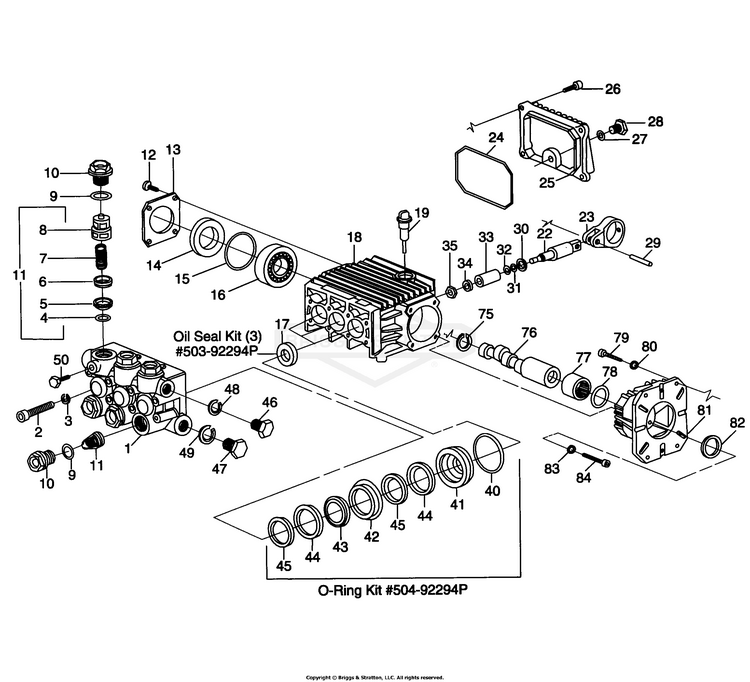

Pump #B1843 (3200PSI) (Part 1)

...
...
1
HEAD, PUMP BS-10092294PGS
...
2
SCREW BS-10192294PGS
...
3
WASHER BS-12492293PGS
...
4
O-RING BS-108B3169GS
...
5
SEAT, VLV BS-109B3169GS
...
6
PLATE, VLV BS-110B3169GS
...
7
SPRING BS-111B3169GS
...
8
O-RING BS-112B3169GS
...
9
O-RING BS-10892293PGS
...
10
SCREW, CAP BS-109B1843GS
...
11
ASSY, VLV BS-115B3169GS
...
12
SCREW BS-10292294PGS
...
13
CVR, BRNG BS-10392294PGS
...
14
SPACER, SIGHT GLASS BS-10492294PGS
...
15
O-RING BS-12992293PGS
...
16
BRNG, BALL BS-10592294PGS
...
17
SEAL, OIL BS-116B1843GS
...
18
CRNKCS BS-10692294PGS
...
19
Oil Dip Stick BS-94504
...
22
GUIDE, PSTN BS-10792294PGS
...
23
ROD, CNNCTNG BS-10892294PGS
...
24
O-RING BS-10992294PGS
...
25
CVR, REAR BS-11092294PGS
...
26
SCREW BS-11192294PGS
...
27
O-RING BS-11292294PGS
...
28
PLUG BS-10492293PGS
...
29
PIN BS-11392294PGS
...
30
WSHR BS-11492294PGS
...
31
RING, BACKUP BS-11592293PGS
...
32
O-RING BS-11492293PGS
...
33
PSTN BS-11592294PGS
...
34
WSHR BS-11392293PGS
...
35
NUT, SRV BS-11292293PGS
...
40
O-RING BS-133B1843GS
...
41
RETAINER, PACKING BS-134B1843GS
...
42
RING, INTRMDT BS-135B1843GS
...
43
PACKING BS-136B1843GS
...
44
PACKING BS-117B3169GS
...
45
RING, HEAD BS-116B3169GS
...
46
PLUG BS-10192293PGS
...
47
SCREW, CAP BS-11692294PGS
...
48
Washer BS-13492294P
...
49
WSHR BS-11892294PGS
...
50
Cap Screw BS-11992294P
...
51
SEAL, LOW PRSSR BS-144B1843GS
...
75
RING, RETAINING BS-12092294PGS
...
76
CRNKSHFT BS-12192294PGS
...
77
BRNG, RLLR, SRV BS-12292294PGS
...
78
O-RING BS-12992293PGS
...
79
SCREW, 5/16 X 1 BS-149B1843GS
...
80
WSHR, 08MM BS-150B1843GS
...
81
FLANGE, GAS BS-12392294PGS
...
82
SEAL, OIL BS-12492294PGS
...
83
WASHER BS-10692293PGS
...
84
SCREW BS-12692294PGS
...
KIT, VLV Includes items 4, 5, 6, 7, 8, & (11) BS-50092294PGS
...
KIT, CAP, VLV, E-Z Includes items 9 & 10 BS-50192294PGS
...
KIT, RETAINER, PACKING Includes items 40 & 41 BS-206B1843GS
...
KIT, ASSY, PACKING Includes items 40, 41, 42, 43, 44, 45, & 51 BS-50492294PGS
...
KIT, SEAL, OIL, PSTN ROD Includes item 17 BS-50392294PGS
...
KIT, SEAL, LP Includes items 43, 44, & 51 BS-201B1843GS
...
KIT, RING Includes item 42 BS-202B1843GS
...
KIT, RING, HEAD Includes item 45 BS-203B1843GS

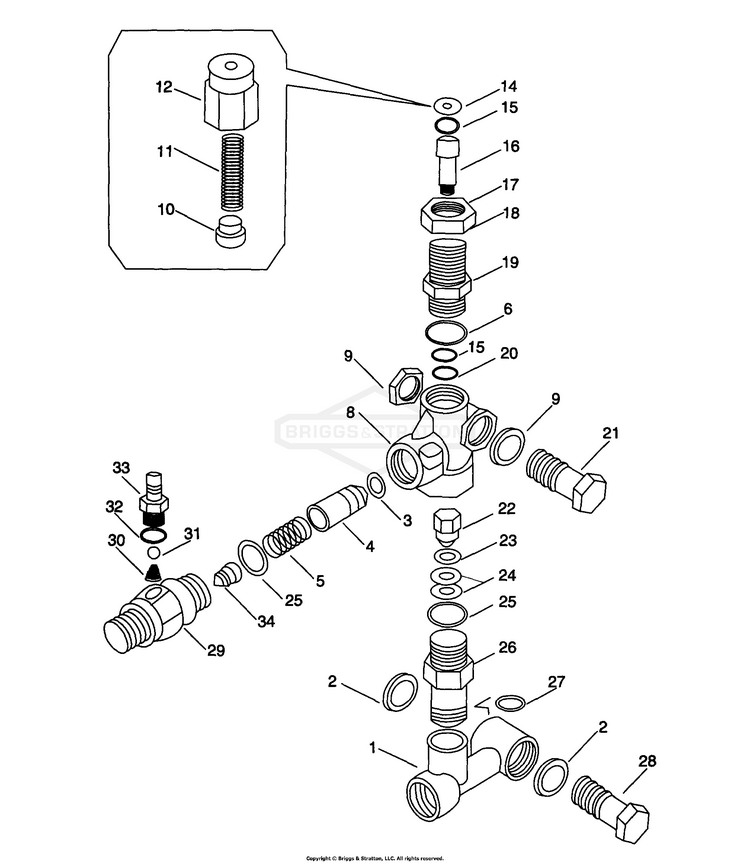

Pump #B1843 (3200PSI) (Part 2)

...
...
1
MANIFOLD BS-155B1843GS
...
2
SEAL, WSHR BS-156B1843GS
...
3
O-RING BS-157B1843GS
...
4
VLV, CHK BS-158B1843GS
...
5
SPRING BS-159B1843GS
...
6
O-RING BS-160B1843GS
...
8
BODY, VLV, BR BS-161B1843GS
...
9
SEAL, WSHR BS-162B1843GS
...
10
SPPRT, SPRING BS-163B1843GS
...
11
SPRING, WHITE BS-164B1843GS
...
12
CAP, BRASS BS-165B1843GS
...
14
RING, BACKUP BS-166B1843GS
...
15
O-RING BS-167B1843GS
...
16
PSTN, SS BS-168B1843GS
...
17
NUT, RING BS-169B1843GS
...
18
SCREW, SET BS-170B1843GS
...
19
HSNG, PSTN BS-171B1843GS
...
20
RING, BACKUP BS-172B1843GS
...
21
BOLT, BANJO BS-173B1843GS
...
22
VLV BS-174B1843GS
...
23
O-RING BS-175B1843GS
...
24
SEAT BS-176B1843GS
...
25
O-RING BS-177B1843GS
...
26
Bypass Fitting BS-178B1843
...
27
O-RING BS-179B1843GS
...
28
BOLT, BANJO BS-180B1843GS
...
29
BODY, INJECTOR BS-181B1843GS
...
30
SPRING, CONICAL BS-182B1843GS
...
31
BALL BS-183B1843GS
...
32
O-RING BS-184B1843GS
...
33
BARB, HOSE BS-185B1843GS
...
34
NZZL, INJECTION BS-186B1843GS
...
35
Unloader Complete BS-187B1843
...
...
...
