product name

073031-0 Briggs and Stratton Water Pum WP2-35

Model: 073031-0

Save
 Part Not Listed?Part Not Listed?
product name

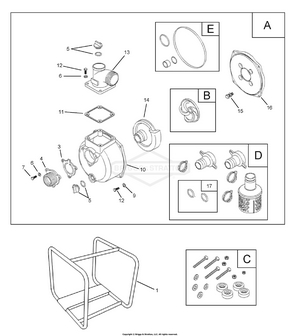

Water Pump

...
...
1
CRADLE BS-865162GS
...
3
VALVE, Check BS-197754GS
...
4
FLANGE, Inlet, 2" BSP BS-197756GS
...
5
PLUG ASSEMBLY BS-198057GS
...
10
HOUSING, Pump BS-197752GS
...
11
GASKET, Out BS-197758GS
...
13
FLANGE, Outt, 2" BSP BS-197760GS
...
14
VOLUTE BS-197747GS
...
15
FASTNER ASSEMBLY BS-198048GS
...
16
ADAPTER, Engine BS-197738GS
...
17
GASKET, 2" BS-197764GS
...
A
PUMP HOUSING ASSEMBLY (Includes All items Shown in box) BS-197794GS
...
B
KIT, Impeller, 2" (Includes All items Shown in box) BS-198060GS
...
C
KIT, Vibration Mount (Includes All items Shown in box) BS-197887GS
...
D
KIT, Coupler, 2" BSP (Includes All items Shown in box) BS-198073GS
...
E
KIT, Seal (Includes All items Shown in box) BS-198075GS
...
...
...
