073007-0 Briggs and Stratton Water Pum WPK3-45, SCH5050BS

Model: 073007-0

Save
 Part Not Listed?Part Not Listed?
product name

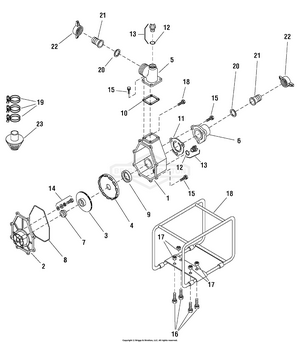

Trash Pump

...
...
1
*CASING BS-200 200 130
...
2
*CASING COVER BS-200 201 040
...
3
*IMPELLER BS-200 210 190
...
4
*INNER CASING BS-200 210 400
...
5
*BEND BS-200 200 240
...
6
*VALVE CASE BS-200 200 230
...
7
*MECHANICAL SEAL BS-201 100 031
...
8
*PACKING, Casing Cover BS-200 900 350
...
9
*PACKING, Inner Casing BS-200 900 240
...
10
*PACKING, Bend BS-200 900 170
...
11
*CHECK VALVE BS-200 900 120
...
12
*O-RING BS-200 800 020
...
13
*PLUG ASSEMBLY BS-200 500 040
...
14
*CASING BOLT ASSEMBLY BS-203 000 100
...
15
*BOLT, Hex BS-203 000 040
...
16
*BOLT, Hex BS-203 000 070
...
17
*NUT, Flange, M8 BS-203 200 010
...
18
*FRAME (Black) BS-200 101 320
...
19
*HOSE BAND BS-201 000 040
...
20
*PACKING, Coupling BS-200 900 050
...
21
*HOSE COUPLING BS-200 500 090
...
22
*HOSE COUPLING HANDLE BS-200 500 070
...
23
*STRAINER BS-201 200 030
...
...
...
