071035-0 Briggs and Stratton Transfer System Power Management System

Model: 071035-0

Save
 Part Not Listed?Part Not Listed?
product name

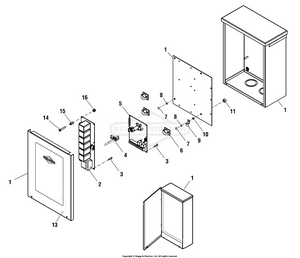

Power Management System - Hinged Enclosure

...
...
2
BOARD, Load Control Center Relay BS-196616GS
...
3
SPACER, PCB Bard, 1/2" BS-197979GS
...
4
HARNESS, Wire BS-198112GS
...
6
CLIP, Latching Wire BS-198431GS
...
9
TERMINAL BS-186345GS
...
11
NUT, 3/8"-16 BS-22241GS
...
13
DECAL, Warning BS-198655GS
...
--
BLOCK, Terminal w/Levers (Not Illustrated) BS-197956GS
...
--
LUG, 1/4 Tab (Not Illustrated) BS-74094GS
...
...
...
