product name

0657-1 Briggs and Stratton Pressure Washer 3,000 CP

Model: 0657-1

Save
 Part Not Listed?Part Not Listed?
product name

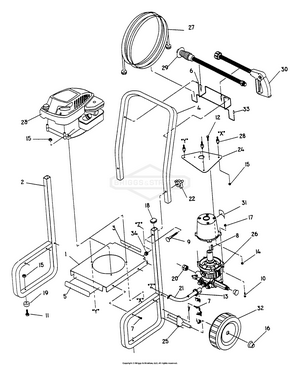

Pressure Washer Drawing No. 20086

...
...
1
Base BS-20040
...
2
Leg BS-20041
...
3
DECAL, CAUTION BS-20042GS
...
4
PIN LYNCH 5/16 BS-5022043
...
5
Decal-Starting Instructions BS-22089
...
6
WIREFORM, JUG/HOSE/GUN BS-20118GS
...
7
COLLAR, 5/8" SPLIT BS-5020441SM
...
8
KEY BS-23139BGS
...
9
BOLT, Carriage BS-31669GS
...
10
SCREW BS-38750GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
SCREW BS-43107GS
...
13
CLAMP, Hose 13/32" BS-48031GGS
...
14
M8-1.25 Nylock Nut BS-49820
...
15
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
16
PUSHNUT BS-194062GS
...
17
NUT, FLANGE LOCK - M6 BS-77395GS
...
18
CAP, Plug BS-81895GS
...
19
MOUNT, Rubber Donut BS-87841GS
...
20
CNNCTR, GRDN HOSE, XB, BR BS-89983GS
...
21
Chemical Injection Hose BS-97110
...
22
KNOB, Handle BS-97178GS
...
23
Briggs & Stratton Vertical Shaft Engine BS-97730
...
24
ADPTR, PUMP, LVRWSH BS-97739GS
...
25
WLDMNT, AXLE, VSPW BS-97741GS
...
26
Pump BS-97745
...
27
Hose BS-97810
...
28
Special Engine Mount Stud BS-97891
...
29
ASSY, WAND, 1.20 BS-188792CGS
...
30
Spray Gun BS-98541
...
31
Seep Warning Decal BS-98754
...
32
WHL, 2.0 X 8.0, PLSTC, 1/2 IN BS-99118GS
...
33
Black Vinyl Cap BS-92528
...
34
GROMMET BS-30809GS
...
...
...
