0603-0 Briggs and Stratton Pressure Washer 6,600 CP (Rev B)

Model: 0603-0

Save
 Part Not Listed?Part Not Listed?
product name

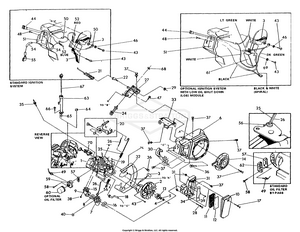

Engine Trim Specifications Drawing No. 90692

...
...
1
GN191 Long Block, Taper Shaft BS-90507
...
GN220 Long Block, Taper Shaft BS-90508
...
GN191 Long Block, Straight Shaft BS-90991 H
...
GN220 Long Block, Straight Shaft BS-90995H
...
GN220 Long Block, Water Pump BS-92567
...
2
Flywheel Assembly, GN220 BS-77182T
...
Flywheel Assembly, GN191 BS-77182E
...
3
Ignition Coil Assembly BS-81675
...
4
M16-1.5 Hex Nut BS-81810
...
5
Conical Washer BS-83312
...
6
Blower Housing BS-90695A
...
7
Carburetor Assembly BS-95948
...
8
Carb Manifold Gasket BS-78631
...
9
HS intake Manifold BS-90948
...
10
Air Cleaner Cover BS-78608
...
Optional Air Cleaner Cover (plain) BS-78608A
...
11
FILTER,Air BS-78601GS
...
12
Air Filter Pre-Cleaner BS-76602
...
13
Recoil Cup BS-83015
...
14
Recoil Assembly BS-81671
...
15
Manifold/Head Gasket BS-90051
...
16
Carburetor/Air Cleaner Gasket BS-91846
...
17
Bolt - Air Cleaner Cover BS-78609
...
18
BOLT, Carriage, Short Neck, 1/4-20 x 1-3/8 BS-7090947YP
...
19
4 x 19 Woodruff Key BS-82774
...
20
Governor Lever Assembly BS-86962
...
21
Governor Spring, 60 Hz BS-78604
...
Governor Spring, 50 Hz BS-86643
...
22
Governor Adjusting Screw BS-83502
...
24
Idle Control Coil BS-83782
...
25
Anti-Lash Extention Spring BS-86037
...
26
Governor Rod BS-86384
...
27
Gov. Adjust Bracket BS-83781
...
28
Carburetor Mounting Bolt BS-76643
...
29
M5-0.8 Lock Nut BS-83503
...
30
Bottom Wrapper BS-89739
...
31
Air Cleaner Base BS-78607
...
32
Blower Housing Back Plate BS-78651C
...
33
SCREW BS-691061
...
34
Breather Canal Cover BS-80303
...
35
PLUG, SPARK BS-84007216
...
36
M6-1.0 x 10mm Bolt BS-45756
...
37
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
38
M6-1.0 x 30mm Capscrew with lock washer BS-80316
...
39
No. 8 x 3/8" Plastite Screw BS-59635
...
40
Choke Lever Knob BS-83504
...
43
M6-1.0 x 30mm Taptite Bolt BS-82981
...
44
SWITCH, Run - Stop BS-78653GS
...
46
CAP BS-5022097SM
...
47
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
48
Low Oil indicator LED BS-85272
...
Low Oil indicator Light Assembly Used with optional LOS module BS-86753
...
49
4 psi Oil Pressure Switch BS-77667
...
50
Ground Wire Assembly BS-00285271
...
51
LOS Engine Decal BS-84195
...
52
Ignition Wire Assembly BS-00185271
...
54
#3 Sleeving BS-85620
...
55
3-pin Male Housing BS-84329
...
56
Carburetor Wear Washer BS-85953
...
57
FITTING 3/8 NPT MALE BS-7091848YP
...
58
M6-1.0 x 20mm Screw BS-92978
...
59
Oil Filter Adaptor Optional BS-84982
...
60
FILTER, Oil Optional BS-70185GS
...
61
ASSY, MDLTR/HRNSS, LOS Optional BS-87221AGS
...
62
By-pass Adaptor Optional BS-88758
...
63
Oil Fill Tube Optional BS-91041
...
64
Expansion Plug BS-94820
...
65
CLEVIS PIN BS-7079831YP
...
66
T-NUT 5/16C BS-7090388YP
...
67
Oil Fill Dipstick Optional BS-91475
...
68
JAM-M8-1.25 Hex Nut BS-66311
...
69
WASHER BS-49811GS
...
70
Fuel Tank Bracket BS-95213

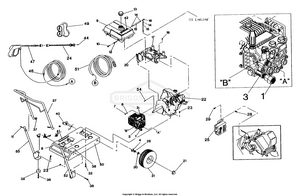

Pressure Washer Drawing No. 99271

...
...
1
Brass Garden Hose Connection BS-89647
...
2
Pump - XTV 2200 psi Series BS-87628
...
3
NECK, ALUM GARDN HOSE BS-89646GS
...
4
GEARBOX BS-84009471
...
5
GSKT, ADPTR, ENG BS-93871GS
...
6
WASHER, Lock BS-92479GS
...
7
5/16" - 24 x 3/4" Hex Head Capscrew BS-22336
...
8
DECAL, BASE, 5700PSI BS-98822GS
...
9
Fuel Tank BS-94994A
...
10
M6-1.0 x 21mm Bolt BS-96001
...
11
BOLT, Carriage BS-31669GS
...
12
BSHNG, TANK BS-96002GS
...
13
CAP, Fuel Tank BS-846987
...
14
Hose Clamp BS-48031C
...
15
1/4' I.D. Fuel Line BS-30340
...
16
VALVE-FUEL SHUT OFF BS-698180
...
17
Fuel Tank Cradle BS-95214
...
19
NUT-M6 FLANGE BS-52857GS
...
20
Screw, M8 1.25 x 15, Taptite BS-83512GS
...
21
PUSHNUT BS-194062GS
...
22
Engine - Generac BS-ENG96256
...
23
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
24
WAND, FG HI-LO 1.20 BS-B3264CGS
...
25
KIT, MFFLR & BRCKT, SRV BS-195002GS
...
26
NUT BS-5025391FS
...
27
HANDLE BS-98696GS
...
28
GASKET, Exhaust BS-89476GS
...
29
M8 x 20mm Socket Head Capscrew BS-40976
...
30
WASHER, Flat BS-49808GS
...
31
ASSY., Wheel & Tire 10" BS-88521GS
...
32
HHCS, M8 - 1.25 x 35 BS-39414GS
...
35
MOUNT, Rubber Donut BS-87841GS
...
36
HHCS, M8 x 20 BS-39253GS
...
37
KNOB, Handle BS-97178GS
...
38
Decal - Important BS-96414
...
40
AXLE, 12.7 X 106, ZNC PLT BS-93728AGS
...
41
DECAL, CAUTION, INSTR BS-96415GS
...
42
DECAL, DANGER, SPANISH BS-96685GS
...
44
NOZZLE, Replacement BS-92661GS
...
46
KIT, RPLCMNT, HOSE-CONN BS-189532GS
...
47
KIT, GUN/CONN, RPLCMNT BS-189533GS
...
49
GOGGLES BS-87815GS
...
50
Mounting Base BS-96963
...
51
TUBE, FILTER, GNRL BS-92550GS
...
52
Right Tube/Support Assembly BS-98698A
...
53
Left Tube/Support Assembly BS-98698B
...
54
KEY, 3/16X1/4 HARDEND BS-89241GS
...
...
...
