030277-0 Briggs and Stratton Portable Generator Proplus 4500

Model: 030277-0

Save
 Part Not Listed?Part Not Listed?
product name

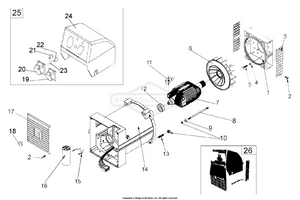

Alternator Outlet Panel

...
...
1
FLANGE PLATE BS-102271GS
...
2
SCREW MC PPHD M5*10MM BS-~NSP
...
3
SIDE GRILL (PLASTIC) BS-102139GS
...
4
WASHER LOCK M10/ 3/8 OXY BLACK BS-~NSP
...
5
SCREW CAP 3/8 UNC * 1 1/4" BS-102279GS
...
6
ROTOR FAN SINCRO BS-102073GS
...
7
ROTOR ASSEMBLY .2 BS-102535GS
...
8
ROTOR BOLT 200MM M8-1.25*15MM+5/16UNF*9/16" BS-102039GS
...
9
WASHER FLAT M8 & 5/16" BS-~NSP
...
10
NUT NYLOCK M8-1.25 TYPE T BS-~NSP
...
11
KIT-CAPACITOR DIODE & VAR BS-B4916GS
...
12
ROTOR BEARING BS-102038GS
...
13
STUD M8*30MM BS-102131GS
...
14
STATOR ASSEMBLY ER4.2 BS-102534GS
...
15
CAPACITOR CLIP EP/EK SERIES BS-~NSP
...
16
CAPACITOR 31.5UF BS-102219GS
...
17
END PANEL BLANK ALTERNATOR BS-102407GS
...
18
END CAP PLASTIC (OUTLET PANEL) BS-102085GS
...
19
SOCKET OUTLET 16A 230V BS-102418GS
...
20
SOCKET OUTLET 32A 115V BS-102406GS
...
21
CIRCUIT BREAKER 30A BS-102289GS
...
22
CIRCUIT BREAKER 15A BS-102133GS
...
23
SWITCH VOLTAGE CHANGE-OVER BS-102404GS
...
24
OUTLET PANEL BLANK ER4.2 UKDV BS-102796GS
...
25
OUTLET PANEL COMPLETE ER 4.2 UKDV BS-102795GS
...
26
ALTERNATOR SINCRO ER4.2 UKSVFL BS-102730GS

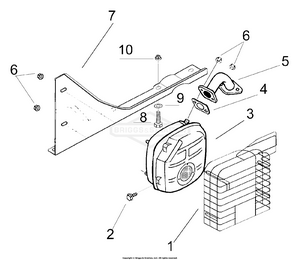

Exhaust And Fittings

...
...
1
GUARD MUFFLER BS-103302GS
...
2
SCREW TAPTITE M6*12 BS-710023
...
3
MUFFLER BS-103303GS
...
4
GASKET EXHAUST BS-710250
...
5
MANIFOLD, EXHAUST BS-103306GS
...
6
NUT FLANGE M8 BS-710090
...
7
BRACKET, MUFFLER BS-103300GS
...
8
SCREW SET M8-1.25 X40MM BS-102264GS
...
9
WASHER FLAT M8&5/16 BS-~NSP
...
10
NUT, M8 FLANGE SERRATED BS-67989GS

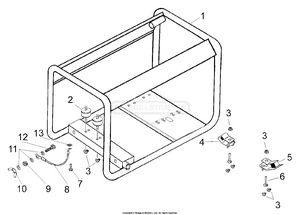

Frame And Fittings

...
...
1
CRADLE, PROCLASSIC 5000 BS-103216GS
...
2
VIBRATION MOUNT 32MM DIAMETER BS-102034GS
...
3
NUT FLANGE M8-1.25 BS-~NSP
...
4
VIBRATION MOUNT 45 DEGREE SOFT BS-102033GS
...
5
VIBRATION MOUNT 45 DEGREE HARD BS-102031GS
...
6
SCREW SET HEXHD M8-1.25*35MM BS-~NSP
...
7
SCREW SET M8-1.25X12 PLATED BS-~NSP
...
8
LEAD EARTH ASSY 145MM BS-102050GS
...
9
NUT FULL M6-1.0 BS-~NSP
...
10
NUT WING M6-1.0 BS-102036GS
...
11
WASHER SHAKEPROOF 1/4" & M6 INT BS-~NSP
...
12
SCREW SET M6-1.0X25MM PLATED BS-~NSP
...
13
WASHER SHAKEPROOF M8 INT BS-~NSP
...
--
DECAL WARNING READ MANUAL (Not Illustrated) BS-102077GS
...
--
DECAL ELECTRICAL HAZARD (Not Illustrated) BS-102076GS
...
--
DECAL CAUTION HOT (Not Illustrated) BS-102041GS
...
--
DECAL, PROPLUS 4500 (Not Illustrated) BS-103182GS
...
--
DECAL GND (Not Illustrated) BS-102048GS
...
--
OWNERS MANUAL EURO-25L PORTABLE GENERATOR (Not Illustrated) BS-MS5796

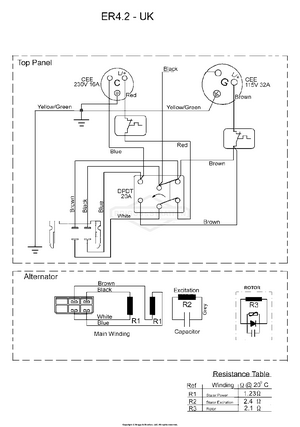

Wiring Diagram

...

No Parts Available for this Schematic

...
...
...
