020226-0 Briggs and Stratton Pressure Washer 2,650 PSI

Model: 020226-0

Save
 Part Not Listed?Part Not Listed?
product name

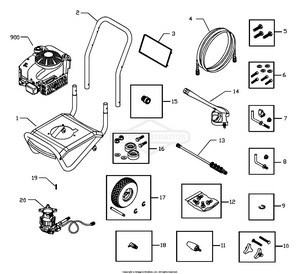

Main Unit (195108)

...
...
1
BASE BS-192646GS
...
2
HANDLE BS-B194718GS
...
3
ASSY, Billboard/Decals BS-195098GS
...
4
HOSE-PRESSURE BS-206192GS
...
5
KIT, Engine Mounting Hardware BS-192133GS
...
6
KIT, Pump Mounting Hardware BS-192131GS
...
7
KIT, HRDWR, HTSHLD, SRV BS-194262GS
...
8
KIT, Hook, Base BS-192309GS
...
9
E-RING BS-703977
...
10
KIT, Handle Connector BS-B2203GS
...
11
NOZZLE, Turbo BS-194236CGS
...
12
KIT, Spray Tips BS-B5646GS
...
13
ASSY, Extension w/ Nozzle Holder BS-192199GS
...
14
GUN BS-B3263AGS
...
15
KIT,QC,METRIC BS-312981GS
...
16
KIT, Vibration Mount BS-192310GS
...
17
KIT, Wheel BS-192317GS
...
18
VALVE, Thermal Relief BS-208673GS
...
19
KEY BS-23139DGS
...
20
Assy, Pump, Complete (see "Pump") BS-206376GS
...
900
ENGINE BS-~NSP
...
TAG-WARNING Not illustrated BS-705752
...
MANUAL, Owner's Not illustrated BS-195104GS
...
BOTTLE, Oil Not illustrated BS-100005
...
MANUAL, Engine Not illustrated BS-MS5578

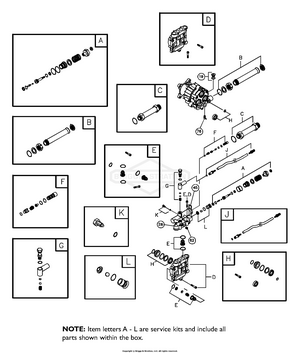

Pump (197573)

...
...
19
CAP, Oil BS-190571GS
...
28
MANIFOLD BS-190627GS
...
45
PIN BS-190578GS
...
62
CAP BS-190581GS
...
76
VALVE, Thermal Relief BS-208673GS
...
77
OIL BOTTLE (not shown) BS-190585GS
...
A
KIT, UNLOADER Includes all parts shown within the box BS-190594GS
...
B
KIT, WATER INLET,ANODIZED Includes all parts shown within the box BS-190588GS
...
C
KIT, OUTLET,ANODIZED Includes all parts shown within the box BS-190589GS
...
D
KIT, HEAD BRASS Includes all parts shown within the box BS-193808GS
...
E
KIT, CHECK VALVES Includes all parts shown within the box BS-193806GS
...
F
KIT, INLET CHECK Includes all parts shown within the box BS-190592GS
...
G
KIT, CHEMICAL INJECTION Includes all parts shown within the box BS-190593GS
...
H
KIT, SEAL SET Includes all parts shown within the box BS-193807GS
...
J
KIT, CHEMICAL HOSE Includes all parts shown within the box BS-189971GS
...
K
KIT, PIPE FITTING Includes all parts shown within the box BS-193971GS
...
L
KIT, UNLOADER SEAT Includes all parts shown within the box BS-193972GS
...
...
...
