Sta-Rite S7M120 & S7M150
Model: Cartridge Filter System:3, S7M120 & S8M150 Add to My Gear

Sta-Rite S7M120 & S7M150


1. Pressure Gauge, Pentair StaRite, 1/4"mpt, 0-60psi,Back Mount 33600-0023T
2. Pressure Gauge Screen, Pentair StaRite WC8-72D
3. Air Relief Assy, Pentair PacFab Triton II 154687
4. Nipple, Pentair StaRite System 3, Brass 35202-0959
5. Adapter, Pentair StaRite System 3, Bushing 24900-0504
6. O-Ring, Buna-N, 15/16" ID, 3/16" Cross Section, Generic 90-423-5317
7. Cartridge, Pentair StaRite System 3 S7M120, 200 sqft, Outer 25022-0201S
7. Cartridge, Pentair StaRite System 3 S8M150, 259 sqft, Outer 25022-0203S
7. Cartridge, Pentair StaRite System 3 S7M400, 264 sqft, Outer 25022-0224S
7. Cartridge, Pentair StaRite System 3 S8M500, 291 sqft, Outer 25022-0225S
8. Cartridge, Pentair StaRite System 3 S7M120, 100 sqft, Inner 25021-0200S
8. Cartridge, Pentair StaRite System 3 S8M150, 191 sqft, Inner 25021-0202S
8. Cartridge, Pentair StaRite System 3 S8M500, 209 sqft, Inner 25021-0224S
8. Cartridge, Pentair StaRite System 3 S7M400, 136 sqft, Inner 25021-0223S

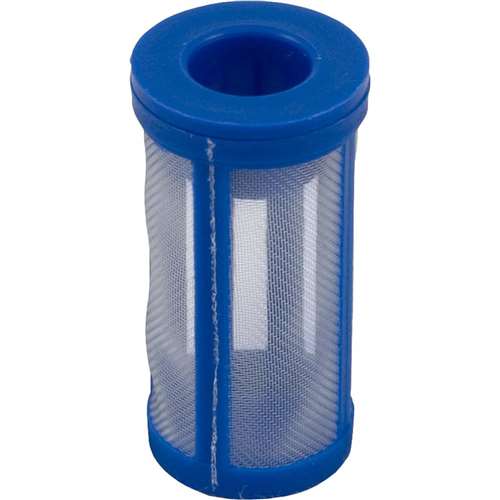

9. Air Bleed Filter, Pentair StaRite System 3 25021-0004
10. Bleed Tube, Pentair StaRite System 3 25021-0003
11. Baffle/Bulkhead Assy, Pentair StaRite System 3 25021-0101
12. O-Ring, Buna-N, 2-1/8" ID, 1/8" Cross Section, Generic 90-423-5227
13. O-Ring, Buna-N, 1-5/8" ID, 1/8" Cross Section, Generic 90-423-5223
14. Bulkhead/Elbow Assy, Pentair StaRite System 3 25021-0100
15. O-Ring, Buna-N, 3-3/4" ID, 3/16" Cross Section, Generic 90-423-5343
16. O-Ring, Buna-N, 2-3/8" ID, 3/16" Cross Section, Generic 90-423-5332
17. Adapter, Pentair StaRite System 2, System 3 24900-0509
18. Drain Plug, Pentair StaRite System 3, 1-1/2", w/O-Ring 27001-0022
19. Drain Plug, Pentair StaRite System 3 24900-0503
20. Retaining Nut, Pentair StaRite System 3 24752-0050
21. Clamp Assy, Pentair StaRite System 3 24850-0200
21a. Bolt, Pentair StaRite System 3, Clamp Assy 24850-0010
22. Tank Body, Pentair StaRite System 3, 21" 24850-0102S
22. Tank Body, Pentair StaRite System 3, 25" 24851-0103S
23. O-Ring, Pentair StaRite System 3 S7S50, 21" Tank Body, O-485 24850-0008
23. O-Ring, Pentair StaRite System 3 S8S70, 25" Tank Body, O-486 24850-0009
24. Tank Lid, Pentair StaRite System 3, 21" 24851-9000
24. Tank Lid, Pentair StaRite System 3, 25" 24851-9001
25. Pressure Gauge Assy, System 3, 1/4"mpt, 0-60psi, Back Mount 24850-0105
XX. Retaining Ring, Pentair StaRite System 3, Clamp 24850-0016
XX. Union Adapter, 2"s U11-196PS
XX. Union, Nut, 2" U11-200PS
XX. O-Ring, Buna-N, 2-5/8" ID, 1/8" Cross Section, Generic 90-423-5231
-xx. = Not shown on schematic.
