White Outdoor 21A-400-190 Roto Boss 530 (1997)

Model: 21A-400-190 Roto Boss 530 (1997)

Save Part Not Listed?
product name

Engine, Wheel Ass'y, Belts And Pulleys

...
...
1
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
CABLE BRACKET MOUNTING MTD-786-0107
...
4
Torx Mach. AB-Tap Scr. 1/4 x .6" Lg. MTD-710-1017
...
5
BELT COVER BOLT MTD-738-0899
...
6
BRACKET COVER-SHIFBLACK MTD-786-0117-0637
...
7
BELT COVER (OYSTER GRAY) MTD-786-0100-0662
...
8
R-Wash. .218 I.D. x .5" O.D. MTD-736-0142
...
9
Hex Cap Nut 1/4-28 Thd. MTD-712-0392
...
10
Flat Pulley 8" O.D. MTD-756-0634
...
11
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
12
Hex Flange L-Nut 3/8-16 Thd. MTD-712-0379
...
13
V-Belt MTD-954-0438
...
14
BELT KEEPER BRACKET (POWDER BLACK) MTD-686-0031A-0637
...
15
L-Wash. 5/16" I.D. MTD-936-0119
...
16
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
17
Shld. Nut MTD-738-0876A
...
18
Hex Jam L-Nut 3/8-16 Thd. MTD-712-0266A
...
19
Fl-Idler w/Flanges MTD-756-0405
...
20
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
21
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
22
Fl-Wash. 3/8" I.D. x 1" O.D. MTD-736-0258
...
23
Outer Engine Pulley Half MTD-756-0972
...
24
Inner Engine Pulley Half MTD-756-0971
...
25
IDLER BRACKET MTD-786-0080-0637
...
26
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-0723
...
27
Clutch Cable MTD-946-0916
...
28
Air Valve MTD-934-0255
...
29
Hairpin Clip MTD-714-0104
...
30
Clevis Pin MTD-711-1017
...
31
RIM NLA MTD-634-0108-0662
...
32
WHEEL ASSEMBLY (16 x 4) (RH) *CHOOSE COLOR WHEN ORDERING* MTD-634-0106
...
32
WHEEL ASSEMBLY (16 x 4) (LH) *CHOOSE COLOR WHEN ORDERING* MTD-634-0107
...
32
Tire Only MTD-734-0808A
...
34
COUNTER WEIGHT MTD-919-0009A
...
35
Hex L-Wash. TT-Tap Scr. 3/8-16 Thd. MTD-710-1007
...
36
Hex Bolt 5/16-18 x 1" Lg. (Gr. 5) MTD-710-0376
...
37
HEX FLANGE NUT MTD-712-3004A
...
38
Engine MTD-NA
...
41
TINE SHIELD BRACKET ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-686-0043A
...
42
Hex Bolt 5/16-18 x 7/8" Lg. MTD-710-3038

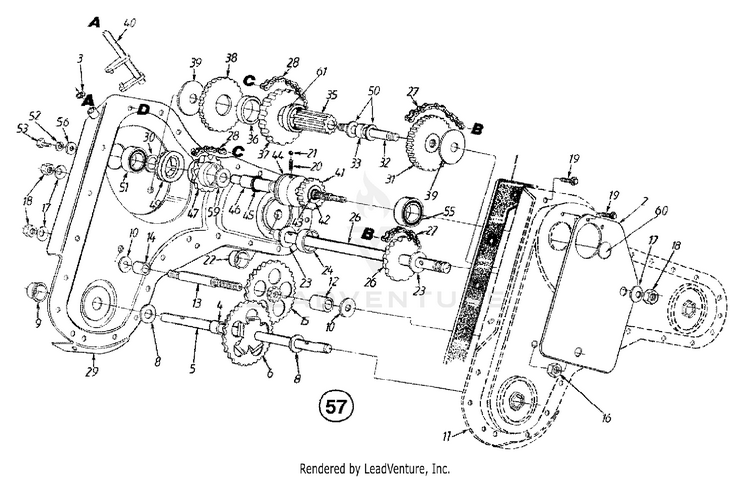

Gear Case Ass'y

...
...
1
CHAIN CASE GASKET MTD-721P0295
...
2
Reinforcement Plate MTD-786-0086-0637
...
3
Snap Ring MTD-716-0865
...
4
SPACER MTD-950-0938
...
5
KIT-SERVICE WHEEL SHAFT 611-0058 MTD-753-05577
...
6
Spur Gear 46T MTD-717-1458
...
8
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
9
Shaft Seal MTD-721-0379
...
10
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
11
GEAR CASE ASSEMBLY HALF (LH) MTD-986-0039-0637
...
12
SPACER MTD-750-0935
...
13
JACK SHAFT MTD-738-0885
...
14
SPACER MTD-950-0936
...
15
IDLER GEAR ASSEMBLY MTD-917-0004
...
16
Hex Patch L-Nut 7/16-20 Thd. MTD-712-3067
...
17
Bell-Wash. .45" I.D. x 1" O.D. MTD-736-0407
...
18
Hex Nut 7/16-20 Thd. MTD-712-0378
...
19
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0896
...
20
DETENT SHAFT SPRING MTD-932-05125
...
21
DETENT BALL .250 MTD-741-0862
...
22
Shaft Seal MTD-921-0378
...
23
Thrust Wash. 1.03" I.D. x 1.62" MTD-936-0163
...
24
Spacer 1" I.D. x 2" O.D. x .5" Thk. MTD-950-0570
...
26
TINE SHAFT ASSEMBLY W/18T MTD-611-0021A
...
27
Chain #50 5/8" Pitch x 52 Links - Endless MTD-913-0226
...
28
Chain - #41 1/2" Pitch x 30 Links - Endless MTD-713-0233
...
29
GEAR CASE HALF (RH) *CHOOSE COLOR WHEN ORDERING* MTD-686-0038
...
30
SPECIAL FLAT WASHER MTD-936-0541
...
31
GEAR SPROCKET ASSEMBLY MTD-917-0003
...
32
JACK SHAFT MTD-738-0884
...
33
SPACER MTD-750-0931
...
35
GEAR SPUR 10T MTD-917-1411
...
36
SPACER MTD-950-0930
...
37
SPROCKET MTD-713-0436
...
38
REVERSE GEAR 46T MTD-717-1405
...
39
Thrust Wash. .445" I.D. x 1.92" MTD-736-0518
...
40
SHIFTER ASSEMBLY MTD-618-0245B
...
41
Spur Gear 17T MTD-717-1409
...
42
FLAT WASHER .67X 1.174X .02 MTD-736-05031
...
43
Wire Ring MTD-732-0614
...
44
Clutch Collar MTD-718-0234
...
45
Retaining Ring .875" Shaft MTD-916-0235
...
46
Drive Shaft MTD-711-1087
...
47
Sprocket 11T MTD-713-0435
...
49
Spur Gear 16T MTD-717-1451A
...
50
Fl-Wash. 5/8" I.D. x 1" O.D. MTD-936-0336
...
51
Ball Bearing .669" I.D. MTD-941-0600
...
52
L-Wash. 1/4" I.D. MTD-936-0329
...
53
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
55
Ball Bearing MTD-941-0563
...
56
Fl-Wash. .281" I.D. x .875" O.D. MTD-736-0512
...
57
GEAR CASE KIT MTD-753-05328
...
?58
SPECIAL KEY MTD-918-0237
...
59
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
60
BUTTON PLUG MTD-726-0331
...
61
SPECIAL SPACER MTD-950-0987

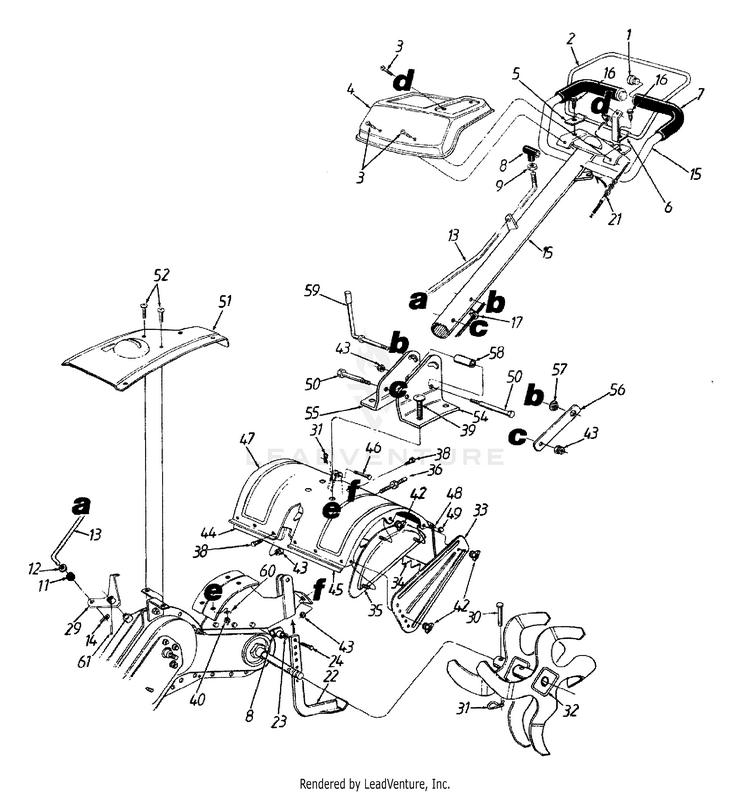

Handle, Tine Shield, Blades And Labels

...
...
1
Vinyl End Plug MTD-735-0246A
...
2
CLUTCH CONTROL ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-647-0014
...
3
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
4
HANDLE COVER OYSTER MTD-786-0131-0662
...
5
RETAINING BRACKET MTD-786-0098-0637
...
6
RETAINING BRACKET MTD-786-0118-0637
...
7
Grip MTD-720-0278A
...
8
Knob MTD-720-0210A
...
9
Hex Jam Nut 3/8-16 Thd. MTD-912-3008
...
11
Rubber Washer MTD-735-0127
...
12
Fl-Wash. .344" I.D. x .6" O.D. MTD-736-0204
...
13
GEAR SHIFT ROD MTD-747-0902
...
14
Hairpin Clip MTD-714-0104
...
15
HANDLE ASSEMBLY NLA MTD-649-0023-0648
...
16
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
17
CABLE CLIP MTD-726-0330
...
21
Clutch Cable MTD-946-0916
...
22
Depth Bar MTD-786-0120-0637
...
23
Fl-Wash. 3/8" I.D. x 5/8" O.D. MTD-936-0117
...
24
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
29
CRANK SHIFT ASSEMBLY MTD-686-0095
...
30
Clevis Pin MTD-711-0415
...
31
Inter. Cotter Pin MTD-714-0149B
...
32
Tine Ass'y. - L.H. MTD-642-0015-0637
...
32
Tine Ass'y. - R.H. MTD-642-0016-0637
...
33
Side Shield MTD-786-0090A-0648
...
34
Rear Tine Shield MTD-786-0113
...
35
End Cover Ass'y. MTD-686-0044B-0648
...
36
Hex Bolt 5/16-18 x 1" Lg. MTD-938-0849
...
38
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0376
...
39
Carriage Bolt 3/8-16 x 1" Lg. MTD-710-3097
...
40
Hex Nut 3/8-16 Thd. MTD-712-0798
...
42
Wing Nut 5/16-18 Thd. MTD-712-0421
...
43
HEX FLANGE NUT MTD-712-3004A
...
44
TINE SHIELD BRACKET (RH) MTD-786-0076-0637
...
45
TINE SHIELD BRACKET (LH) MTD-786-0077-0637
...
46
Clevis Pin MTD-711-0415
...
47
TINE SHIELD NLA MTD-786-0085-0648
...
48
Tiller Flap Rod MTD-747-0432
...
49
Cap Speed Nut MTD-926-0106
...
50
Hex Bolt 5/16-18 x 3" Lg. MTD-710-0189
...
51
SHIFT COVER *CHOOSE COLOR WHEN ORDERING* MTD-786-0101B
...
52
Torx Mach. AB-Tap Scr. 1/4 x .6" MTD-710-1017
...
54
HANDLE BRACKET (LH) MTD-786-0109
...
55
HANDLE BRACKET (RH) MTD-786-0108
...
56
Hex Nut Retainer Brkt. MTD-784-0191
...
57
Hex Flange Nut 3/8-24 Thd. MTD-712-0379
...
58
Spacer .322 Dia. MTD-750-0885A
...
59
Handle Adjustment Crank MTD-784-0190
...
60
L-Wash. 3/8" I.D. MTD-736-0169
...
61
Spiral Pin 1" Lg. MTD-715-0120
...
xx
LABEL - ROTO BOSS "530" - SIDE OF ENGINE NLA MTD-777-4732
...
xx
LABEL - HANDLE PANEL NLA MTD-777-4730
...
xx
Label - Belt Guard NLA MTD-777-4731
