White Outdoor 190-181-190 Triple Bagger (2003)

Model: 190-181-190 Triple Bagger (2003)

Save Part Not Listed?
product name

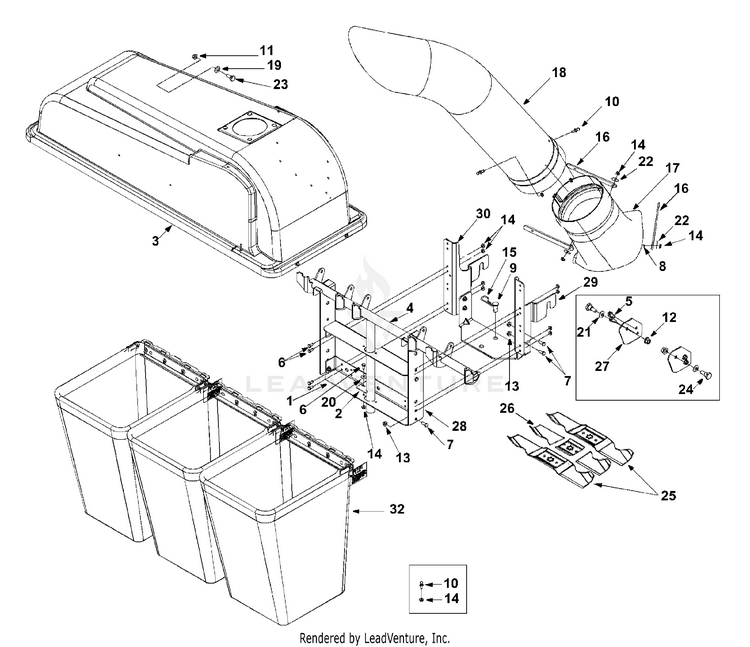

General Assembly

...
...
1
BRACKET, CATCHER MTG. NLA MTD-17200A
...
2
Adapter Bracket: Support Tube MTD-17247-0637
...
3
COVER ASSEMBLY- NLA MTD-664-04018
...
4
GRASSCATCHER SUPPORT ASSEMBLY (POWDER BLACK) MTD-689-00002-0637
...
5
TT Screw 3/8-16 x 0.75 MTD-710-0623
...
6
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Hex Screw 1/4-20 x 0.75 MTD-710-3015
...
9
Clevis Pin MTD-711-0309A
...
10
Grasscatcher Pin MTD-911-04069
...
11
Flange Lock Nut 3/8-16 MTD-912-0431
...
12
Lock Nut 7/16-20 MTD-712-0459
...
13
HEX FLANGE NUT MTD-712-3004A
...
14
Lock Nut 1/4-20 MTD-912-3027
...
15
Hairpin Clip MTD-714-0117
...
16
Chute Strap MTD-723-04008A
...
17
Discharge Chute Elbow, 46" Deck MTD-931-04159A
...
18
Catcher Tube MTD-731-0926B
...
19
Bell Washer MTD-736-0253
...
20
SPRING WASHER BELL MTD-736-0270
...
21
Bell Washer MTD-736-0407
...
22
Flat Washer MTD-736-3092
...
23
Shoulder Screw MTD-738-0380
...
24
Shoulder Screw MTD-738-1020
...
25
46" BLADE (STAR) MTD-742-0611A-0637
...
26
Blade 14.88" MTD-942-0645
...
27
SUPPORT BRACKET POWDER BLK MTD-983-04138
...
28
Catcher Support Bracket MTD-783-0601-0637
...
29
Catcher Support Bracket RH MTD-783-0673B-0637
...
30
Catcher Support Bracket LH MTD-783-0764B-0637
...
31
Cross Bracket: Support MTD-783-0765-0637
...
32
Bag Assembly: Triple Bagger MTD-964-0251
