Troy-Bilt TB125QS 41ABESPG766 Electric Blower

Model: TB125QS 41ABESPG766, 41ABESPG766 TB125QS

Save
 Part Not Listed?Part Not Listed?
product name

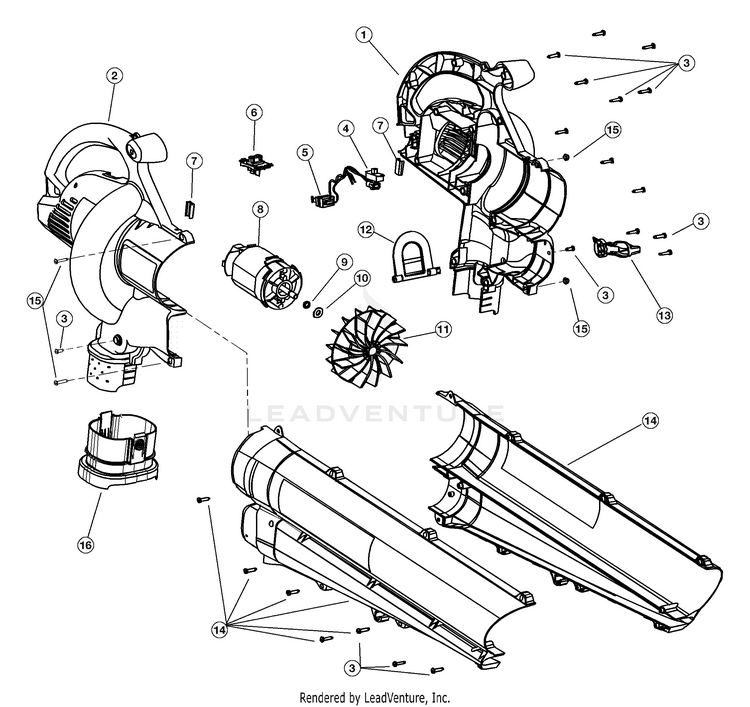

Electric Blower/Vac 120 Volt

...
...
1
Left Motor Housing MTD-753-04752
...
2
Right Motor Housing MTD-753-04751
...
3
Housing Screw MTD-791-181482
...
4
Switch Assembly MTD-791-182546
...
5
Power Connection Wire Assembly MTD-791-182547
...
6
Switch Lever MTD-791-180509
...
7
Rubber Cushion MTD-791-180503
...
8
Motor Assembly MTD-791-182548
...
9
Spacer MTD-791-182549
...
10
Washer MTD-791-180505
...
11
Impeller MTD-791-182550
...
12
Mode Control Flapper MTD-791-182410
...
13
Mode Control Lever (includes 3) MTD-791-00050
...
14
Blower/Vac Tube Assembly (includes 22) (includes 3) MTD-791-00051
...
15
Blower/Vac Tube Mounting Hardware MTD-791-182425
...
16
ADAPTER MTD-791-182417
...
xx
Cable Tie Not Shown MTD-791-612930
...
xx
Vacuum Bag Assembly (includes 19, Vacuum Bag & Cable Tie) (not shown) (includes 16, Vacuum Bag & Cable Tie); Not Shown MTD-753-04465
...
xx
Shoulder Harness Not Shown MTD-791-682075B
...
xx
Carbon Brush Set Not Shown MTD-791-182036
...
xx
Patio Head Not Shown MTD-753-04325
...
...
...
